| Place of Origin: | China, Jiangsu, Changzhou |
|---|---|
| Brand Name: | YUESEN |
| Certification: | ISO2000, RoHS, REACH |
| Model Number: | YDP3070-8 |
| Minimum Order Quantity: | 10kpcs |
| Price: | $0.2/pcs~$1/pcs |
| Packaging Details: | 600pcs/carton |
| Delivery Time: | 2-4 weeks |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1-1.5million/month |
| Size: | 30*70mm | Power: | 3W |
|---|---|---|---|
| Impedance: | 8ohm | Sound Pressure Level: | 80±3dB |
| Frequency Response: | F0-8kHz | Product Name: | Raw Frame Speakers |
| High Light: | car tweeter speaker,car woofer speaker |
||

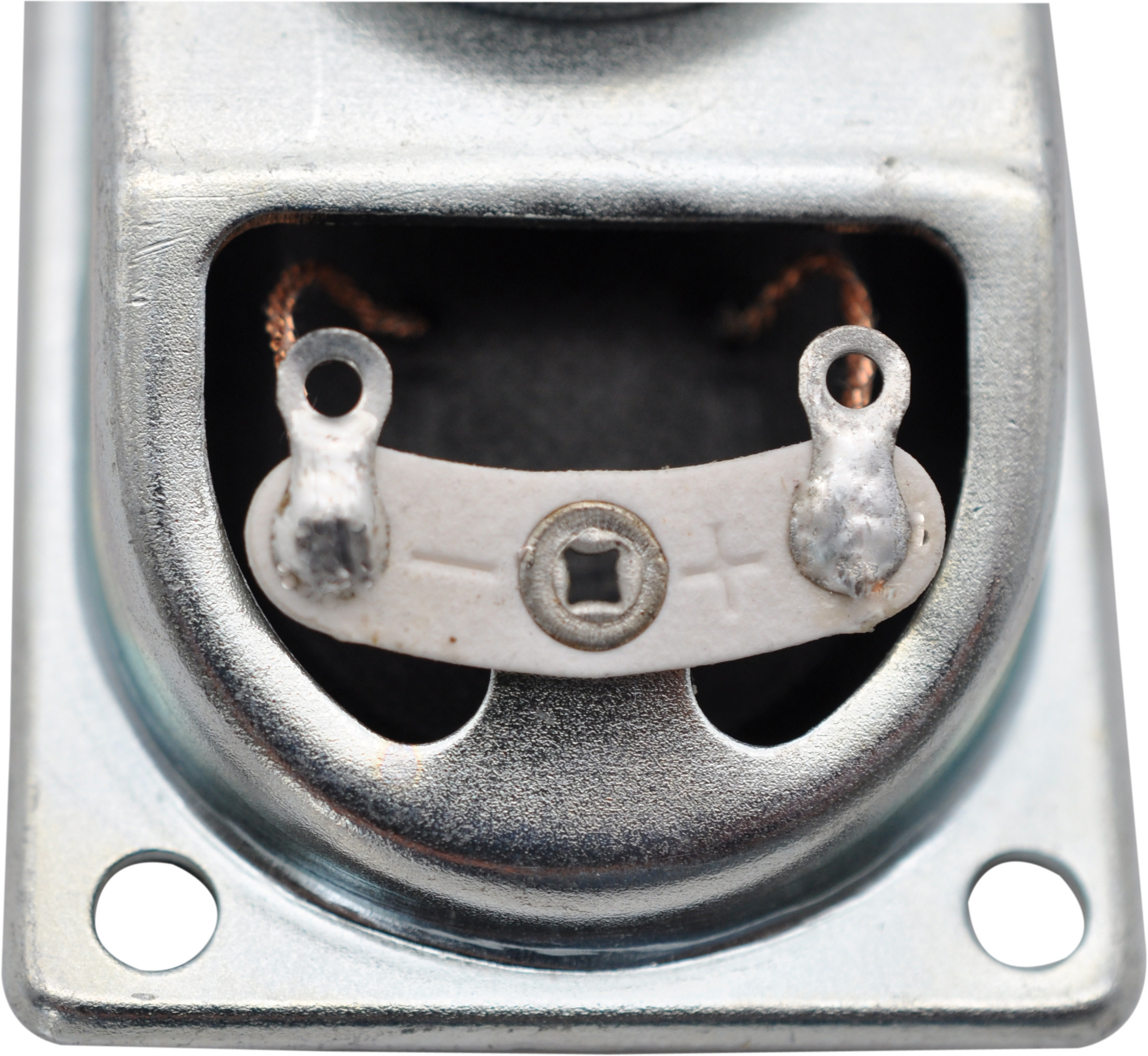

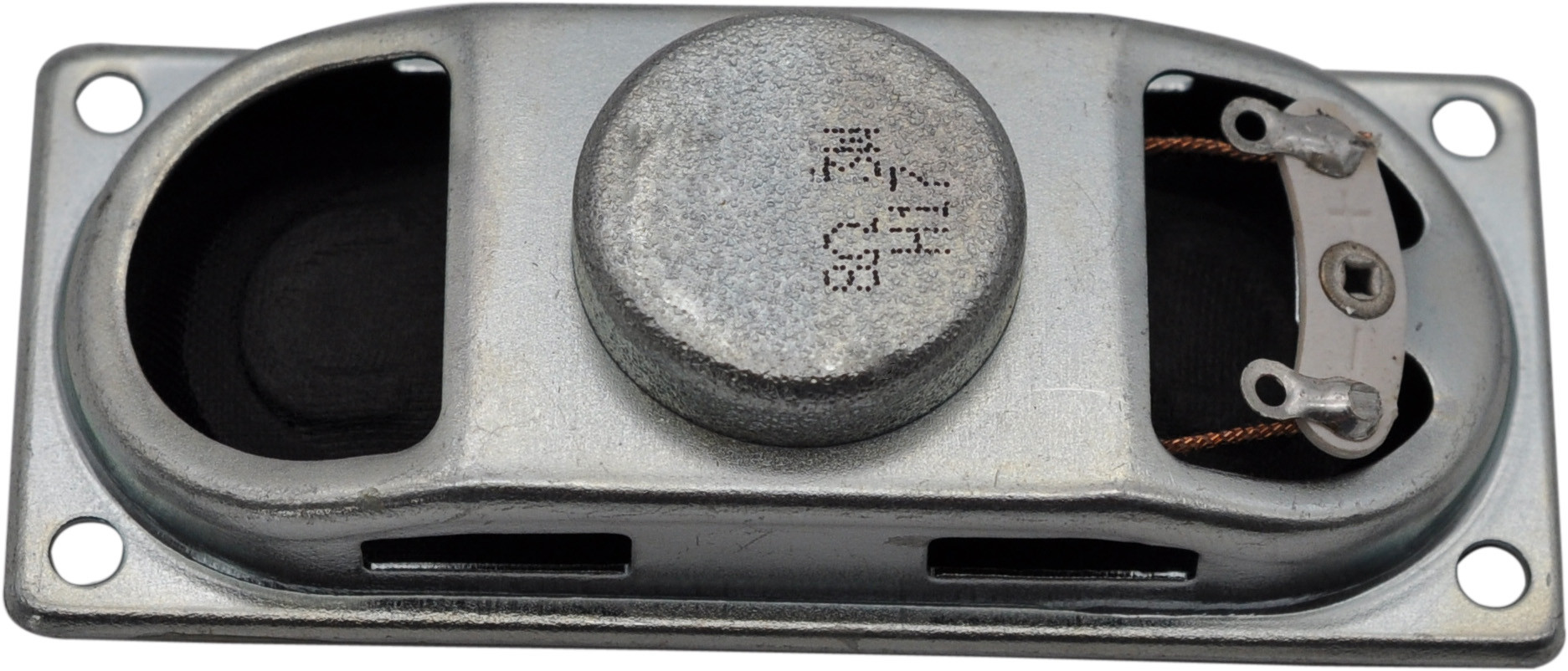

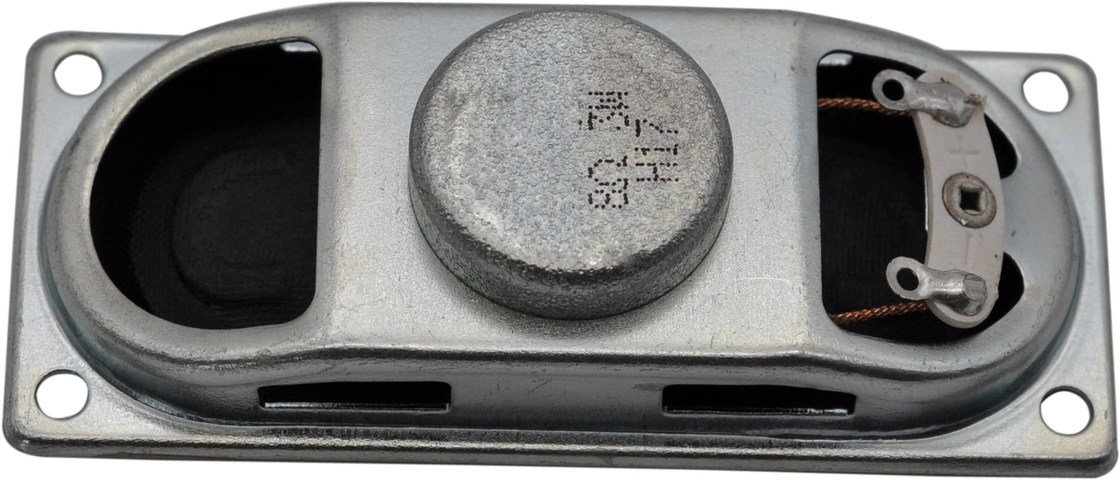

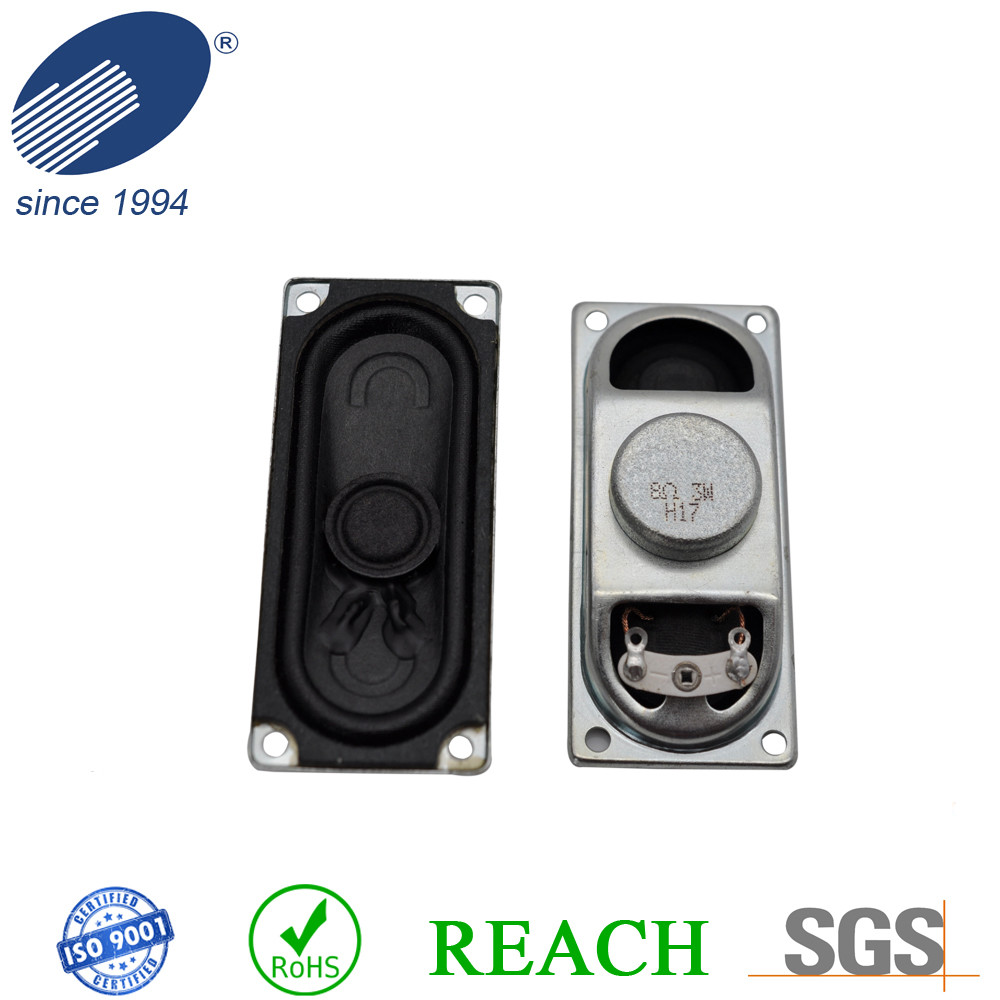

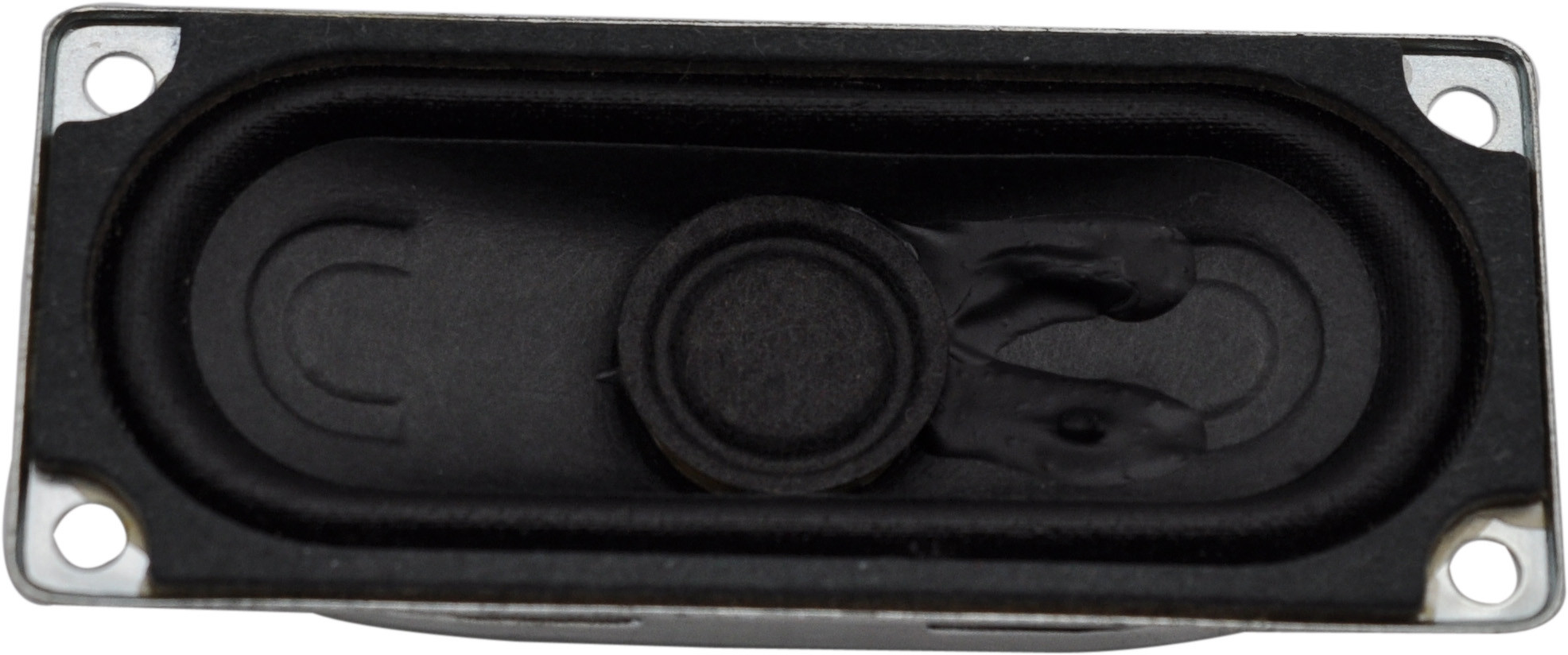

YDP3070-8, Raw Frame Speakers commonly used accessories, 3W, 8ohm
We are a high-tech enterprise which integrates research, design, production and sales. Our products are widely used for TV, Mobile devices such as notebook, GPS, mobile DVD and so on.
General Specifications:
| Dimensions | 30*70mm |
| Rated Input Power | 3W |
| Maximum Input Power | 5W |
| Sound Pressure Level | 80±3dB 1M/1W at 0.8, 1.0,1.5,2.0KHz |
| Impedance | 8Ω±15%(at 1.5kHz, 1V) |
| Frequency Response | F0~8kHz(-10dB) |
| Distortion | ≤7%Max |
| Operation | It shall be normal. Program source 3W |
| Noise | Must be normal. Sine wave 4.9V |
| Heat Test | Shall be normal after test. 55±2℃ 96 hours |
| Humidity Test | Shall be normal after test. 40±2℃ 90~95%RH 16 hours |
| Load Test |
Shall be normal after test. Input Power: 3W Duration: 100 hours |
| Magnet |
Ф12.5X2.0 NdFeB |
| Total Flux |
Max Well |
| Net Weight | 20.6±1.5g |
Drawing:
Product Processing:
