Place of Origin: | China |
---|---|
Brand Name: | Yuesonic |
Certification: | CE ,RoHS,REACH |
Model Number: | YD120-9 |
Minimum Order Quantity: | 2000pcs |
Price: | Basicly USD 1.5~3 |
Packaging Details: | Neutral packaging/ Customise |
Delivery Time: | 2~4weeks |
Payment Terms: | T/T, Western Union,Paypal |
Supply Ability: | 30000pcs per month |
Material: | Metal | SPL: | 88±3dB |
---|---|---|---|
Color: | Black | Plug: | Customize |
Function: | Music | Certification: | CE |
Waterproof: | Front Side Waterproof | ||
High Light: | car radio speakers,car woofer speaker |

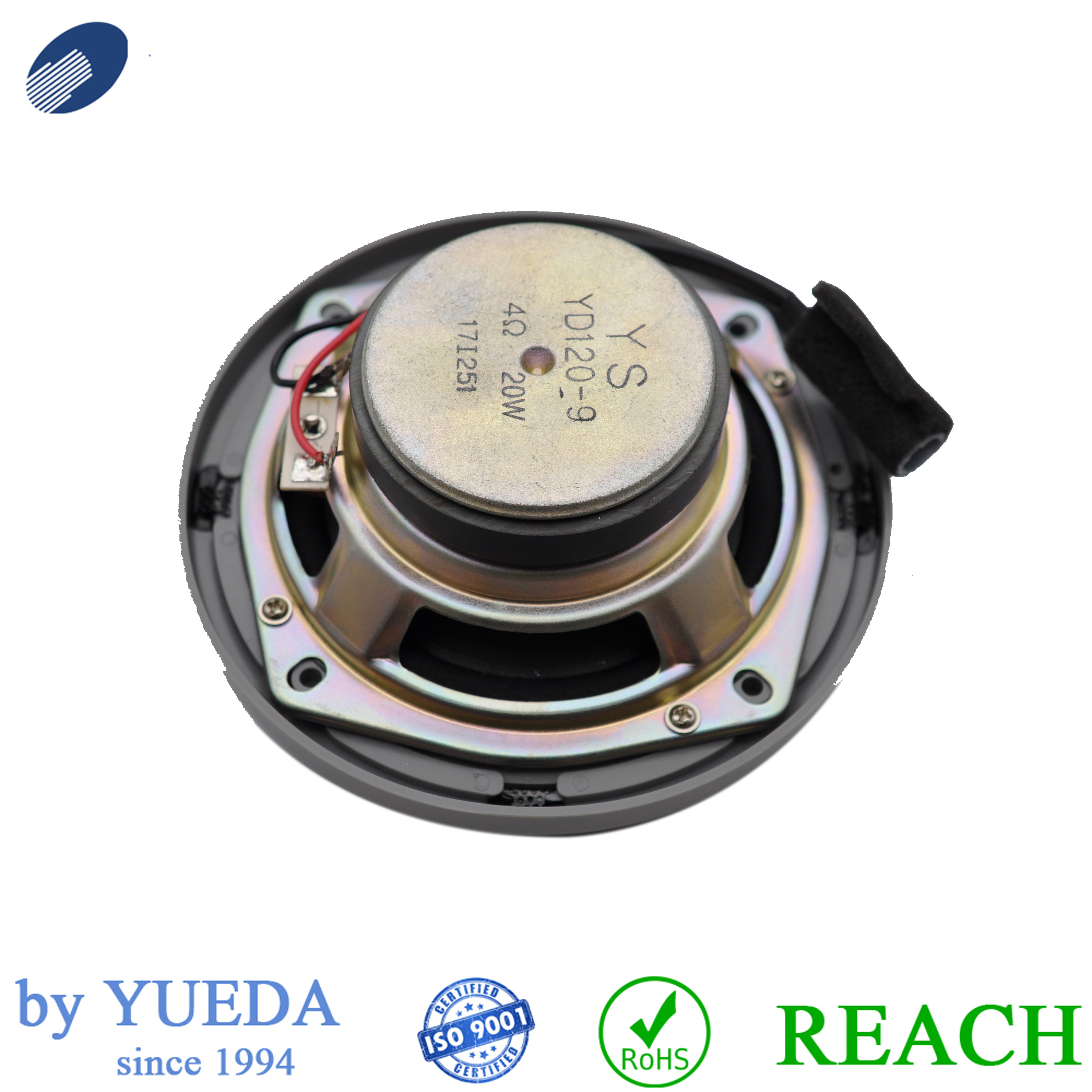

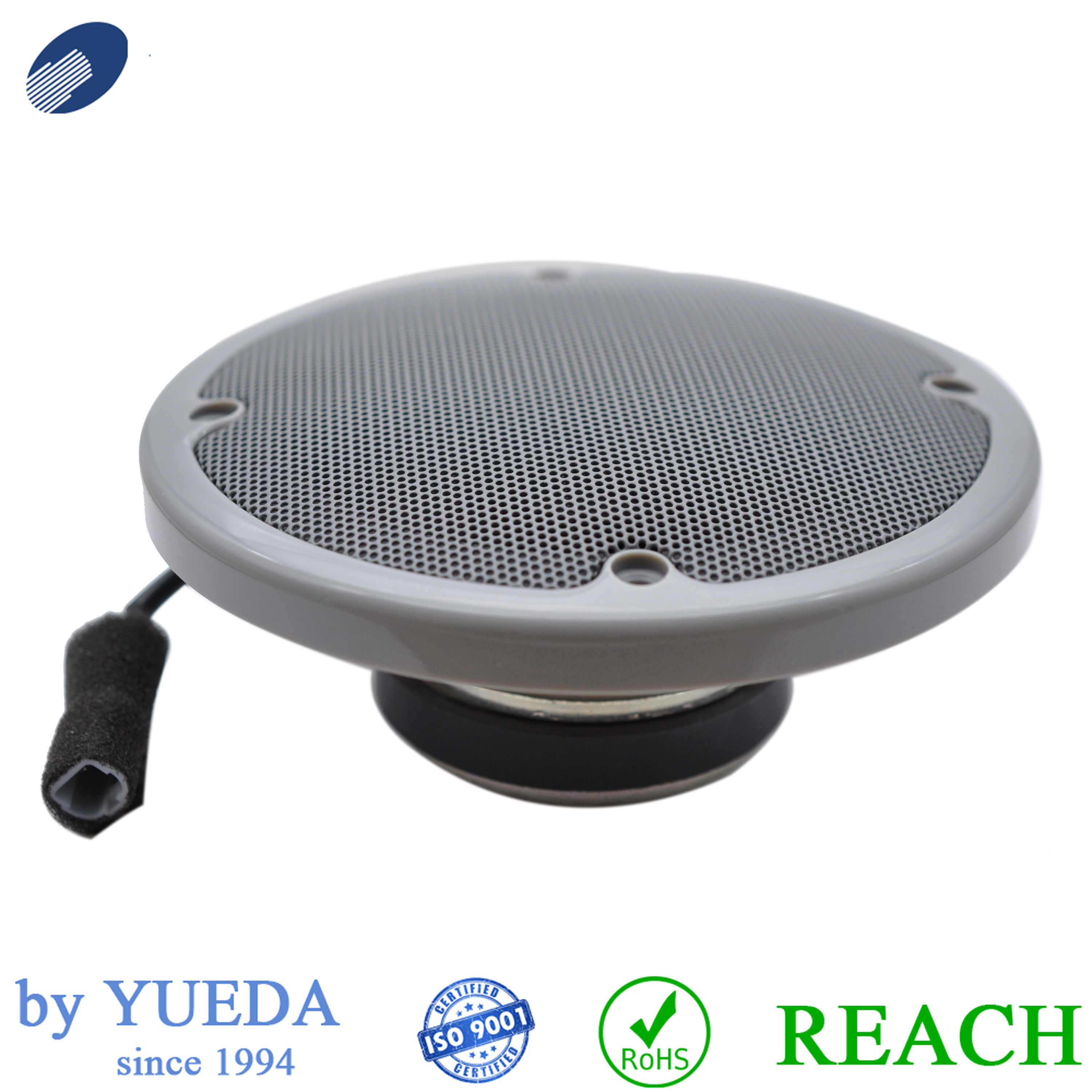

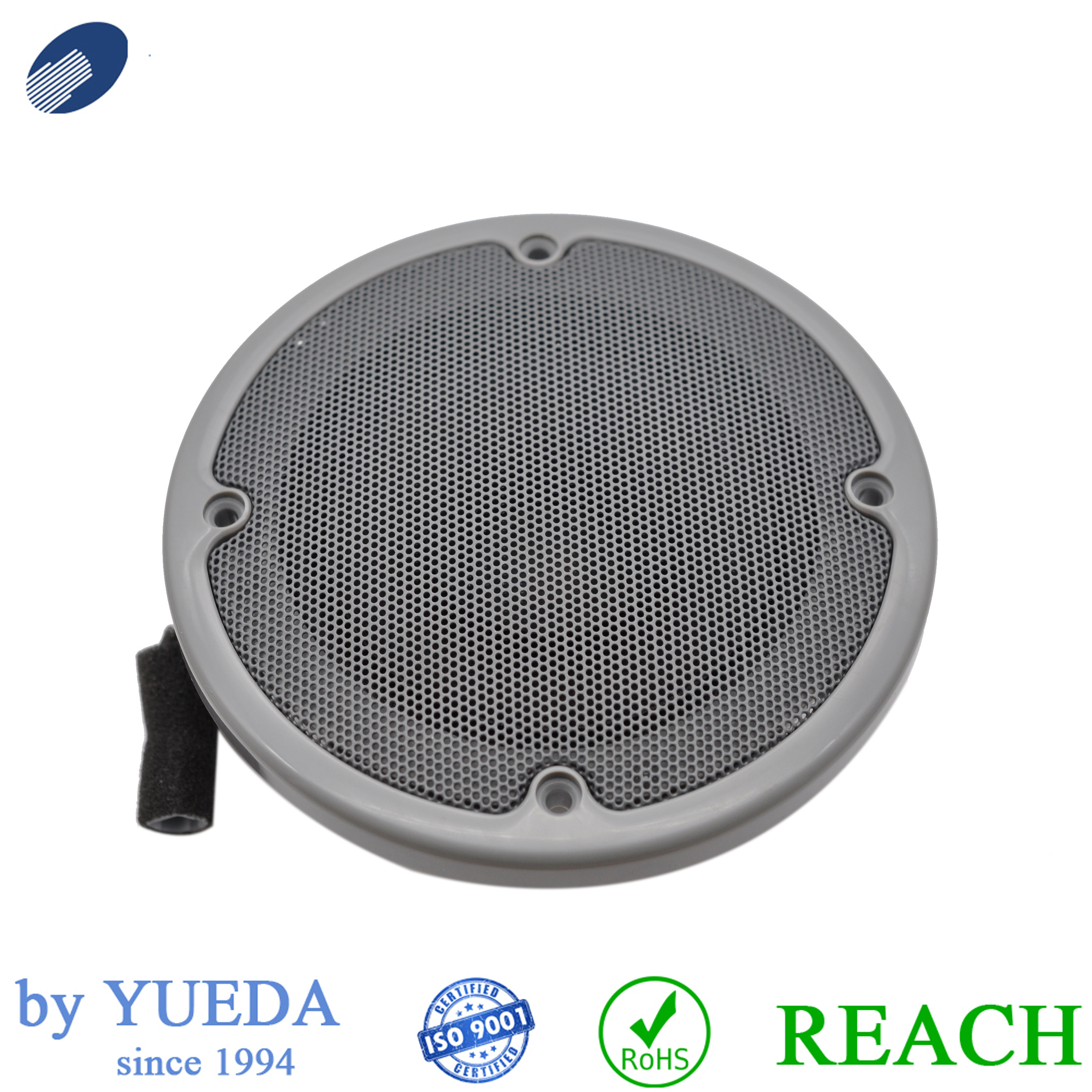

Round Shape 120mm 20W 4 Ohm Waterproof Speaker Subwoofer Used On Car And Amp Low Frequency
1. Specifications
Sound pressure | 88±3(A)AT 1m/1w |
VOICE COLL IMP | 4Ω |
RESONANT FREQ | 110±20% HZ |
Temperature | -25°C ~ 55°C |
RATED POWER | 20W |
MAX POWER | 40W |
Weight | 560g |
2. Description
NO. |
ITEM |
SPECIFICATION |
TESTING CONDITION |
1 |
NOMINAL SIZE |
φ120MM | |
2 |
VOICE COLL IMP |
4Ohm ±15% | |
3 |
RESONANT FREQ |
fo 110±20% HZ | |
4 |
OUTPUT S.P.L |
88±3dB | AT 1m/1w MEASUREMENT |
5 |
FREQ RESPONSE |
fo~ 4K Hz -10dB | -10dB |
6 |
RATED POWER |
20W | |
7 |
MAX POWER |
40W | |
8 |
DISTORTION |
≤ 7 %Max | |
9 |
OPEARTION |
MUST BE NORMAL |
PROGRAM SOURCE 0.1 W |
10 |
NOISE |
MUST BE NORMAL |
SIN WAVE 3.1 V |
11 |
HEAT TEST |
AFTER TEST MEET ITEM 8,9 | 55± 2℃ 16 HOURS |
12 |
HUMIDITY TEST |
AFTER TEST MEET ITEM 8,9 |
40±2℃ 90~95%RH 48 HOURS |
13 |
LOAD TEST |
AFTER TEST MEET ITEM 8,9 | 15W 100 HOURS |
14 |
MAGNET |
Ф70XФ32X10 MATERIAL SIZE |
|
15 |
TOTAL FLUX |
MAX WELL | |
16 |
FLUX DENSITY |
GAUSS | |
17 |
POLARIZATION |
When a positive DC current is applied to the terminal marked(+),diaphragm shall move forward |
|
18 |
NET WEIGHT |
560g |
3. Applications
Speakers are typically housed in a speaker enclosure or speaker cabinet which is often a rectangular square box made of several forms of wood, or sometimes plastic. The enclosure's materials and design play an important role in the quality of the sound. The enclosure generally must be as stiff and non-resonant as practically possible. Where high fidelity reproduction of sound is required, multiple loudspeaker transducers are often mounted in the same enclosure, each reproducing a part of the audible frequency range (picture at right). In this case the individual speakers are referred to as "drivers" and the entire unit is called a loudspeaker. Drivers made for reproducing high audio frequencies are called tweeters, those for middle frequencies are called mid-range drivers, and those for low frequencies are called woofers. Extremely low frequencies (16Hz-~100Hz) may be reproduced by detached subwoofers. Smaller loudspeakers are found in devices such as radios, televisions, portable audio players, computers, and electronic musical instruments. Larger loudspeaker systems are used for music, sound reinforcement in theatres and concert halls, and in public address systems.
4. Competitive Advantage
5. Information
Place of Origin: | China |
Brand Name: | Yuesonic |
Certification: | CE/RoHS/SGS |
Model Number: | YD78-1N |
6. Custom properties
Product Name: | Speaker | Application: | Outdoor |
Weight: | 257g | Sound: | HIFI |
Material: | Metal | Power: | 15W |
Standard: | CE/ROHS/SGS | Type: | Line array |
7. Product commercial terms
Minimum Order Quantity: | 2000pcs |
Price: | negotiation |
Packaging Details: | T/T or western Union |
Delivery Time: | 3,0000pcs per month |
Payment Terms: | 14~28 working days after received your payment |
Supply Ability: | Packed in box firstly,and then reinforced with neutral packaging for outer packing |
