|Place of Origin:||CHINA|
|Minimum Order Quantity:||40 PCs|
|Packaging Details:||Individual neutral box, 40 pcs per carton|
|Delivery Time:||2-4 weeks|
|Payment Terms:||L/C, T/T, D/P, Western Union|
|Supply Ability:||5000 Pcs/ Month|
|MATERIAL:||Reinforced Nylon||VOLTAGE:||12-48 V|
|OUTPUT:||107 DB||CURRENT:||MAX 0.6A|
|SIZE:||103.5*40.5*71 Mm||TYPE:||Car Backup Alarm|
autozone backup alarm,
vehicle reverse beeping alarm

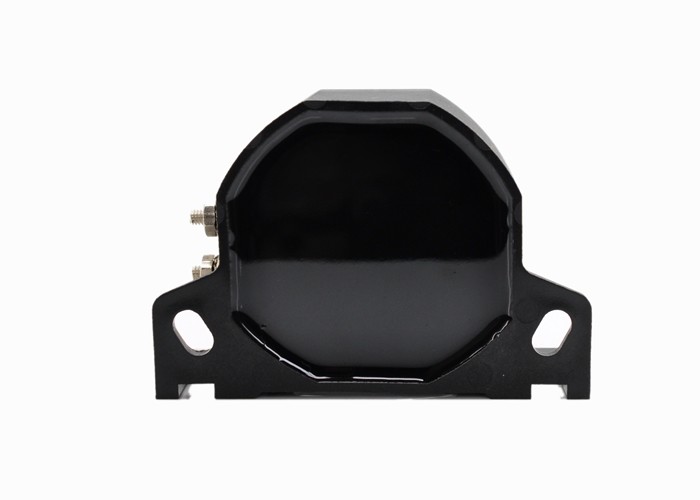

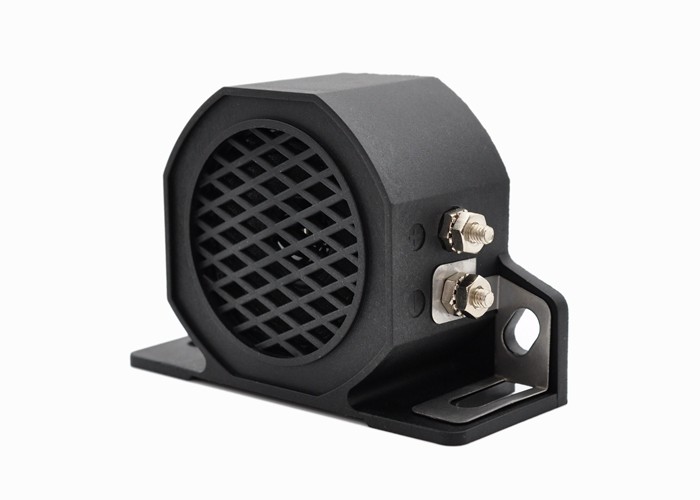

ground clip multi voltage 12V to 48V 107dB nylon housing car back-up alarm
|Output level||107dB ± 4dB at 1.2M|
|Current drain||less than 0.6A|
|temperature range||-40 to 85 degree C|
|Frequency||1400Hz ± 10%|
|Duty cycle||0.85 pulse per second 50% ON 50% OFF|
|weight||320g ± 10%|
Bolt backup alarm externally to the rear of the vehicle in suitable location, where possible in a sheltered area.
For the best sound projection do not obstruct speaker grill.
Make sure the speaker is facing backwards.
Ensure theat cable ties are used to keep the cablesruns secure and tidy.
The positive connection on the alarm will be connected to the prefered manufactures pickup point for the reverse feed.
The negstive connection on the alarm will be connected to the prefered manufactures pickup point for the earth feed.
Always follow manufacturer guidelines and wiring diagram, when connecting to vehicles
More information about the alarm:
Alarm drawing, sizes in mm
alarm production line, with operation instruction for all positions
Alarm in production test, to have a better quality
Alarm Lab tests, including general specs tests, enviromental tests, reliabity tests, to make sure alarms well designed, will work well as we design it.
feel free to let me know if you want to know more about our products and factory.
