| Place of Origin: | CHINA |
|---|---|
| Brand Name: | YUESONIC |
| Certification: | CE |
| Model Number: | YS-B15WH |
| Minimum Order Quantity: | 100 PCs |
| Price: | USD5-USD 10/pc |
| Packaging Details: | Individual neutral box, 100 pcs per carton |
| Delivery Time: | 2-4 weeks |
| Payment Terms: | L/C, T/T, D/P, Western Union |
| Supply Ability: | 5000 Pcs/ Month |
| MATERIAL: | ABS | VOLTAGE: | 12-48 V Or Higher |
|---|---|---|---|
| OUTPUT: | 100 DB | CURRENT: | MAX 0.6A |
| TEMPERATURE: | -40 To 75℃ | FREQUENCY: | 2800HZ Or Mutifrequency |
| SIZE: | 60*46.3 Mm | TYPE: | Backup Warning Beeper |
| High Light: | back up beeper,truck reverse alarm |
||

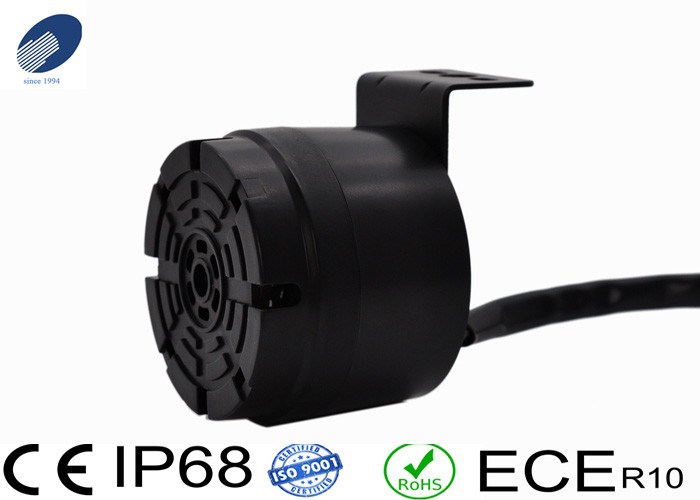

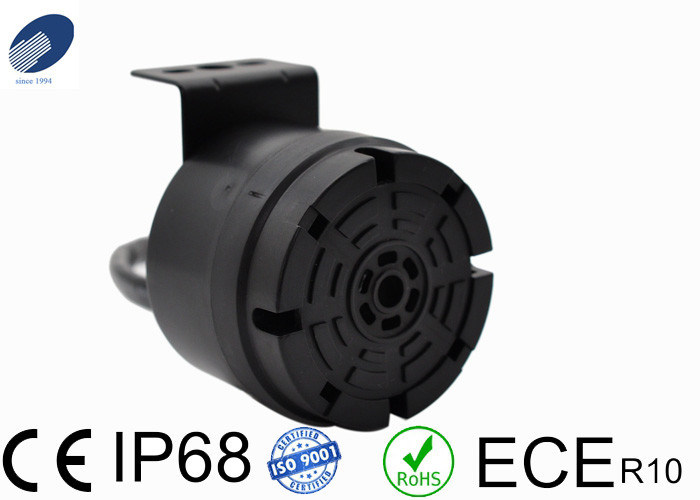

12-48V light weight beep sound 100dB buzzer compact backup warning beeper
General specifications:
| Output level | around 100 dB at 1.2M |
| Voltage | 12-48VDC systems |
| Current drain | less than 0.05A |
| temperature range | -40 to 75 degree C |
| Frequency | 1400Hz ± 10% |
| Duty cycle | 0.85 pulse per second 50% ON 50% OFF |
| weight | 75g ± 10% |
| Dimensions | 60*46.3mm |
Applications:
For equipments and vehicles like,cars, trucks, construction machinery, forklift, with 24V to 48VDC system, made for heavy duty applications in medium or high noise area.
80V version also available
Main features:
Compact size dia 60mm
ABS housing with plated flange
IP68 test reports by a 3rd part lab available
Polarity protected will not get damaged with wrong polarity
Easy to install Universal mount size, compatible to most forlift or vehicles
Long warranty 18 months
RoHS and CE
Similar products:
with same housing
| P/N | Voltage | Output | Remark |
| YS-B11 | 12-24V | 100dB | |
| YS-B15 | 12-48V | 100dB | other sounds optional |
More information about the alarm:
Alarm drawing, sizes in mm
alarm production line, with operation instruction for all positions
Alarm in production test, to have a better quality
Alarm Lab tests, including general specs tests, enviromental tests, reliabity tests, to make sure alarms well designed, will work well as we design it.
feel free to let me know if you want to know more about our products and factory
