| Place of Origin: | China, Jiangsu, Changzhou |
|---|---|
| Brand Name: | YUESEN |
| Certification: | ISO2000, RoHS, REACH |
| Model Number: | YD30-2S |
| Minimum Order Quantity: | 10kpcs |
| Price: | $0.2/pcs~$1/pcs |
| Packaging Details: | Carton |
| Delivery Time: | 2-4 weeks |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1-1.5million/month |
| Product Name: | Mylar Speaker | Size: | 30mm |
|---|---|---|---|
| Power: | 0.5W | Impedance: | 8ohm |
| Sound Pressure Level: | 92±2dB | Frequency Response: | F0-20kHz |
| High Light: | mylar cone speaker,precision sound speakers |
||

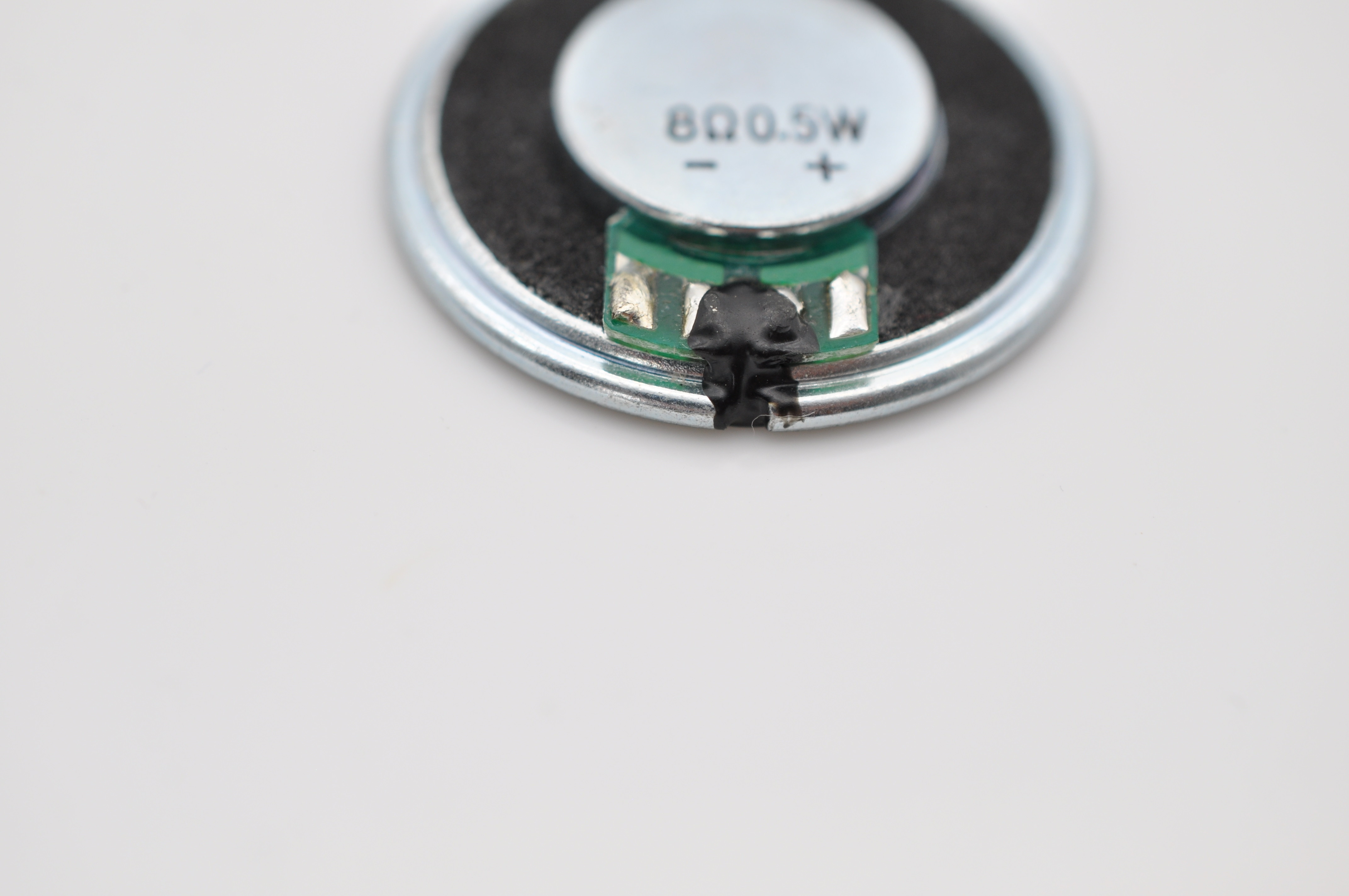

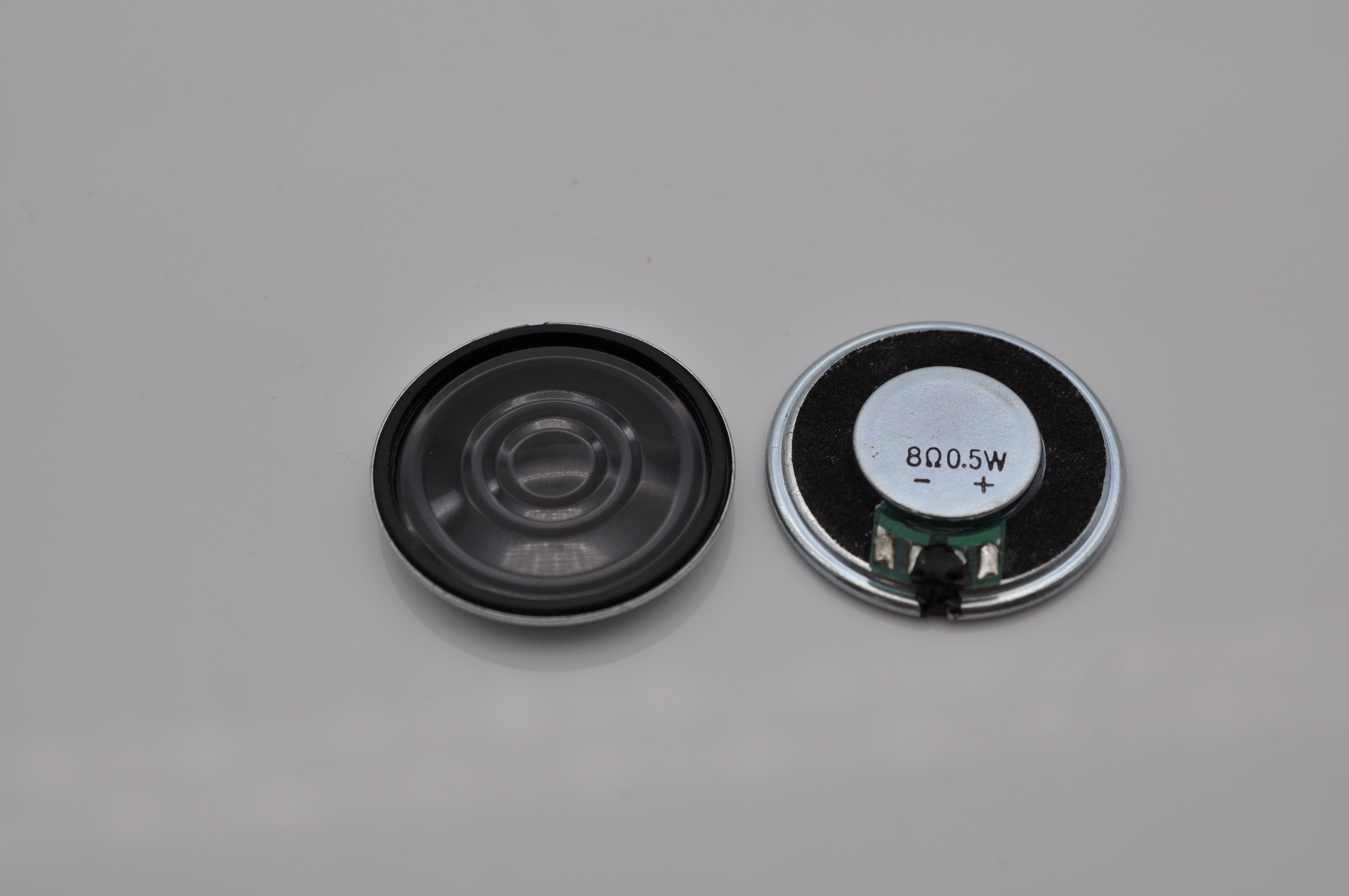

YD30-2S, consumer electronic Mylar Speaker 0.5W, 8ohm, with CE certificate
We are a high-tech enterprise which integrates research, design, production and sales. Our products are widely used for TV, Mobile devices such as notebook, GPS, mobile DVD and so on.
General Specifications:
| Dimensions | 30mm |
| Rated Input Power | 0.5W |
| Maximum Input Power | 0.8W |
| Sound Pressure Level | 92±3dB 0.1M/0.1W at 1.2, 1.5,1.8,2.0KHz |
| Impedance | 8Ω±20%(at 1V) |
| Frequency Response | F0~20kHz(-10dB) |
| Distortion | 5%Max |
| Noise | Must be normal. Sine wave 2V |
| Heat Test | Shall be normal after test. 80℃ 96 hours |
| Cold Test |
-20℃ 96h |
| Humidity Test | Shall be normal after test. 40℃ 90~95%RH 96 hours |
| Load Test |
Shall be normal after test. Input Power: 0.5W White Noise Duration: 96 hours |
| Polarization |
When a positive DC current is applied to the terminal marked(+), diaphragm shall move forward |
Drawing:
Product Processing:
