| Place of Origin: | China, Jiangsu, Changzhou |
|---|---|
| Brand Name: | YUESEN |
| Certification: | ISO2000, RoHS, REACH |
| Model Number: | YDP2035-8 |
| Minimum Order Quantity: | 10kpcs |
| Price: | $0.2/pcs~$1/pcs |
| Packaging Details: | Carton |
| Delivery Time: | 2-4 weeks |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1-1.5million/month |
| Product Name: | Precision Audio Speakers | Size: | 20*35mm |
|---|---|---|---|
| Power: | 1W | Impedance: | 8ohm |
| Sound Pressure Level: | 88±2dB | Frequency Response: | F0-14kHz |
| High Light: | raw audio speakers,precision power subwoofers |
||

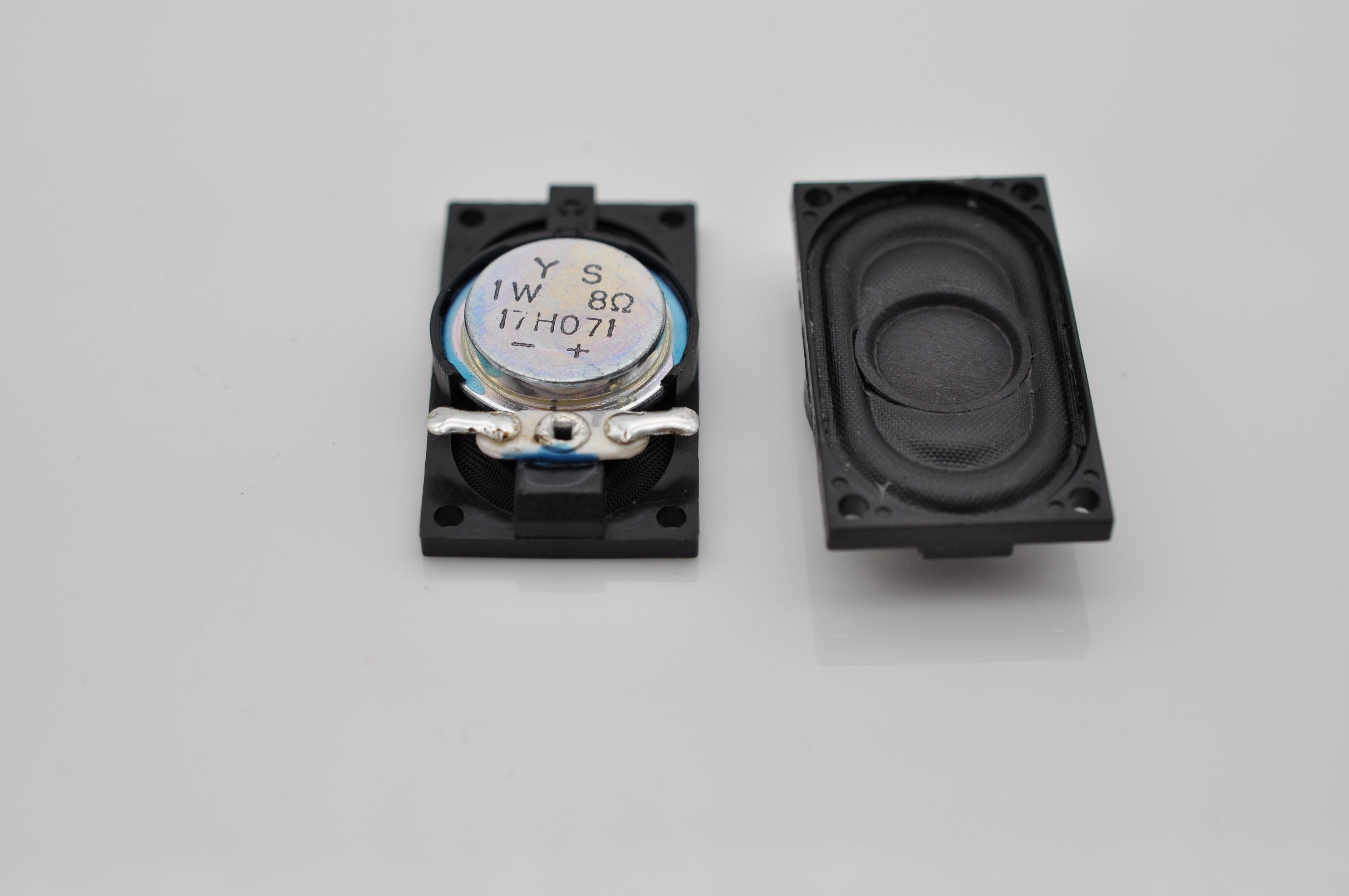

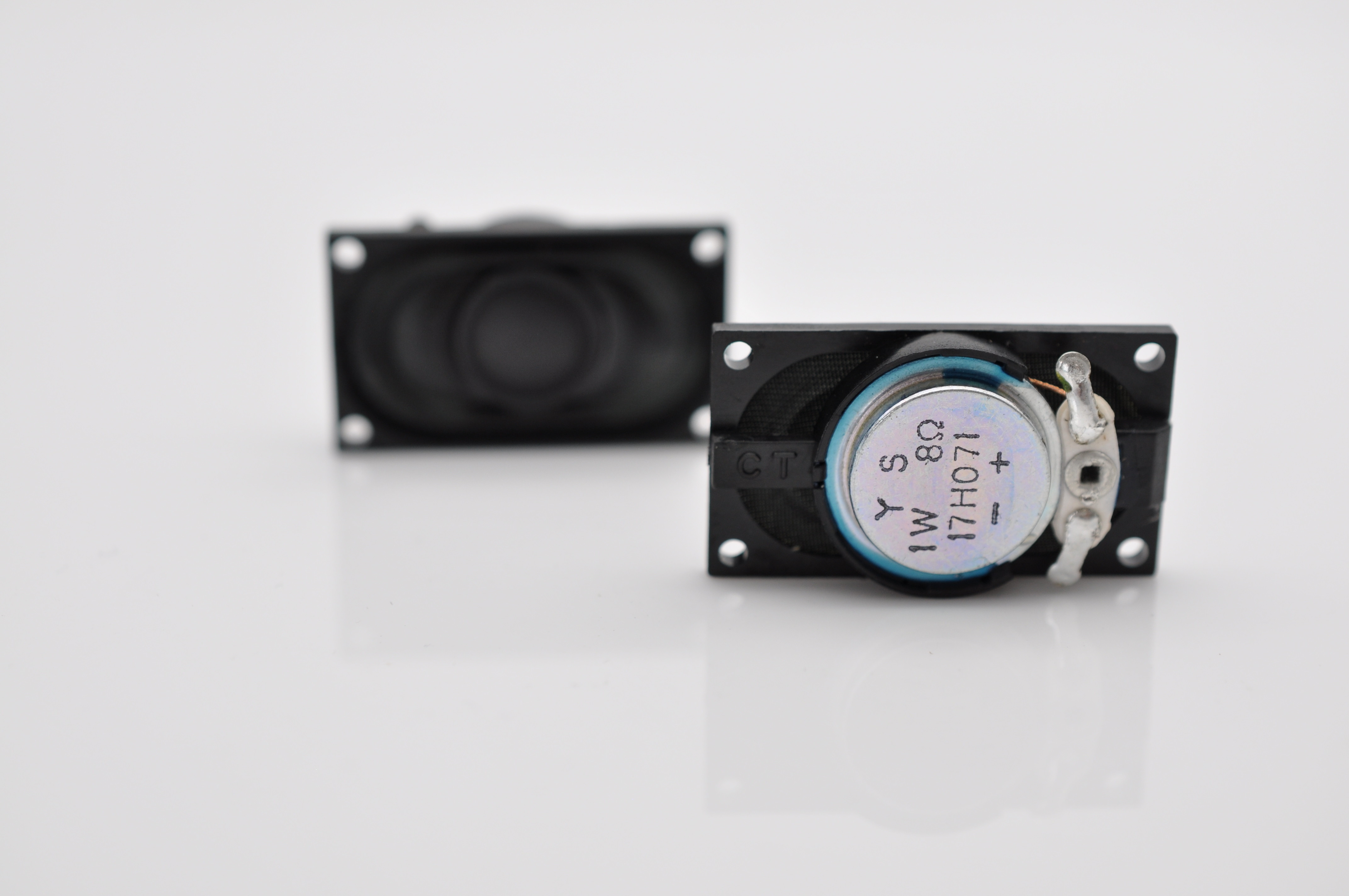

YDP2035-8 , commonly used accessories Precision Audio Speakers 1W,8ohm
We are a high-tech enterprise which integrates research, design, production and sales. Our products are widely used for TV, Mobile devices such as notebook, GPS, mobile DVD and so on.
General Specifications:
| Dimensions | 20*35mm |
| Rated Input Power | 1W |
| Maximum Input Power | 1.5W |
| Sound Pressure Level | 88±2dB 0.1M/0.1W At 1.0, 1.2, 1.5KHz |
| Impedance | 8Ω±15% |
| Frequency Response | F0~14kHz(-10dB) |
| Operation | Must be normal. Program source 1W |
| Noise | Must be normal. Sine wave 2.83V |
| Heat Test | Shall be normal after test. 70±2℃ 16 hours |
| Total Flux |
Max Well |
| Humidity Test | Shall be normal after test. 40±2℃ 90~95%RH 48 hours |
| Load Test |
Shall be normal after test. Input Power: 1W White Noise Duration: 100 hours |
| Polarization |
When a positive DC current is applied to the terminal marked(+), diaphragm shall move forward |
| Net Weight | 7.7g |
Drawing:
Product Processing:
