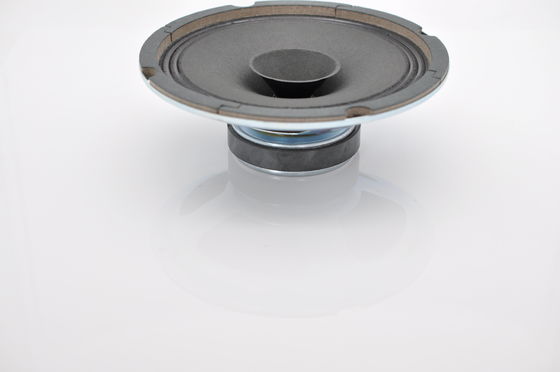

Multimedia 57mm Mylar Tweeter Precision Power Subwoofers

Basic Information
Place of Origin: CHINA
Brand Name: YS
Certification: RoHS
Model Number: YD57-2
Minimum Order Quantity: 5000 PCs
Price: USD 0.3 - 0.7/pc
Packaging Details: trays, 1000 PCs per carton
Delivery Time: 2-4 weeks
Payment Terms: L/C, T/T, D/P, Western Union
Supply Ability: 500000 Pcs/ Month
Detail Information
MATERIAL: Metal Frame Power: 0.5 Watt Nominal
Impedance: 8 Ohm Output: Around 88 DB
SIZE: 57*8.4 Mm TYPE: Mylar Speaker
High Light:

57mm mylar tweeter


Multimedia mylar tweeter


57mm mylar Power Subwoofers

Product Description

RoHS and REACH compliant 57 mm metal frame multimedia speaker waterproof micro mylar speaker


General specifications:


Impedance  8 ohm
Rated power 0.5  watt
Max. power 1  watt
SPL sound pressure level 88± 3dB 0.5M/0.5W
Fo Lower resonance frequency 450Hz ± 20%
Frequency reponse Fo - 13kHz
Material Metal frame
Magnet NdFeB
weight 15 g
Dimensions 57*8.4 mm



Used for waterproof intercoms, and similar devices which are used in touch conditions.

Could also be use for multimedia devices, car electronics, smart home appliances, and IOT devices which need to play some souds more than beep one, like vocal warning messages, or musics.


Main advantages:

Waterproof Could be used for waterproof applications.

RoHs and REACH COMPLIANT All our spakers are RoHs and REACH conformed, vironmental friendly

Techical support Our factorry We have engaged in this field since 1994, any many experienced engineers, some more than 20 years.

Our technical support will be available through your project which may need some speakers.we can we can work together to improve our speaker, or your design to make them fit better.

Production fully under control: Fully monitored from incoming materials, and 100% checked in production, to make sure a good quality

In time after-sales: In case there is any defective, Our QC and engineers will feedback with 8D reports with in 24 hours.



What do we make:

We also make micro mylar speakers of all sizes, mainly waterproof ones, headphone speaker, handset spekers,and multimedia speaker for cars, car electronics, laptops, bluetooth players, alarms, televisions, ATMs, POS etc

Hifi speakers, line array speaker and some customized speaker could also be made according to your specfic requiments.


Drwaing and frequency reponse:

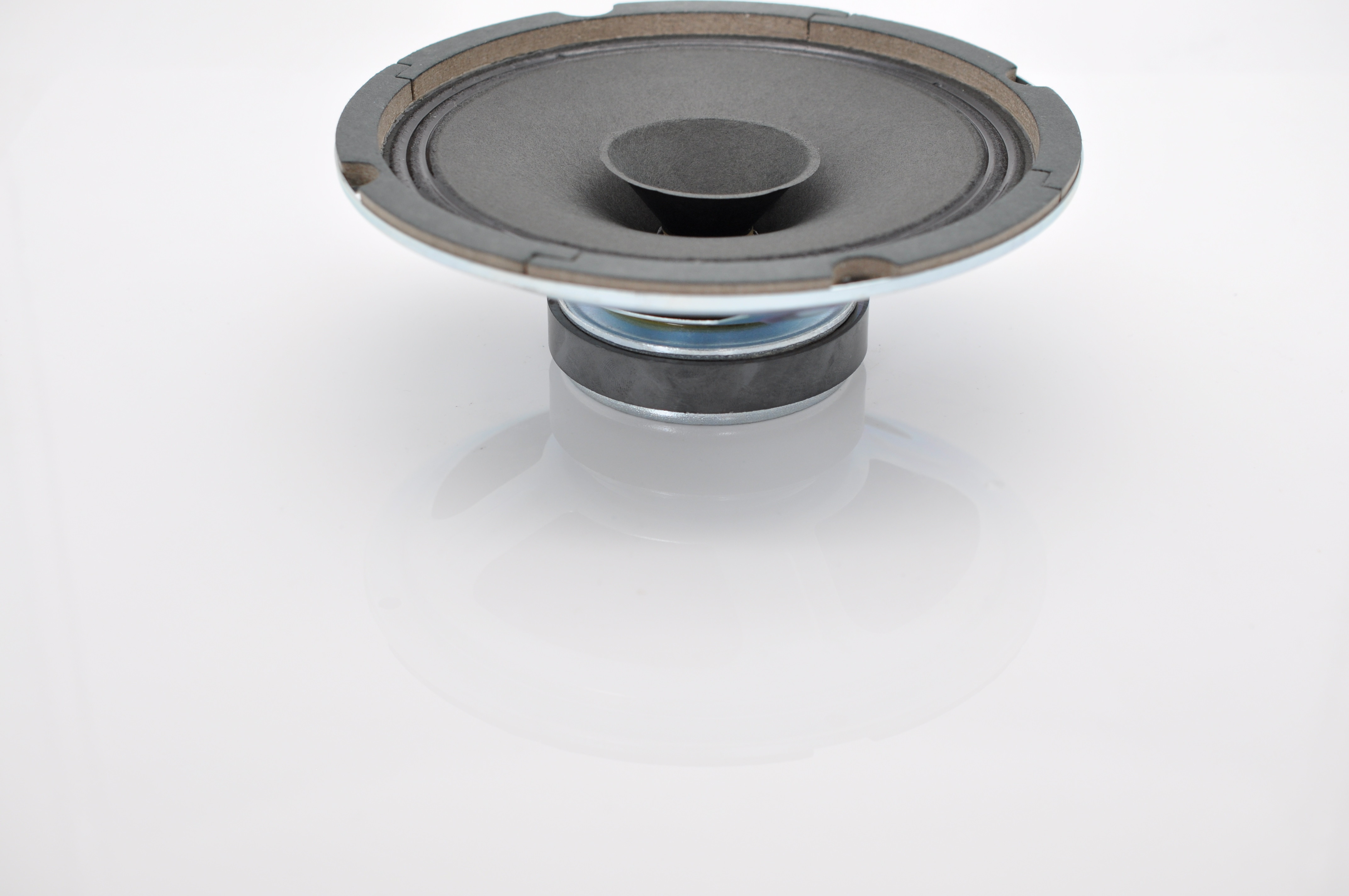

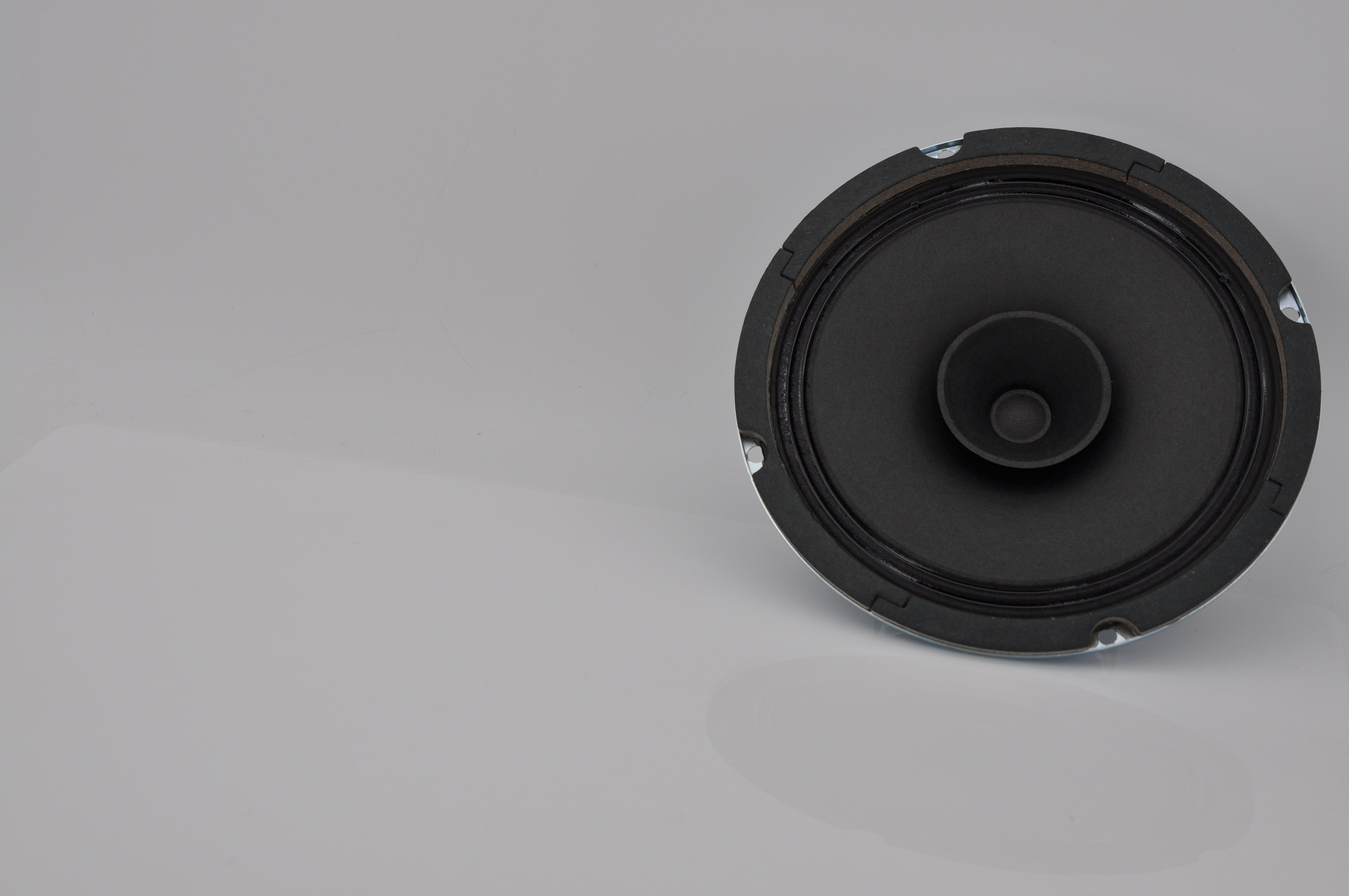

Multimedia 57mm Mylar Tweeter  Precision Power Subwoofers 0

Multimedia 57mm Mylar Tweeter  Precision Power Subwoofers 1



Multimedia 57mm Mylar Tweeter  Precision Power Subwoofers 2

Multimedia 57mm Mylar Tweeter  Precision Power Subwoofers 3


feel free to let me know if you want to know more about our products and factory
