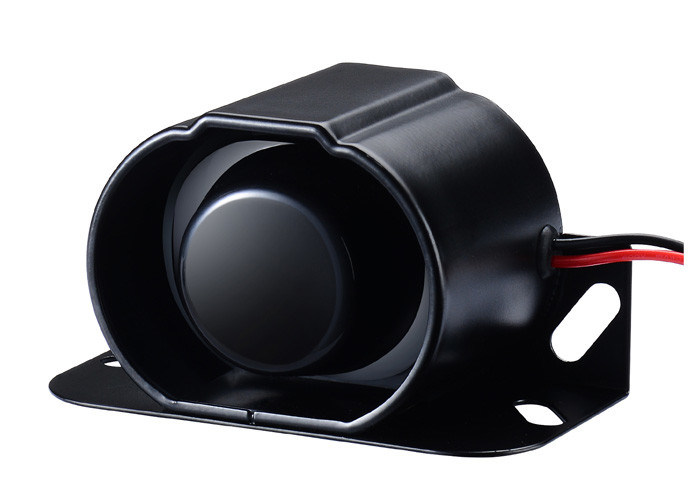

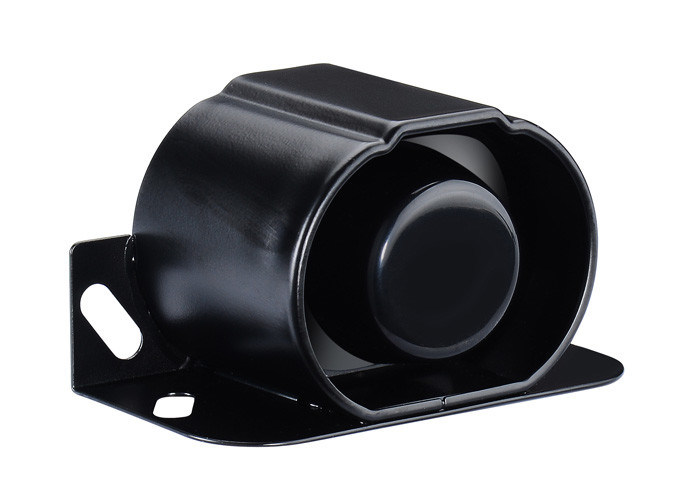

Waterproof Metal Vehicle Reverse Alarm High Decibel 112 DB Car Reverse Horn

Basic Information
Place of Origin: CHINA
Brand Name: YUESONIC
Certification: CE
Model Number: YS-B04
Minimum Order Quantity: 20 PCs
Price: USD20-USD 30/pc
Packaging Details: Individual neutral box, 20 pcs per carton
Delivery Time: 2-4 weeks
Payment Terms: L/C, T/T, D/P, Western Union
Supply Ability: 30000 Pcs/ Month
Detail Information
MATERIAL: METAL VOLTAGE: 12 To 48V
OUTPUT: 112 DB Max CURRENT: MAX 0.6A
TEMPERATURE: -40 To 85℃ FREQUENCY: 1240HZ
SIZE: 127*70*73.4MM TYPE: Vehicle Reverse Alarm
High Light:

reverse beeper

,

car reverse alarm sound


Product Description

CE certified waterproof metal alarm heavy duty use high decibel 112 dB vehicle reverse alarm



General specifications:



Output level 112dB ± 4dB at 1.2M
Voltage 12-36VDC systems
Current drain less than 0.6A
temperature range -40 to 85 degree C
Frequency 1240Hz ± 10%
Duty cycle 0.85 pulse per second 50% ON 50% OFF
weight 750g ± 10%
Dimensions 127*70*73.4mm



Applications:

For cars, trucks, construction machinery, with 12V and 24VDC system, made for heavy duty applications in high noise area.

Cylic beeping sound version and continous beeping sound version available, so could be used as a typical vehicle reverse or as a forward horn



Main features:

high decibel, it has an output of 112dB at 1.2m distance, could meet most warning applications.

Metal housing better shock and vibration resistance

IP68 Electronics fully sealed, longer life time

Polarity protection prevent from being damaged with wrong polarity

Easy to install Also connectors optional, to have easier installation

Long warranty life warranty

RoHS and CE, complete 3rd party test report available



Similar products:

with same housing

P/N Voltage Output  Remark
YS-B02 12-36V 107dB
YS-B04 12-36V 112dB
YS-B05 12-36V 87-112dB





Waterproof Metal Vehicle Reverse Alarm  High Decibel 112 DB Car Reverse Horn 0





More information about the alarm:

Waterproof Metal Vehicle Reverse Alarm  High Decibel 112 DB Car Reverse Horn 1

Alarm drawing, sizes in mm







alarm production line, with operation instruction for all positions





Waterproof Metal Vehicle Reverse Alarm  High Decibel 112 DB Car Reverse Horn 2

Alarm in production test, to have a better quality





Waterproof Metal Vehicle Reverse Alarm  High Decibel 112 DB Car Reverse Horn 3





Alarm Lab tests, including general specs tests, enviromental tests, reliabity tests, to make sure alarms well designed, will work well as we design it.
