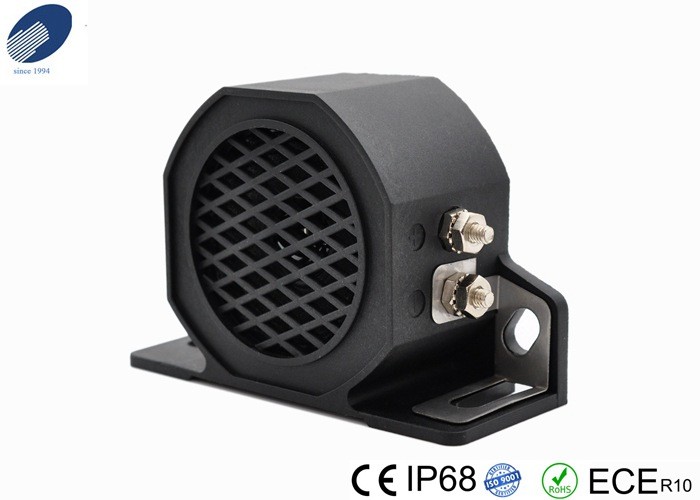

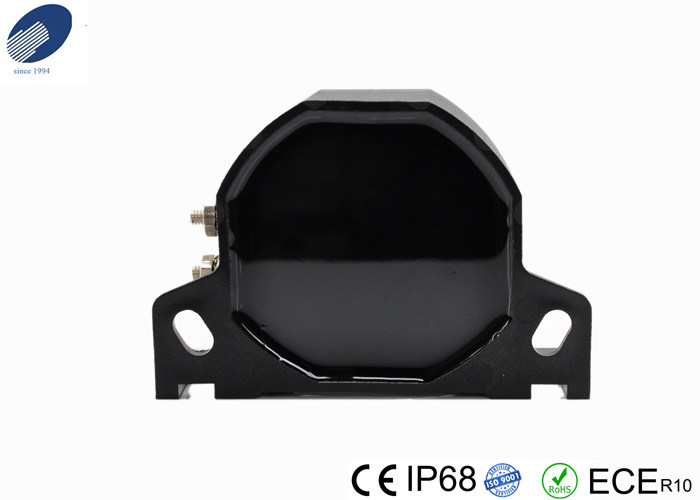

Nylon Housing 102dB White Noise Reversing Beeper 103.5*40.5*71 Mm

Basic Information
Place of Origin: CHINA
Brand Name: YUESONIC
Certification: CE
Model Number: YS-B22
Minimum Order Quantity: 40 PCs
Price: USD5-USD 10/pc
Packaging Details: Individual neutral box, 40 pcs per carton
Delivery Time: 2-4 weeks
Payment Terms: L/C, T/T, D/P, Western Union
Supply Ability: 5000 Pcs/ Month
Detail Information
MATERIAL: Reinforced Nylon VOLTAGE: 12 To 48 V
OUTPUT: 102 DB CURRENT: MAX 0.6A
SIZE: 103.5*40.5*71 Mm TYPE: Vehicle Reverse Alarm
High Light:

back up beeper sound

,

reverse beeper


Product Description

reinforced nylon housing 12 t0 24V use 102dB white noise sound vehicle reverse alarm

General specifications:



Output level 102dB ± 4dB at 1.2M
Voltage 12-48VDC
Current drain less than 0.6A
temperature range -40 to 85 degree C
Frequency 1400Hz ± 10%
Duty cycle 0.85 pulse per second 50% ON 50% OFF
weight 320g ± 10%
Dimensions 103.5*40.5*71mm



Applications:

For equipments and vehicles like,cars, trucks, construction machinery, with 12V and 48VDC system, made for heavy duty applications in medium or high noise area. Most popularly used 102dB, 107dB also available.

Use conventional beeping signal which is well recognized by general to be a warning that a vehicle is reversing. and 102 dB is the best acceptable output, which is not too high to be disturbing, and not too low to warn people nearby.







Nylon Housing  102dB White Noise Reversing Beeper 103.5*40.5*71 Mm 0



Quick details for all series alarms

Series Size Sound Remark
B00 127*70*73.5mm beep sound intelligent models available
B10 dia 60*46.3mm beep sound
B20 103.5*40.5*71mm beep, white noise, bespoken message intelligent models available
B30 103*44.5*68mm beep, white noise, bespoken message intelligent models available
B40 129*69*74mm beep sound, bespoken message manual adjustable available
B50 102*44.5*69.5mm beep, white noise, bespoken message intelligent models available
B60 127*95*77mm beep, white noise, bespoken message intelligent models available
B70 127.5*79*82mm beep, white noise, bespoken message models with night mode available
B80 S 105*71.8*70mm beep, white noise, bespoken message models with night mode available
B80 L 130*76*88mm beep, white noise, bespoken message models with night mode available
BJ 58*30*59.5mm beep, white noise, bespoken message
B   beep, white noise, bespoken message models with night mode available







More information about the alarm:

Nylon Housing  102dB White Noise Reversing Beeper 103.5*40.5*71 Mm 1

Alarm drawing, sizes in mm





alarm production line, with operation instruction for all positions





Nylon Housing  102dB White Noise Reversing Beeper 103.5*40.5*71 Mm 2

Alarm in production test, to have a better quality





Nylon Housing  102dB White Noise Reversing Beeper 103.5*40.5*71 Mm 3

Alarm Lab tests, including general specs tests, enviromental tests, reliabity tests, to make sure alarms well designed, will work well as we design it.



feel free to let me know if you want to know more about our products and factory.
