| Place of Origin: | CHINA |
|---|---|
| Brand Name: | YUESONIC |
| Certification: | CE |
| Model Number: | YS-B62 |
| Minimum Order Quantity: | 20 PCs |
| Price: | USD20-USD 30/pc |
| Packaging Details: | Individual neutral box, 20 pcs per carton |
| Delivery Time: | 2-4 weeks |
| Payment Terms: | L/C, T/T, D/P, Western Union |
| Supply Ability: | 10000 Pcs/ Month |
| MATERIAL: | Reinforced Nylon | VOLTAGE: | 12-48 V |
|---|---|---|---|
| OUTPUT: | 112 DB | CURRENT: | MAX 0.6A |
| TEMPERATURE: | -40 To 85℃ | FREQUENCY: | 1240HZ |
| SIZE: | 127*95*77 MM | TYPE: | Car Reverse Horn |
| High Light: | backup alert beeper,white noise beeper |
||

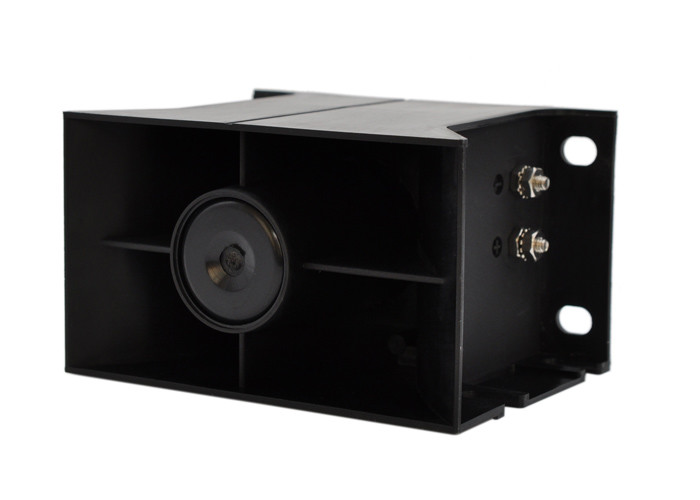

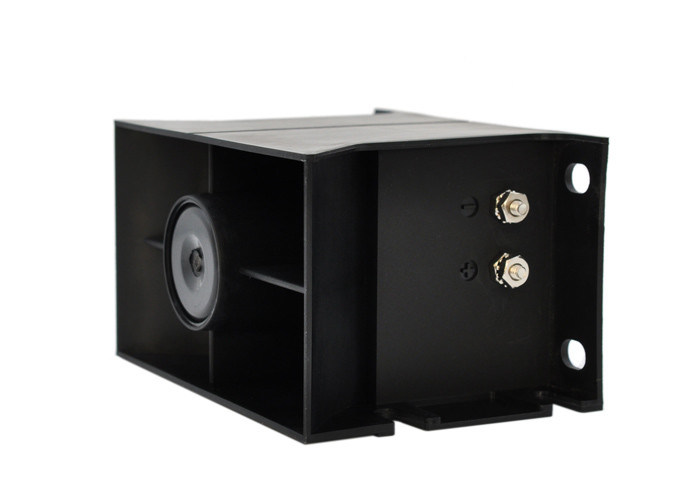

12V to 48V alarm reinforced nylon reverse alarm beep sound white noise car reverse horn
General specifications:
| Output level | 112dB ± 4dB at 1.2M |
| Voltage | 12-48VDC |
| Current drain | less than 0.6A |
| temperature range | -40 to 85 degree C |
| Frequency | 1240Hz ± 10% |
| Duty cycle | 0.85 pulse per second 50% ON 50% OFF |
| weight | 690g ± 10% |
| Dimensions | 127*95*77mm |
Applications:
For equipments and vehicles like,cars, trucks, construction machinery, with 12V and 48VDC system, made for heavy duty applications in medium or high noise area.
Main features:
High output, up to 112dB for beep sound models, and around 107dB for white noise multifrequency models
Reinforced nylong housing Glass-filled nylon, Designed to meet all hash conditions, provide splendid durability
IP68 well sealed with epoxy
Polarity protection will not get damaged with wrong polarity
Easy to install
Long warranty 24 months or longer
Many sounds optional beep sound, white noise sound, dual or multi frequency sound optional
RoHS and CE
Similar products:
with same housing
| P/N | Voltage | Output | Remark |
| YS-B61 | 12-48V | 107dB | dual tone or white noise available, 12-24V |
| YS-B62 | 12-48V | 112dB |
More information about the alarm:
Alarm drawing, sizes in mm
alarm production line, with operation instruction for all positions
Alarm in production test, to have a better quality
Alarm Lab tests, including general specs tests, enviromental tests, reliabity tests, to make sure alarms well designed, will work well as we design it.
feel free to let me know if you want to know more about our products and factory.
