| Place of Origin: | China,Jiangsu,Changzhou |
|---|---|
| Brand Name: | Yuesonic |
| Certification: | CE,IP68,RoHS |
| Model Number: | YS-B44 |
| Minimum Order Quantity: | 20 |
| Price: | $12/pcs |
| Packaging Details: | 20pcs/carton, carton size: 43.5*30*25cm |
| Delivery Time: | 3-5 work days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 30000pcs/month |
| Name: | Backup Warning Beeper | Output Level: | 112±4dB |
|---|---|---|---|
| Voltage: | 10-48V | Meterial: | Nylon |
| Color: | Black | Sealing: | Epoxy |
| High Light: | back up beeper,car reverse horn |
||

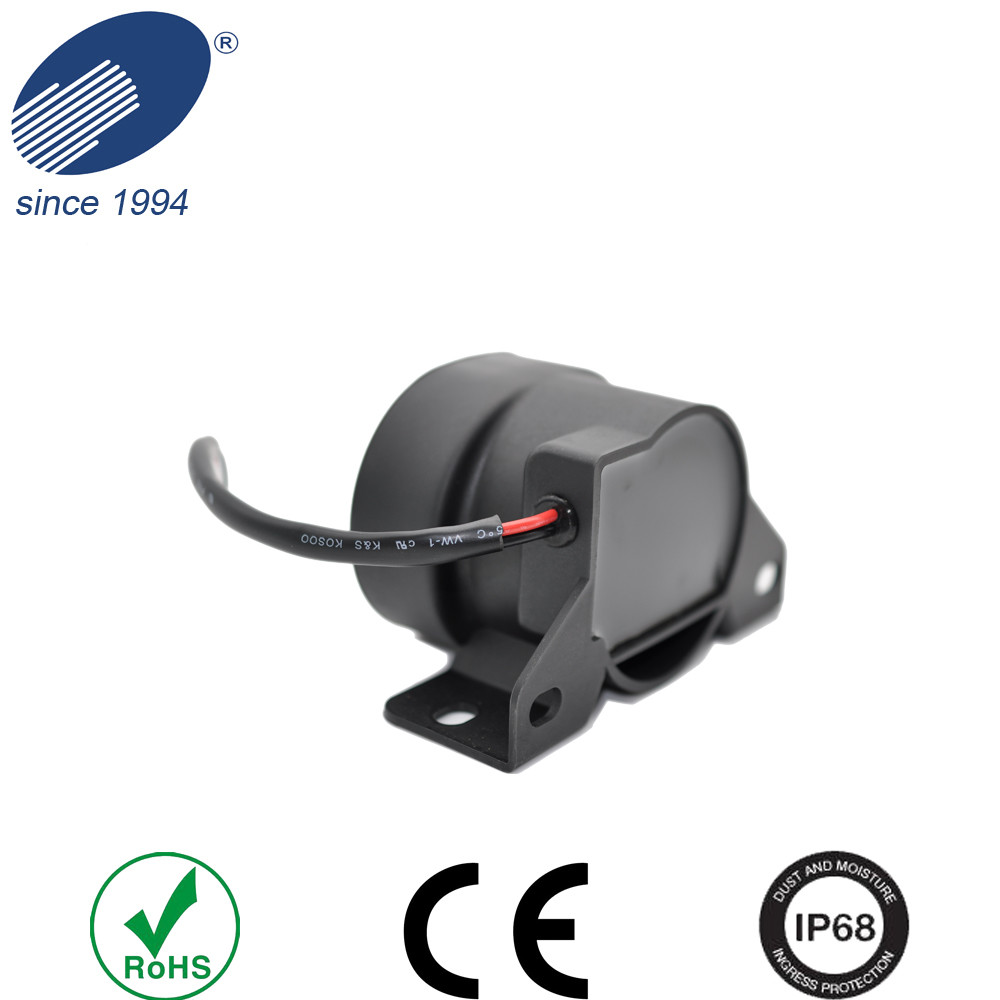

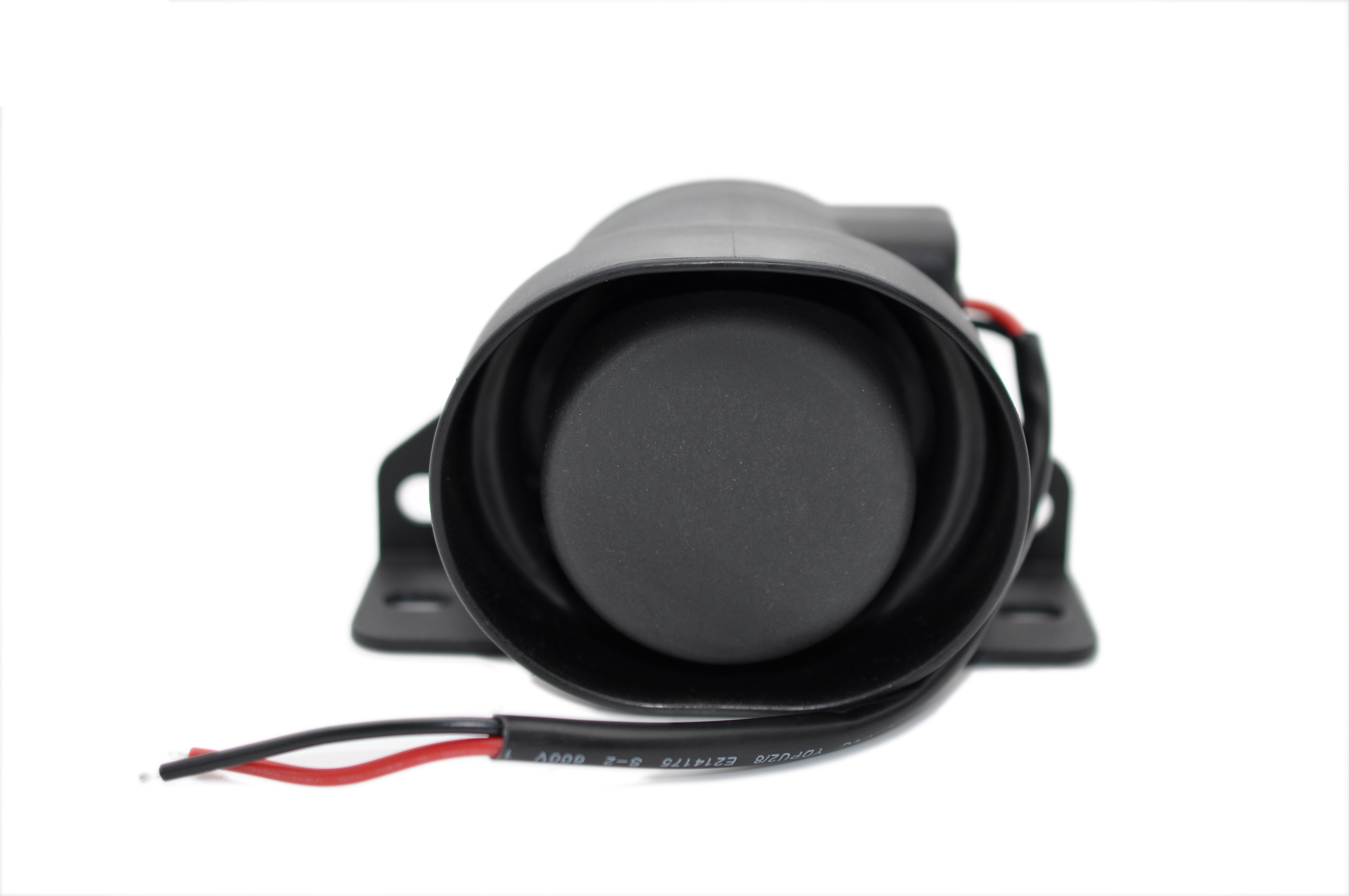

truck back up alarm reverse horn safety Backup Warning Beeper with CE/RoHS certification
This type is made for customization, with beautiful appearance. A glass-filled nylon housing with epoxy-encapsulated electronics provide exceptional durability and protection against moisture, dust and vibration.
You could decide what the voltage and output will be, or intelligent one that measures the ambient noise level and adjust their output level.
General Specifications:
| Size | 129*69*74mm |
| Output Level | 112±4dB(A) AT 4FT |
| Voltage | 10-48 VDC |
| Max Current Drain | 0.6A |
| Temperature Range | -40℃ - 85℃ |
| Frequency | 1400Hz±10% |
| Duty Cycle | 0.85S±10% (-50% On 50% Off) |
| Weight | 355g |
| Alarm Sound | Customizable |
Advantages:
· Compact size and easy to install
· Reinforced nylon housing
· Voltage polarity protection
· RoHS compliant, CE certified
Drawing:
Product Processing:
Optional Connections:
