| Place of Origin: | China,Jiangsu,Changzhou |
|---|---|
| Brand Name: | Yuesonic |
| Certification: | CE,IP68,RoHS |
| Model Number: | YS-B24AF(DZ) |
| Minimum Order Quantity: | 40 |
| Price: | $8/pcs |
| Packaging Details: | 20pcs/carton, carton size: 43.5*30*25cm |
| Delivery Time: | 3-5 work days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 30000pcs/month |
| Name: | Backup Warning Beeper | Output Level: | 97±4dB |
|---|---|---|---|
| Voltage: | 12-28V | Meterial: | Nylon |
| Color: | Black | Sealing: | Epoxy |
| High Light: | back up beeper,car reverse horn |
||

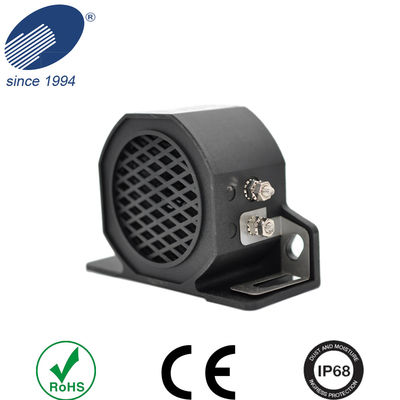

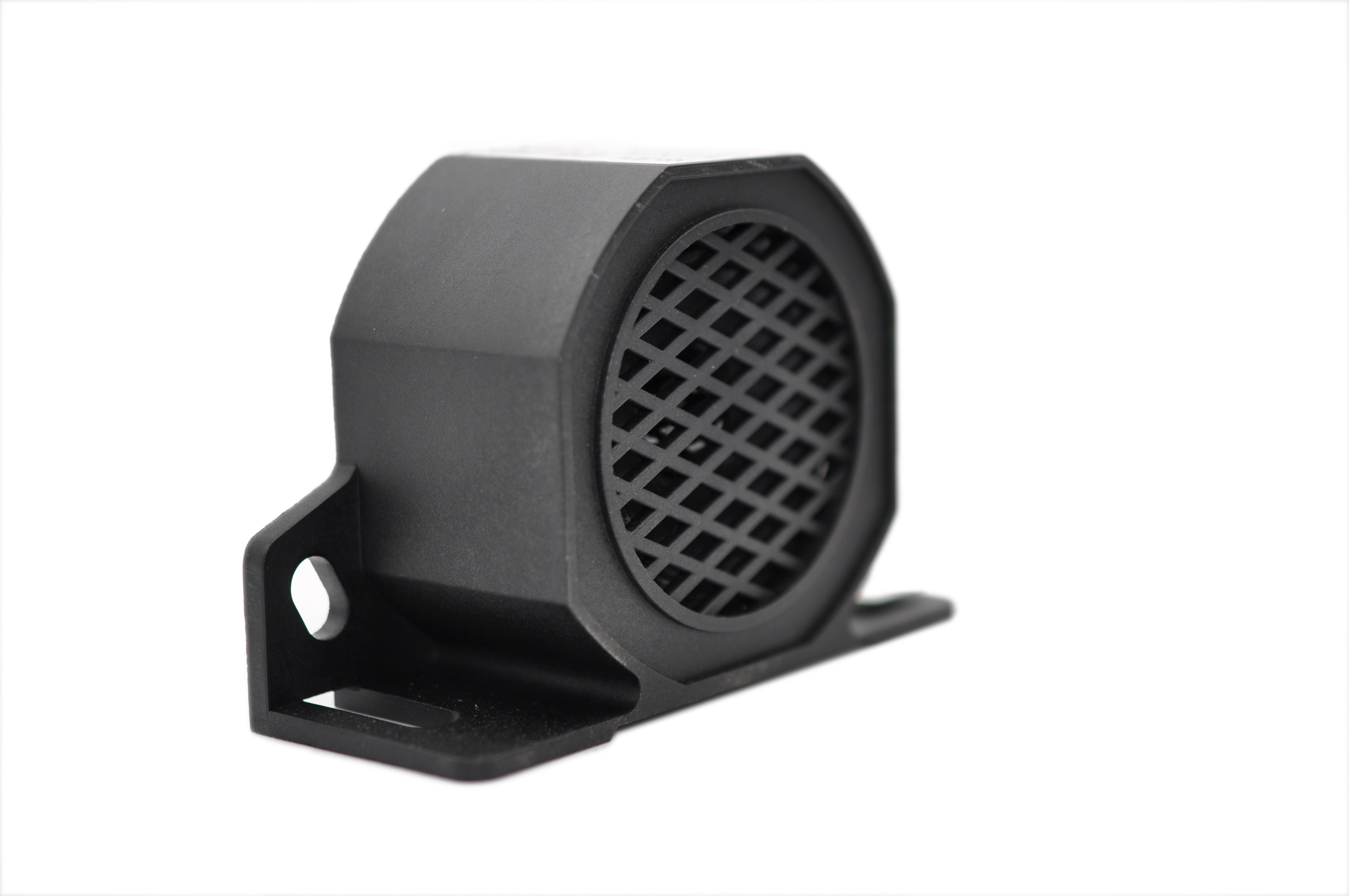

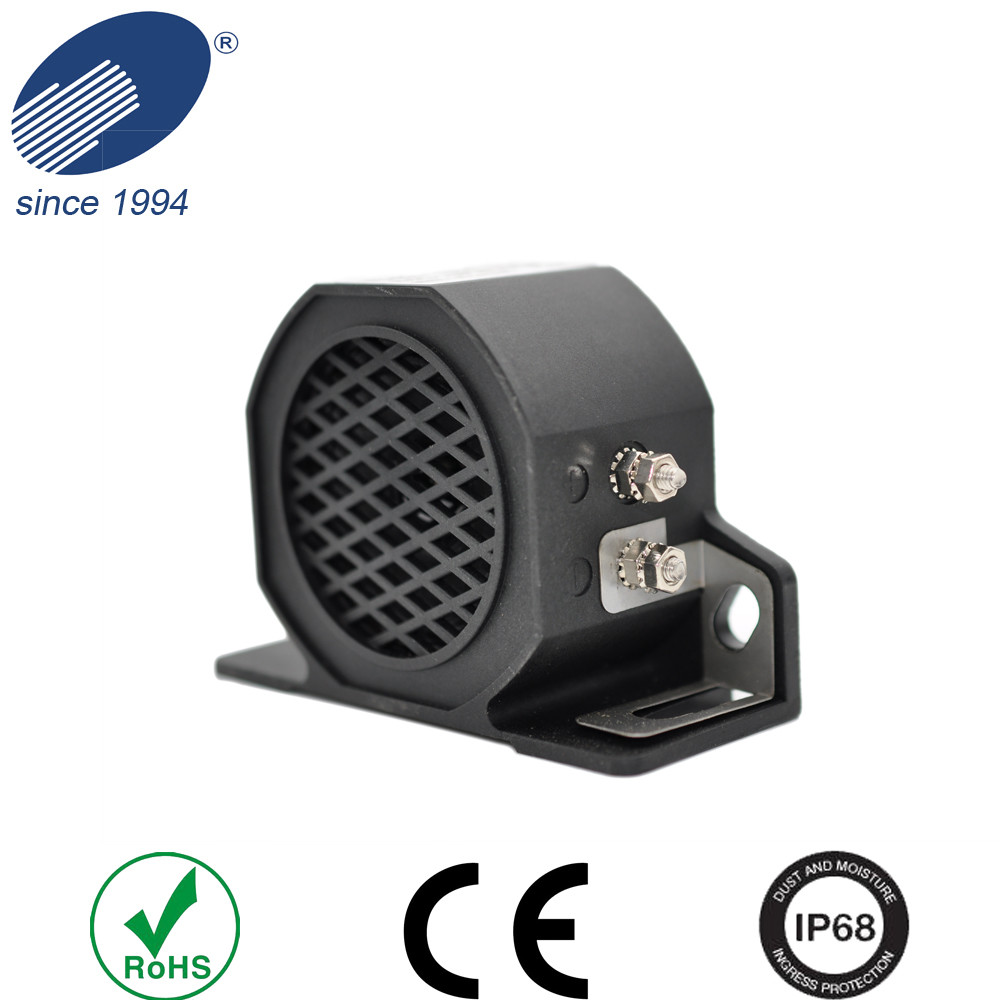

Small universal Backup Warning Beeper Customizable Sound Source 97dB
This type is most popular and cost effective lines. A glass-filled nylon housing with epoxy-encapsulated electronics provide exceptional durability and protection against moisture, dust and vibration. Intelligent models measure the ambient noise level and adjust their output level, create a volume that is safe without being annoying or contributing to noise pollution. And vocal versions can be made according to your requirements.
General Specifications:
| Size | 103.5*40.5*71mm |
| Output Level | 97±4dB(A) AT 4FT |
| Voltage | 12-28 VDC |
| Max Current Drain | ＜0.6A |
| Temperature Range | -40℃ - 75℃ |
| Frequency | 1400Hz±10% |
| Duty Cycle | 1.58S (-50% On 50% Off) |
| Weight | 320g±5% |
| Alarm Sound | Caution, this vehicle is reversing |
Advantages:
· Reinforced nylon housing eliminates corrosion damage
· Wire/connector/bolt mounting optional, easy to install
· Voltage polarity protection
· RoHS compliant, CE certified
Drawing:
Product Processing:
Optional Connections:
