| Place of Origin: | China |
|---|---|
| Brand Name: | Yuesonic |
| Certification: | CE ，RoHS，REACH |
| Model Number: | YDP513-3LA |
| Minimum Order Quantity: | 2000pcs |
| Price: | Basicly USD 0.1~1 |
| Packaging Details: | Neutral packaging/ Customise |
| Delivery Time: | 2~4weeks |
| Payment Terms: | T/T, Western Union,Paypal |
| Supply Ability: | 30000 pcs per month |
| Material: | Metal | SPL: | 81±3dB |
|---|---|---|---|
| Color: | Black | Plug: | Customize |
| Function: | Speaker | Certification: | CE |
| Waterproof: | Front Side Waterproof | ||
| High Light: | raw audio speakers,precision power subwoofers |
||

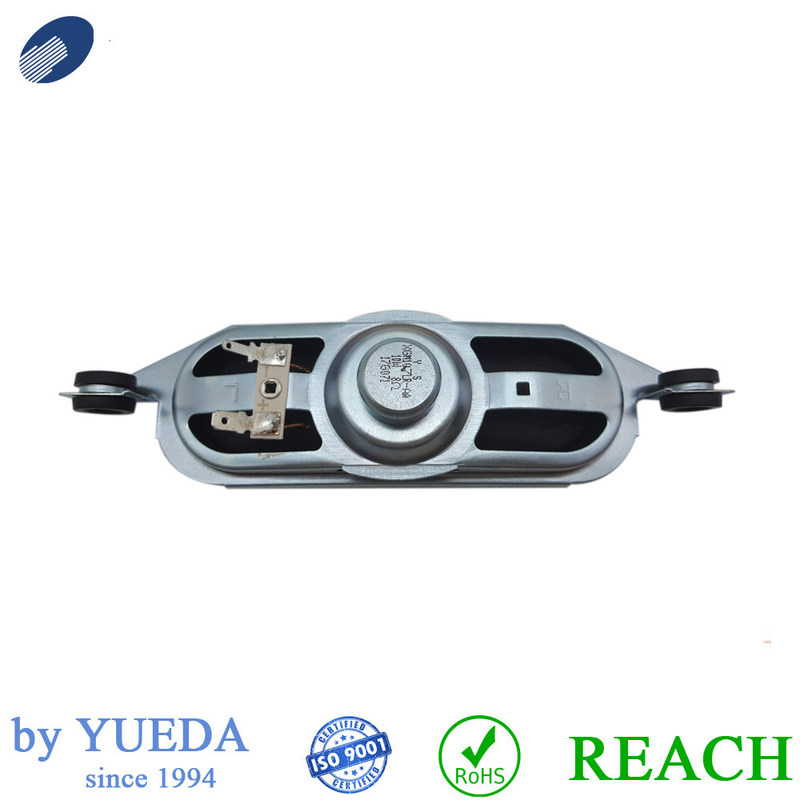

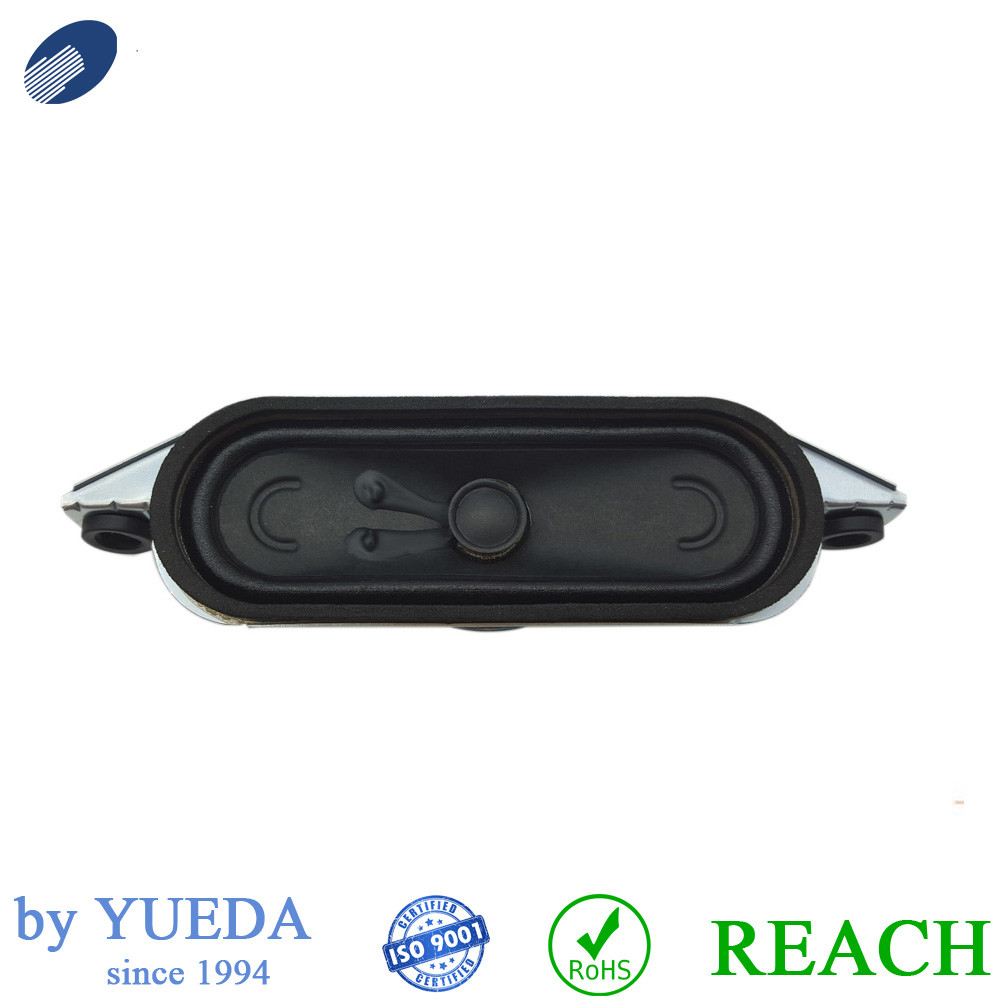

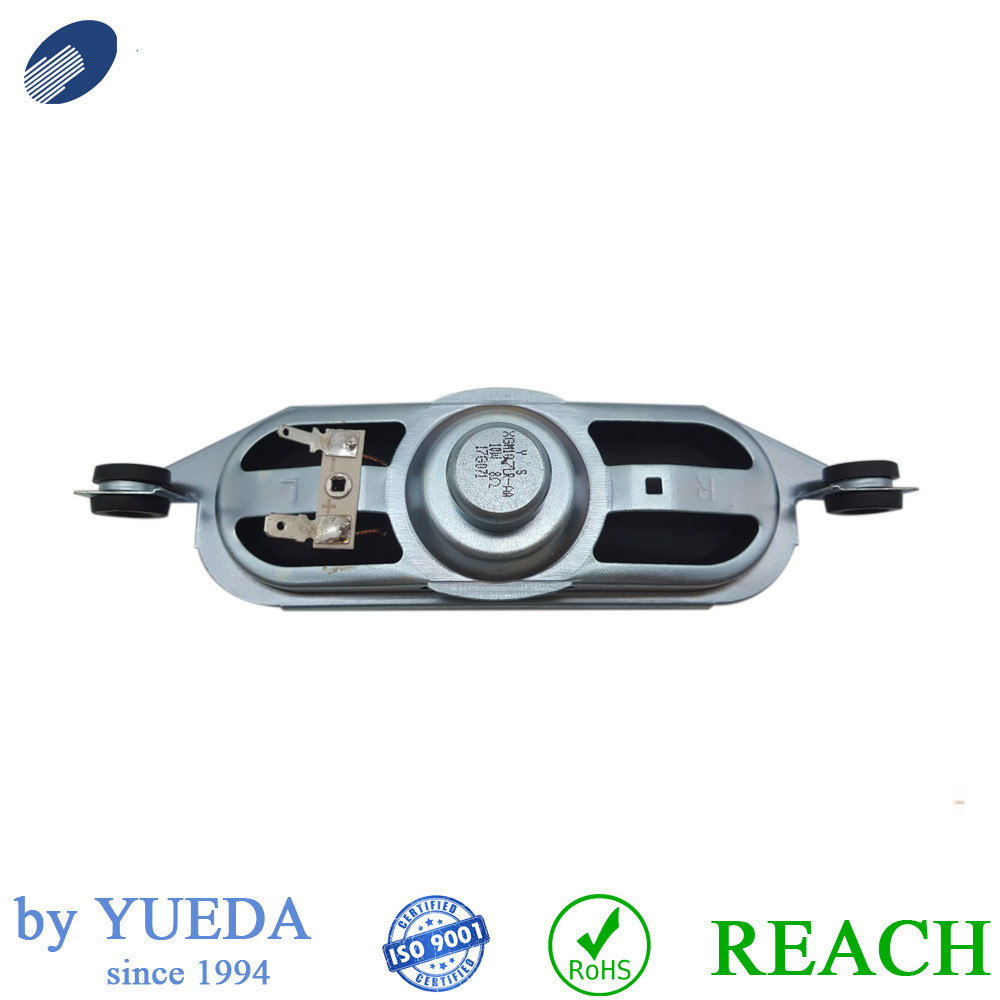

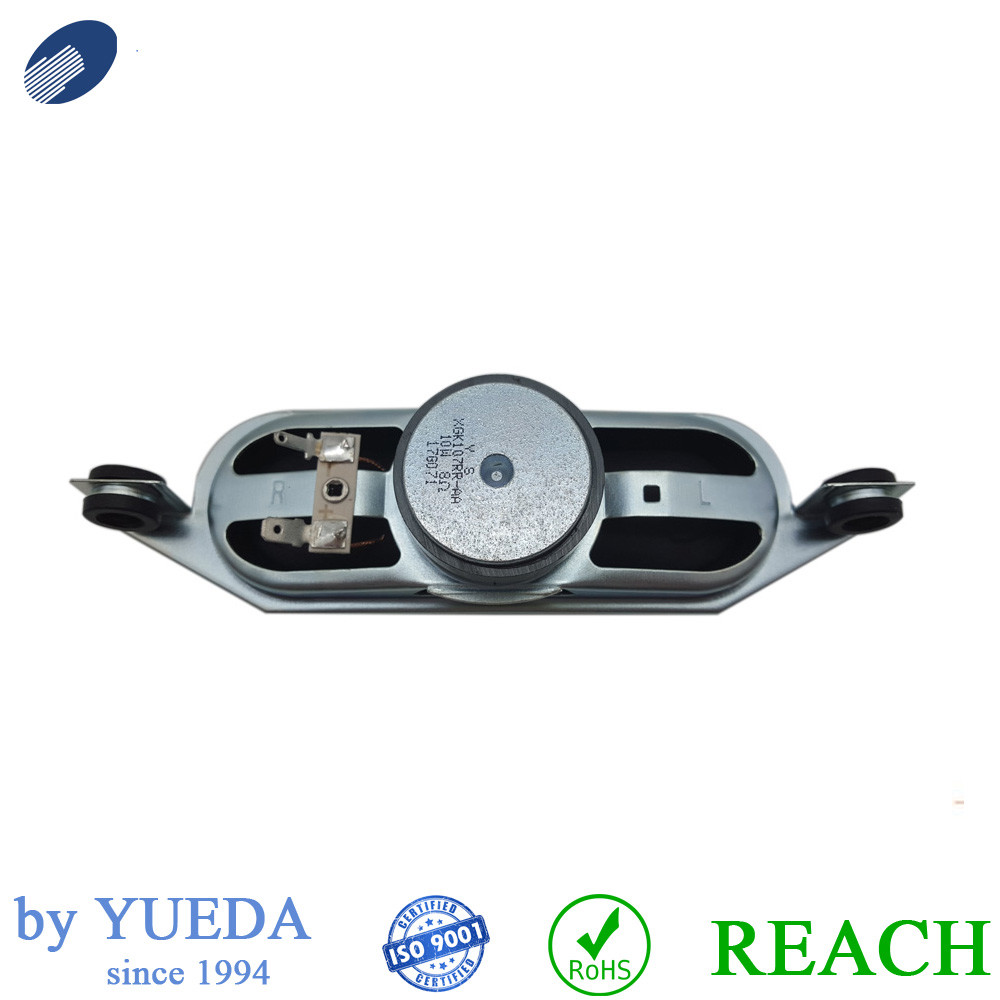

10W 15W sound bar box music player TV audio system hogh qualtity woofer tweeter full range
1.Specifications
| Sound pressure | 81±3(A)AT 1m/1w |
| VOICE COLL IMP | 8Ω |
| RESONANT FREQ | 180±20% HZ |
| Temperature | -25°C ~ 55°C |
| RATED POWER | 10W |
| MAX POWER | 15W |
| Weight | 122.5g |
2.Description
| NO | ITEM | SPECIFICATION | TESTING CONDITION |
| 1 | NOMINAL SIZE | 46.3X169 MM | |
| 2 | RATED IMPEDANCE | 8Ω±15% |
Constant current IEC60268-5---16.2.2
|
| 3 | RESONANT FREQUENCY | 180(±20%) Hz | AT 2.8V |
| 4 | S.P.L |
MEAN VALUE AT 0.5,0.6,0.7,0.8KHz 81±3dB |
AT 1m/1w MEASUREMENT |
| 5 | RATED FREQ RANGE | Fo ～ 20K Hz | -20 dB |
| 6 | RATED NOISE POWER | 10 W | IEC pink noise 100h |
| 7 | MAX POWER | 15 W |
IEC pink noise on 1 min,off 2 min,total 10 time.
|
| 8 | NOISE | MUST BE NORMAL |
Sine wave 8.9 V,period of time is 2s at 180-20000Hz
|
| 9 | HARMONIC DISTORTION | ≤5 ％ | |
| 10 | HEAT TEST |
55± 2℃ 16+2h |
First 4.5v pink noise for 16h,then no power for 2h.
|
| 11 | COLD TEST |
-10± 3℃ 1h -25± 3℃ 2h |
First 4.5v pink noise for 1h,then no power for 2h.
|
| 12 | HUMIDITY TEST |
40±2℃ 90～95%RH |
96h |
| 13 | LOAD TEST | 10W 100h | IEC pink noise continuous period of 100h. |
| 14 | POLARIZATION | When a positive DC current is applied to the terminal marked(+),diaphragm shall move forward | |
| 15 | WEIGHT | 122.5 g |
3.Applications
Johann Philipp Reis installed an electric loudspeaker in his telephone in 1861; it was capable of reproducing clear tones, but also could reproduce muffled speech after a few revisions.[3] Alexander Graham Bell patented his first electric loudspeaker (capable of reproducing intelligible speech) as part of his telephone in 1876, which was followed in 1877 by an improved version from Ernst Siemens. During this time, Thomas Edison was issued a British patent for a system using compressed air as an amplifying mechanism for his early cylinder phonographs, but he ultimately settled for the familiar metal horn driven by a membrane attached to the stylus. In 1898, Horace Short patented a design for a loudspeaker driven by compressed air; he then sold the rights to Charles Parsons, who was issued several additional British patents before 1910. A few companies, including the Victor Talking Machine Company and Pathé, produced record players using compressed-air loudspeakers. However, these designs were significantly limited by their poor sound quality and their inability to reproduce sound at low volume. Variants of the system were used for public address applications, and more recently, other variations have been used to test space-equipment resistance to the very loud sound and vibration levels that the launching of rockets produces.
4.Competitive Advantage
5.Information
| Place of Origin: | China |
| Brand Name: | Yuesonic |
| Certification: | CE/RoHS/SGS |
| Model Number: | YDP513-3LA |
6.Custom properties
| Product Name: | Speaker | Application: | Iutdoor |
| Weight: | 122.5g | Sound: | Audio |
| Material: | Metal | Power: | 10W |
| Standard: | CE/ROHS/SGS | Type: | Music |
7.Product commercial terms
| Minimum Order Quantity: | 2000pcs |
| Price: | negotiation |
| Packaging Details: | T/T or western Union |
| Delivery Time: | 3,0000pcs per month |
| Payment Terms: | 14~28 working days after received your payment |
| Supply Ability: | Packed in box firstly,and then reinforced with neutral packaging for outer packing |
