| Place of Origin: | CHINA |
|---|---|
| Brand Name: | YUESONIC |
| Certification: | CE |
| Model Number: | YS-B41 |
| Minimum Order Quantity: | 20 PCs |
| Price: | USD10-USD 20/pc |
| Packaging Details: | Individual neutral box, 20 pcs per carton |
| Delivery Time: | 2-4 weeks |
| Payment Terms: | L/C, T/T, D/P, Western Union |
| Supply Ability: | 50000 Pcs/ Month |
| MATERIAL: | Reinforced Nylon | VOLTAGE: | 12-48V |
|---|---|---|---|
| OUTPUT: | 97 Or 107 DB | CURRENT: | MAX 0.6A |
| TEMPERATURE: | -40 To 85℃ | FREQUENCY: | 1400HZ |
| SIZE: | 129*69*74 Mm | TYPE: | Intelligent Alarm |
| High Light: | car backup alarm,truck reverse horn |
||

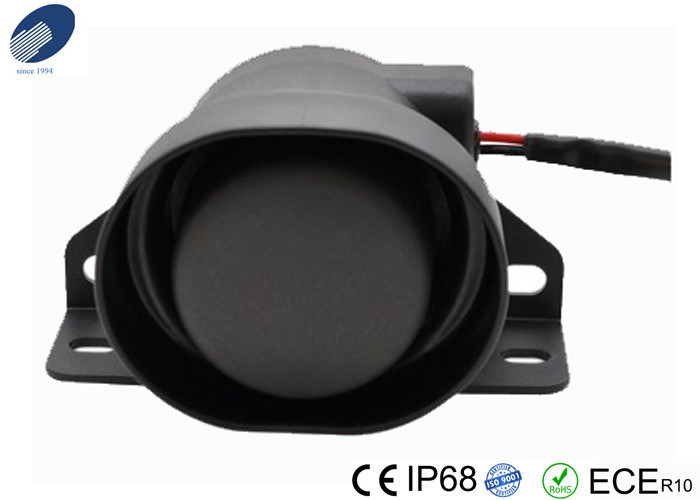

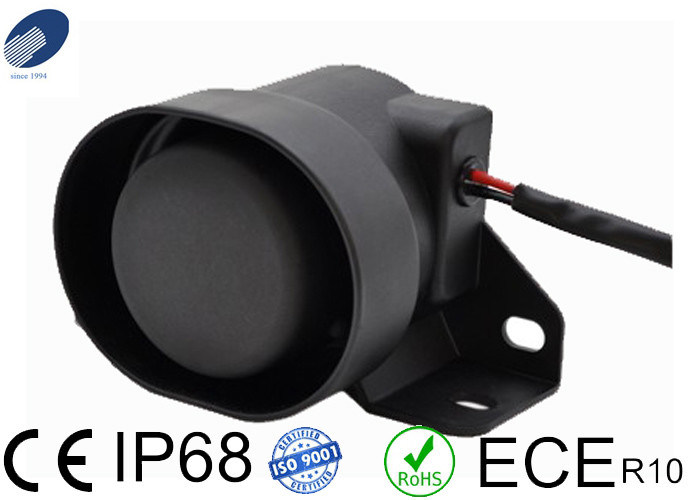

nylon 12-48V manual adjustable 97dB 107dB intelligent output beep sound IP68 backup alarm
General specifications:
| Output level | 97dB or 107dB ± 4dB at 1.2M |
| Voltage | 12-48VDC |
| Current drain | less than 0.6A |
| temperature range | -40 to 85 degree C |
| Frequency | 1400Hz ± 10% |
| Duty cycle | 0.85 pulse per second 50% ON 50% OFF |
| weight | 355g ± 10% |
| Dimensions | 129*69*74mm |
Applications:
For cars, trucks, construction machinery, with 12V to 48VDC system, made for heavy duty applications in medium or high noise area.
Main features:
Smart output, it could adjust its output at 97dB or 107dB, So it will be much safer and less annoying, with less noise pollution.
Reinforced nylon housing Glass filled nylon, commponents sealed with epoxy Designed to meet all hash conditions, provide splendid durability
IP68 Fully sealed with epoxy, well protected fagainst dust, moisture and vibration
Polarity protection It will not be damaged even you connect the polarity wrong
Easy to install and many connectors optional
Long warranty 24 months or longer
RoHS and CE
Similar products:
with same housing
| P/N | Voltage | Output | Remark |
| YS-B41 | 12-48V | 97 or 107dB | |
| YS-B43 | 12-48V | 107dB | bespoken message available |
| YS-B44 | 12-48V | 112dB |
Alarms of different housings
wire connection version ot studs version available for some housings
Connctors optional for wire connection versions
beep sound, white noise sound, vocal messages available for some models
Intelligent alarms with beep sound, white noise sound available.
Intelligent alarms with night mode, silent mode avaible.
Quick details for all series alarms
| Series | Size | Sound | Remark |
| B00 | 127*70*73.5mm | beep sound | intelligent models available |
| B10 | dia 60*46.3mm | beep sound | |
| B20 | 103.5*40.5*71mm | beep, white noise, bespoken message | intelligent models available |
| B30 | 103*44.5*68mm | beep, white noise, bespoken message | intelligent models available |
| B40 | 129*69*74mm | beep sound, bespoken message | manual adjustable available |
| B50 | 102*44.5*69.5mm | beep, white noise, bespoken message | intelligent models available |
| B60 | 127*95*77mm | beep, white noise, bespoken message | intelligent models available |
| B70 | 127.5*79*82mm | beep, white noise, bespoken message | models with night mode available |
| B80 S | 105*71.8*70mm | beep, white noise, bespoken message | models with night mode available |
| B80 L | 130*76*88mm | beep, white noise, bespoken message | models with night mode available |
| BJ | 58*30*59.5mm | beep, white noise, bespoken message | |
| B90 | beep, white noise, bespoken message | models with night mode available |
More information about the alarm:
Alarm drawing, sizes in mm
alarm production line, with operation instruction for all positions
Alarm in production test, to have a better quality
Alarm Lab tests, including general specs tests, enviromental tests, reliabity tests, to make sure alarms well designed, will work well as we design it.
feel free to let me know if you want to know more about our products and factory.
