Consumer Electronic Micro Precision Speakers 1.4W 16 ohm long service life

Basic Information
Place of Origin: China, Jiangsu, Changzhou
Brand Name: YUESEN
Certification: ISO2000, RoHS, REACH
Model Number: YD36-20B-16
Minimum Order Quantity: 10kpcs
Price: $0.2/pcs~$1/pcs
Packaging Details: Carton
Delivery Time: 2-4 weeks
Payment Terms: T/T, Western Union
Supply Ability: 1-1.5million/month
Detail Information
Product Name: Micro Precision Speakers Size: 36mm
Power: 1.4W Impedance: 16ohm
Sound Pressure Level: 82±2dB Frequency Response: F0-5.0kHz
High Light:

precision acoustics subwoofer

,

precision power component speakers


Product Description

YD36-20B-16 , consumer electronic Micro Precision Speakers 1.4W, 16ohm, with CE cetificate



We are a high-tech enterprise which integrates research, design, production and sales. Our products are widely used for TV, Mobile devices such as notebook, GPS, mobile DVD and so on.



General Specifications:

Dimensions 36mm
Rated Input Power 1.4W
Maximum Input Power 2.1W
Sound Pressure Level 82±2dB 0.1M/0.1W at 1.0, 1.2,1.5,2.0,2.5KHz
Impedance 16Ω±15%(at 1V)
Frequency Response F0~5.0kHz(-10dB)
Operation Must be normal. Program source 1.4W
Noise Must be normal. Sine wave 4.73V
Heat Test Shall be normal after test. 55±2℃ 16 hours
Humidity Test Shall be normal after test. 40±2℃ 90~95%RH  48 hours
Load Test

Shall be normal after test.

Input Power: 1.4W White Noise

Duration: 100 hours

Polarization

1.The terminal down ward(-)side(negative)pde.

2.Rerminal with(+) or red dotlabeled a positive.

Magnet Ф12.5X1.6 NdFeB
MATERIAL SIZE



Drawing:

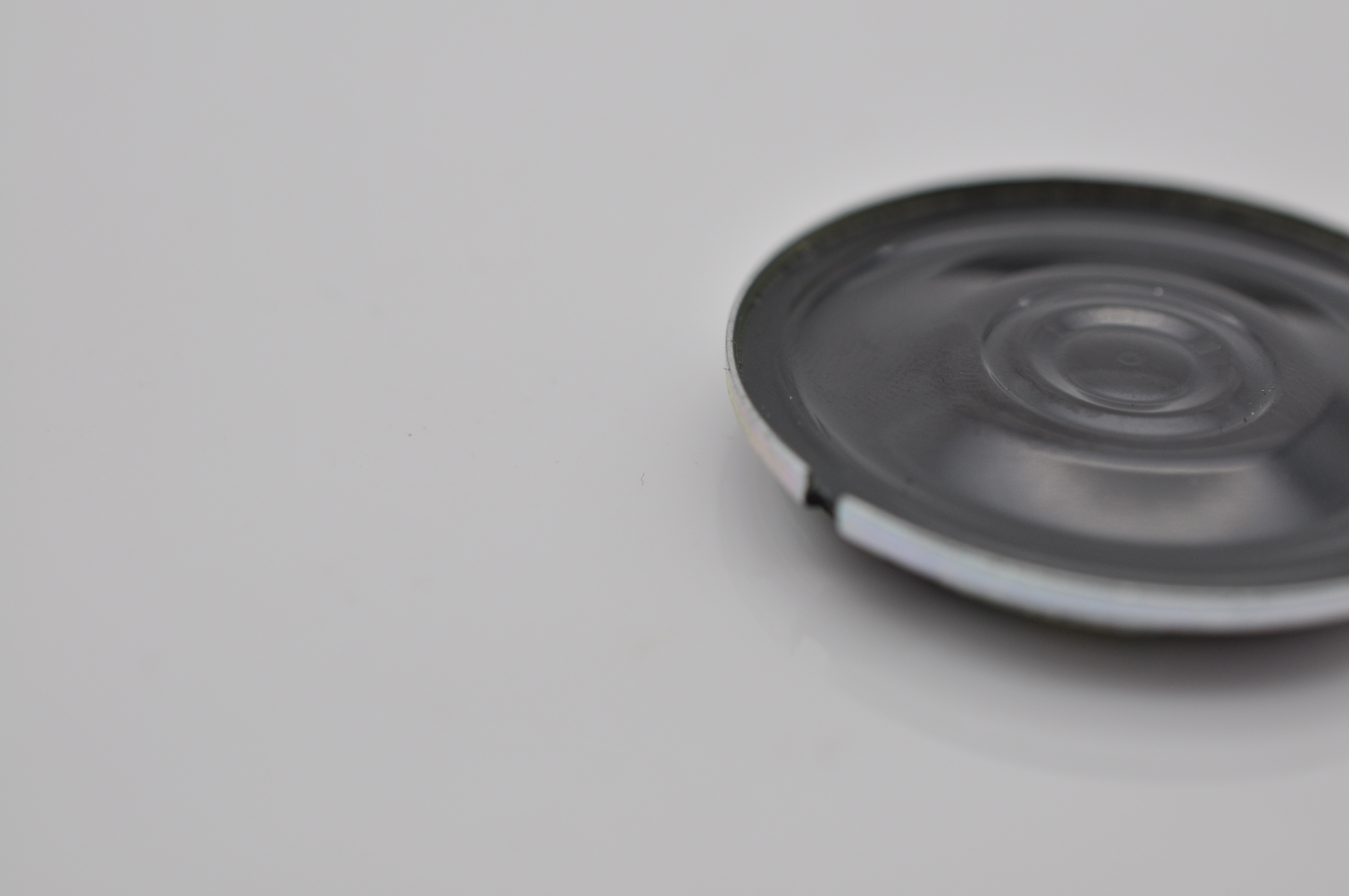

Consumer Electronic Micro Precision Speakers  1.4W  16 ohm long service life 0

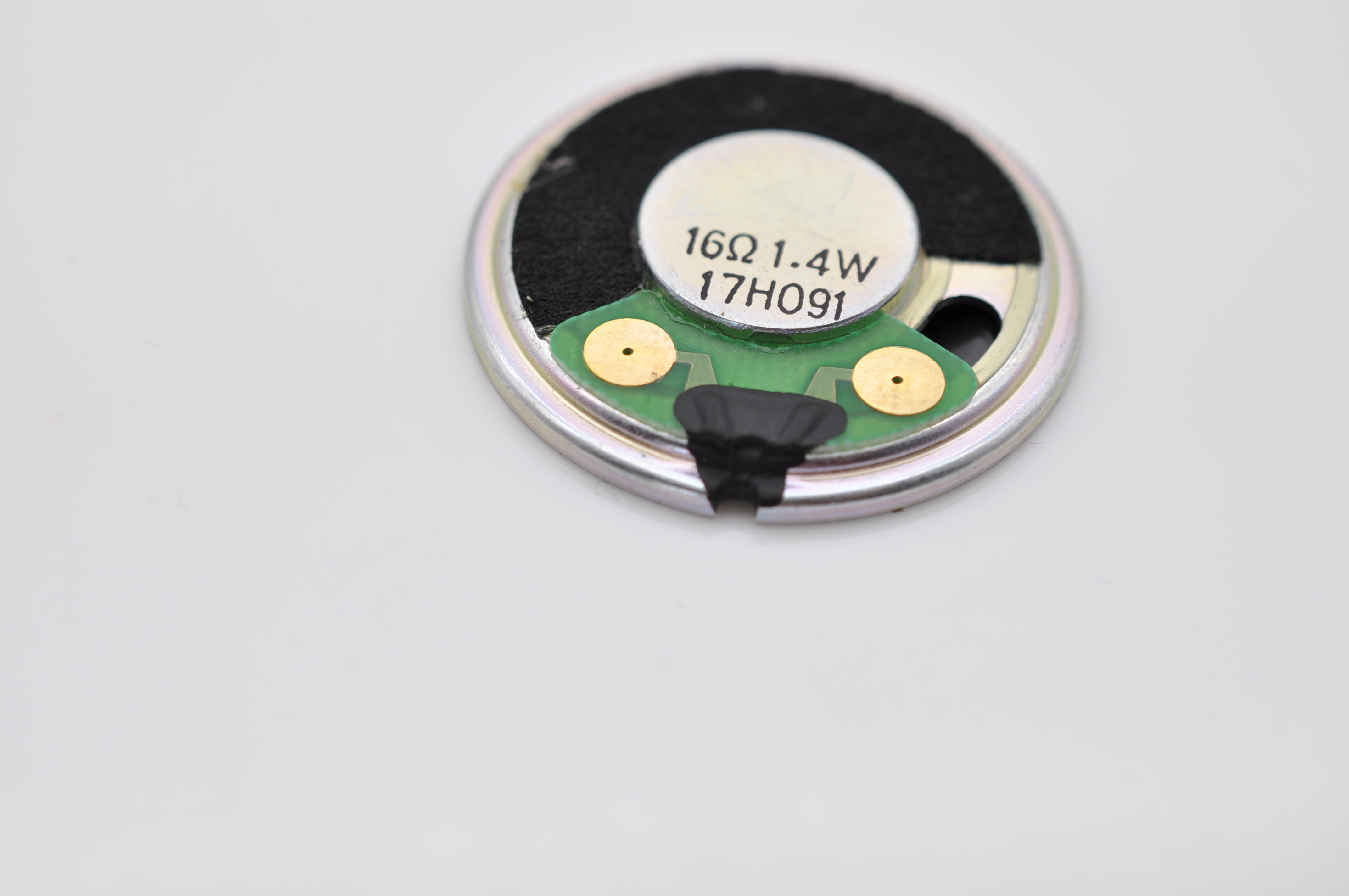

Consumer Electronic Micro Precision Speakers  1.4W  16 ohm long service life 1



Product Processing:

Consumer Electronic Micro Precision Speakers  1.4W  16 ohm long service life 2
