| Place of Origin: | China,Jiangsu,Changzhou |
|---|---|
| Brand Name: | Yuesonic |
| Certification: | CE,IP68,RoHS |
| Model Number: | YS-B15 |
| Minimum Order Quantity: | 100 |
| Price: | $5/pcs |
| Packaging Details: | 100pcs/carton |
| Delivery Time: | 3-5 work days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 30000pcs/month |
| Name: | Squawker Reverse Alarm | Output Level: | 100dB |
|---|---|---|---|
| Voltage: | 10-48V | Meterial: | ABS Plastic Shell |
| Color: | Black | Sealing: | Epoxy |
| High Light: | truck reverse horn,vehicle reverse beeping alarm |
||

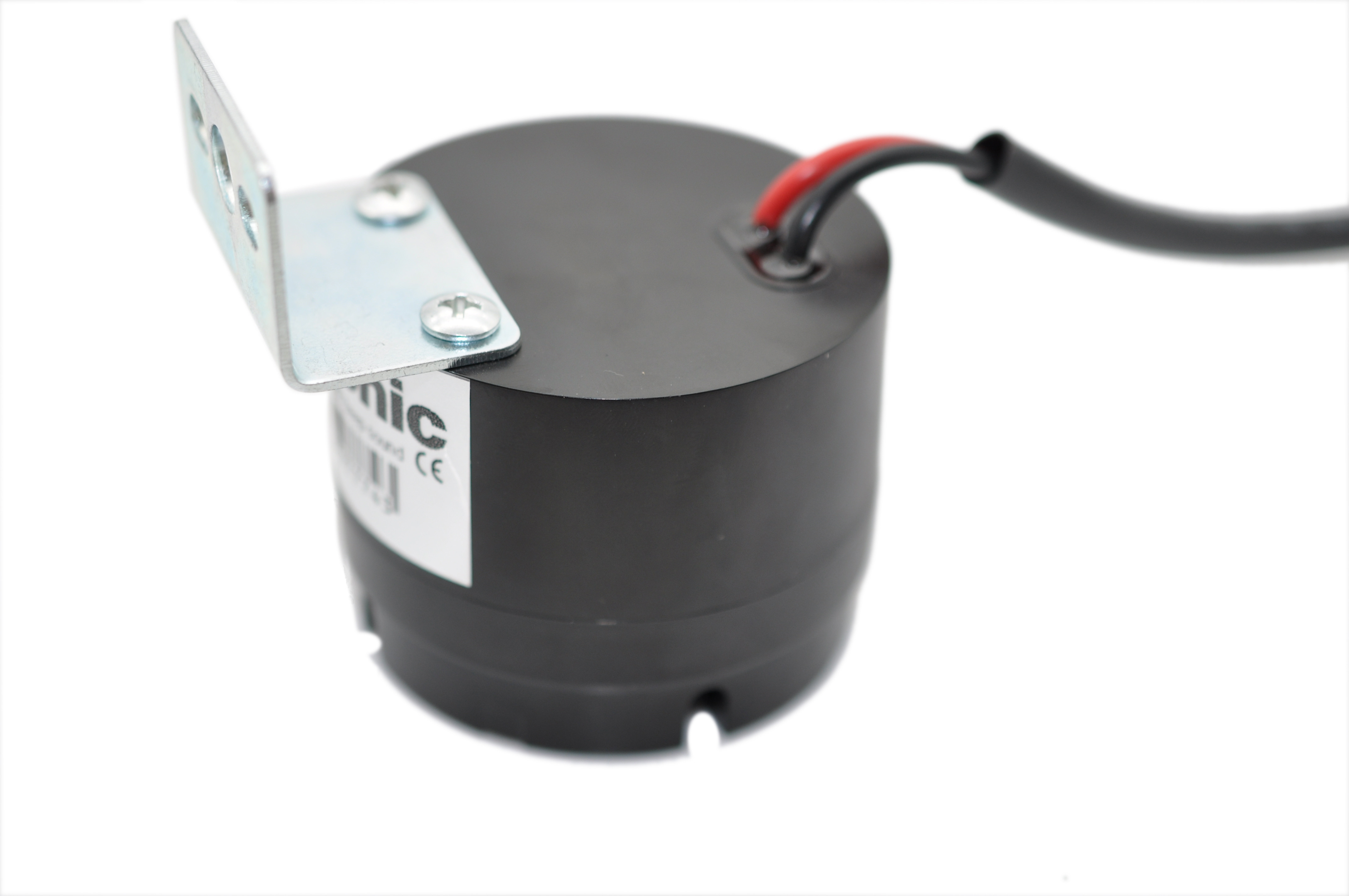

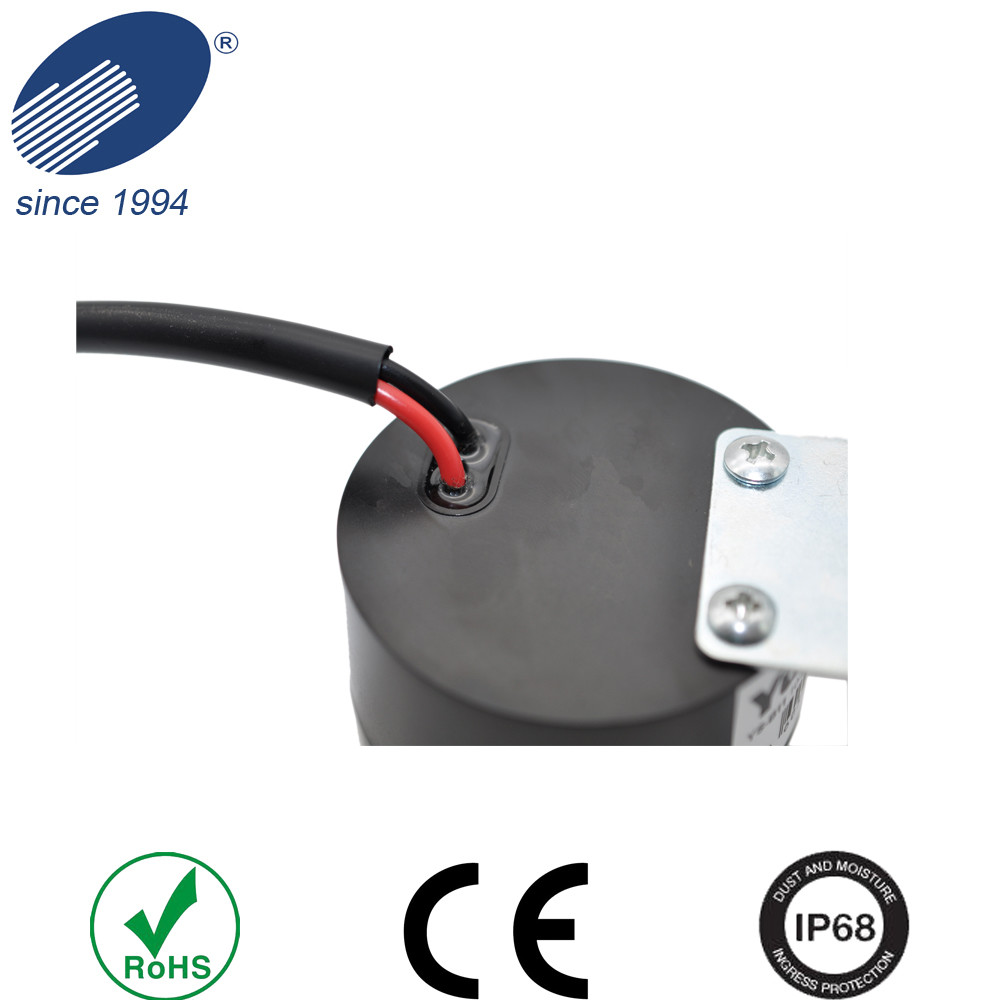

Light and Medium car duty applications, Squawker Reverse Alarm,10-48V, 100dB
This type is made for light/medium duty applications in low/medium areas. It is designed to provide effective warning sound and good durability at a lower cost. And vocal versions can be made according to your requirements
General Specifications:
| Size | 46.3*60*69mm |
| Output Level | 100±3dB(A) AT 4FT |
| Voltage | 10-48 VDC |
| Max Current Drain | 0.5A |
| Temperature Range | -30℃ - 65℃ |
| Frequency | 2800Hz±10% |
| Duty Cycle | 0.85 pulse per second-50% on 50% off |
| Weight | 82g |
| Alarm Sound | Beep Sound |
Advantages:
· Compact size and easy to install
· Reinforced plastic housing
· Voltage polarity protection
· RoHS compliant, CE certified
Drawing:
Product Processing:
Optional Connections:
