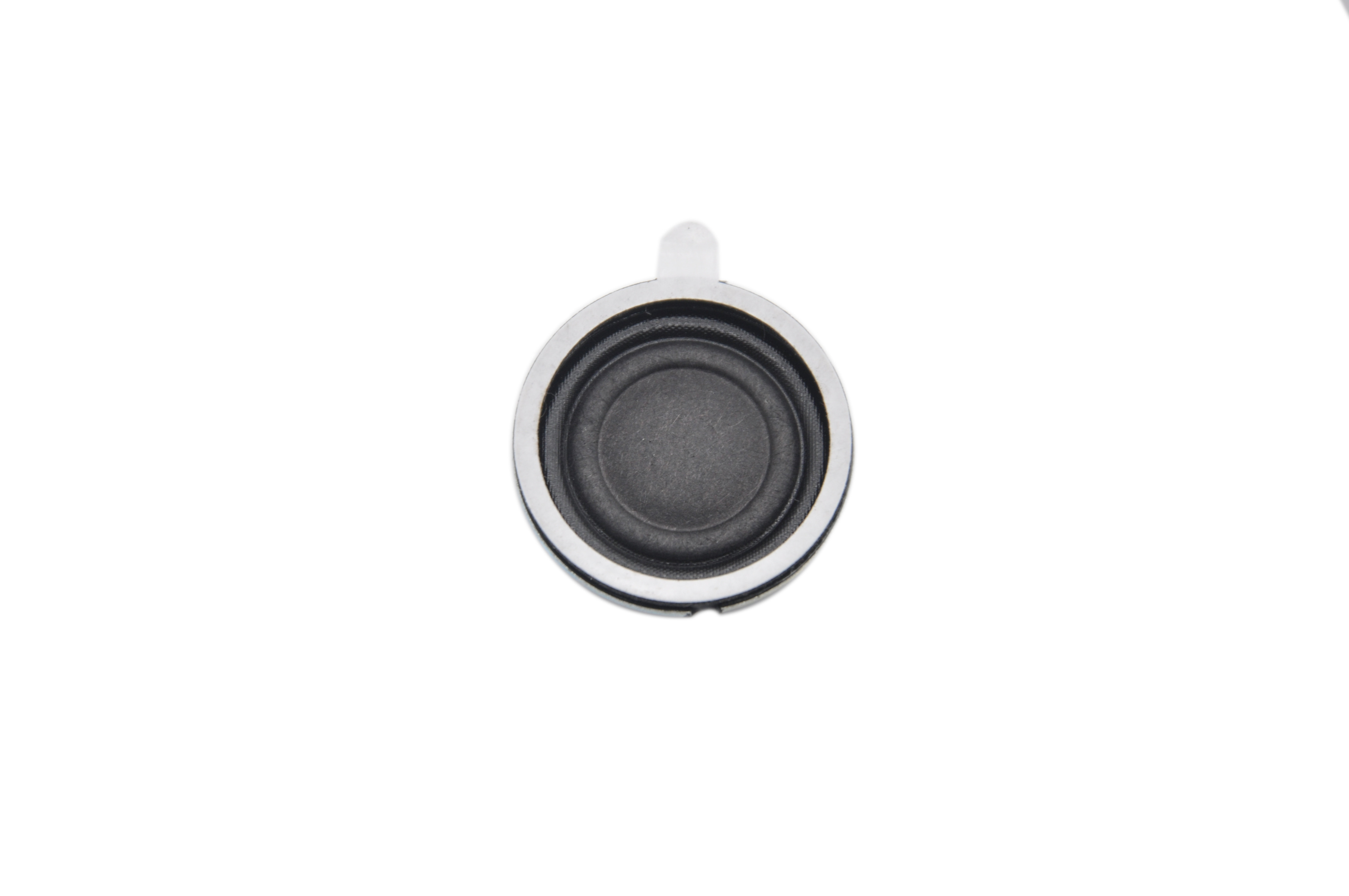

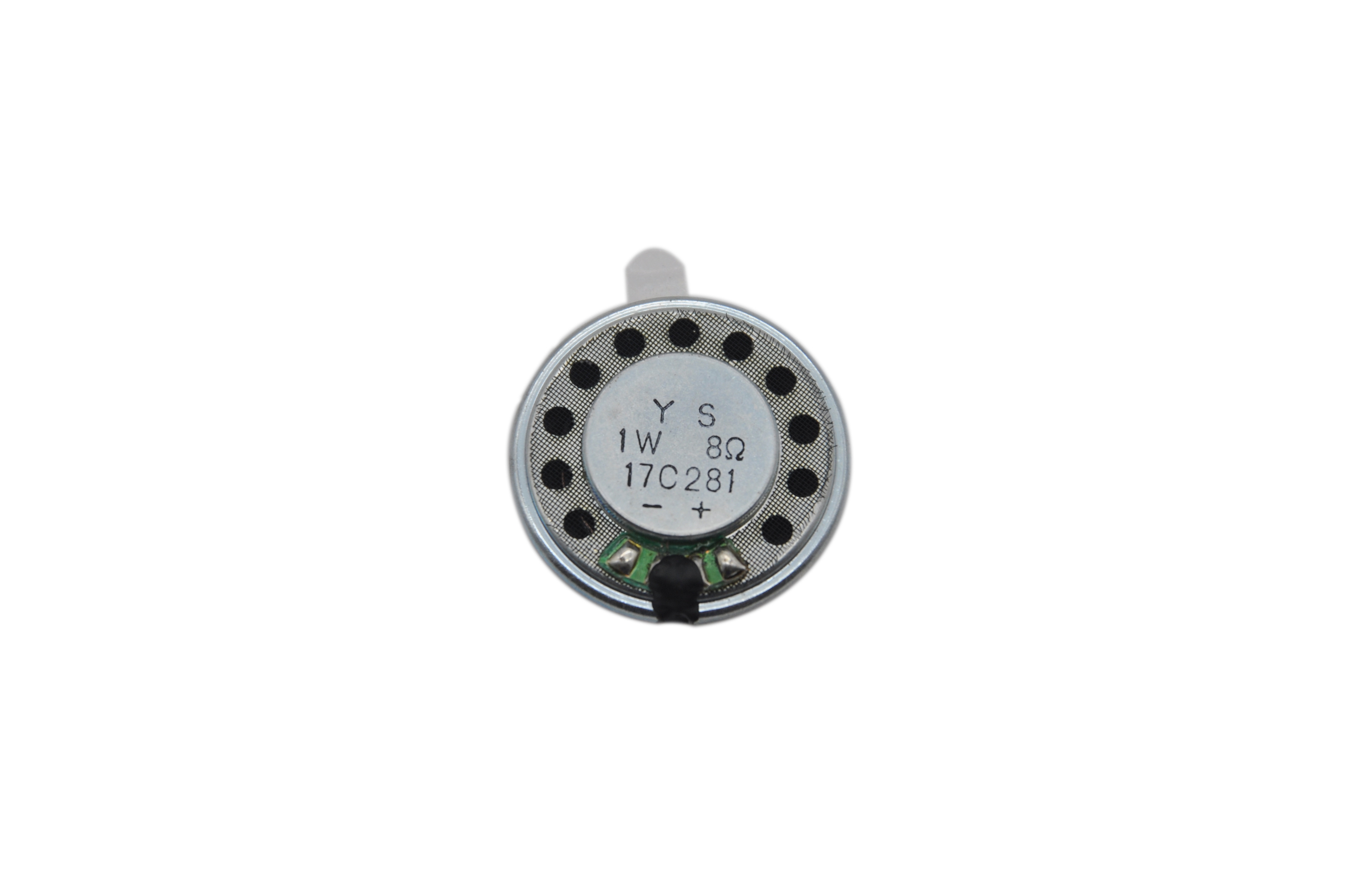

Metal Frame Micro Precision Speakers 28 Mm Paper Cone Full Range Micro Speaker

Basic Information
Place of Origin: CHINA
Brand Name: YS
Certification: RoHS REACH
Model Number: YD28-30B
Minimum Order Quantity: 5000 PCs
Price: USD 0.3 - 0.7/pc
Packaging Details: trays and carton
Delivery Time: 2-4 weeks
Payment Terms: L/C, T/T, D/P, Western Union
Supply Ability: 500000 Pcs/ Month
Detail Information
MATERIAL: Metal Frame Power: 1 Watt
Impedance: 8 Ohm Output: 90 DB
SIZE: 28*6.2 Mm TYPE: Micro Precision Speakers
High Light:

precision power component speakers

,

precision acoustics tower speakers


Product Description

28 mm metal frame paper cone full range micro speaker for doorbell precision device use speakers



General specifications:



Impedance  8 ohm
Rated power 1 Watt
Max. power 1.5 Watt
SPL sound pressure level 90 ± 3dB
Fo Lower resonance frequency 400Hz
Frequency reponse Fo - 20kHz
Material Metal frame
Magnet NdFeB
weight  7.0g
Dimensions 28*6.2 mm



Applications:

Used for doorbells,portable multimedia devices, precion equipment, medical equipments etc

Good for waterproof application with appropriate enclosure

Could also be use for multimedia devices, car electronics, smart home appliances, and IOT devices which need to play some souds more than beep one, like vocal warning messages, or musics.



Main advantages:

Good bass sound with paper cone, better sound with those with plastic ones

Full range response: lower Fo and upto 20kHz response

RoHs and REACH COMPLIANT All our spakers are RoHs and REACH conformed, vironmental friendly

Techical support Our factorry We have engaged in this field since 1994, any many experienced engineers, some more than 20 years.

Our technical support will be available through your project which may need some speakers.we can we can work together to improve our speaker, or your design to make them fit better.

Production fully under control: Fully monitored from incoming materials, and 100% checked in production, to make sure a good quality

In time after-sales: In case there is any defective, Our QC and engineers will feedback with 8D reports with in 24 hours.





What do we make:

We also make micro mylar speakers of all sizes, mainly waterproof ones, headphone speaker, handset spekers,and multimedia speaker for cars, car electronics, laptops, bluetooth players, alarms, televisions, ATMs, POS etc

Hifi speakers, line array speaker and some customized speaker could also be made according to your specfic requiments.



Drwaing and frequency reponse:

Metal Frame Micro Precision Speakers 28 Mm Paper Cone Full Range  Micro Speaker 0

Metal Frame Micro Precision Speakers 28 Mm Paper Cone Full Range  Micro Speaker 1



How we make it SPEAKRE PRODUCTION

Metal Frame Micro Precision Speakers 28 Mm Paper Cone Full Range  Micro Speaker 2

Metal Frame Micro Precision Speakers 28 Mm Paper Cone Full Range  Micro Speaker 3



feel free to let me know if you want to know more about our products and factory
