| Place of Origin: | China,Jiangsu,Changzhou |
|---|---|
| Brand Name: | Yuesonic |
| Certification: | CE,IP68,RoHS |
| Model Number: | YS-B43 |
| Minimum Order Quantity: | 20 |
| Price: | $12/pcs |
| Packaging Details: | 20pcs/carton, carton size: 43.5*30*25cm |
| Delivery Time: | 3-5 work days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 30000pcs/month |
| Name: | Car Reverse Horn | Output Level: | 107±4dB |
|---|---|---|---|
| Voltage: | 10-48V | Meterial: | Nylon |
| Color: | Black | Sealing: | Epoxy |
| High Light: | backup alert beeper,back up siren |
||

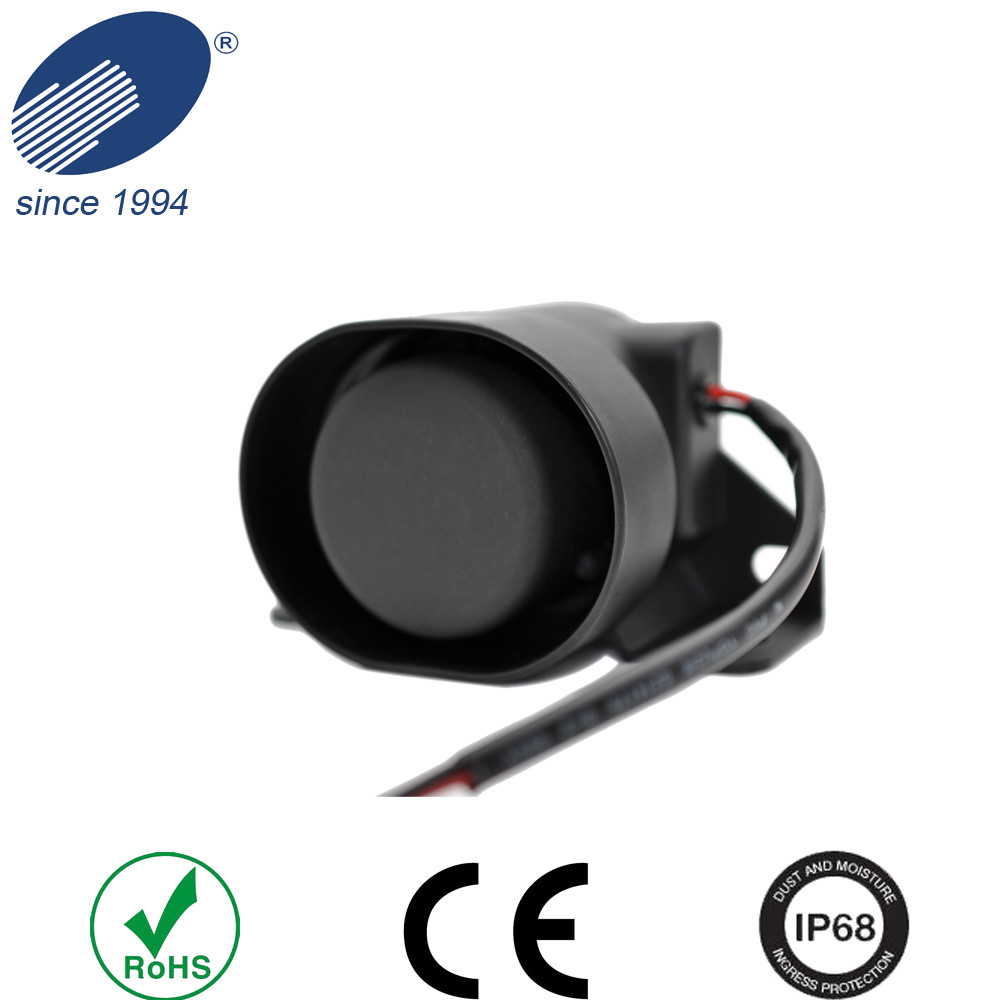

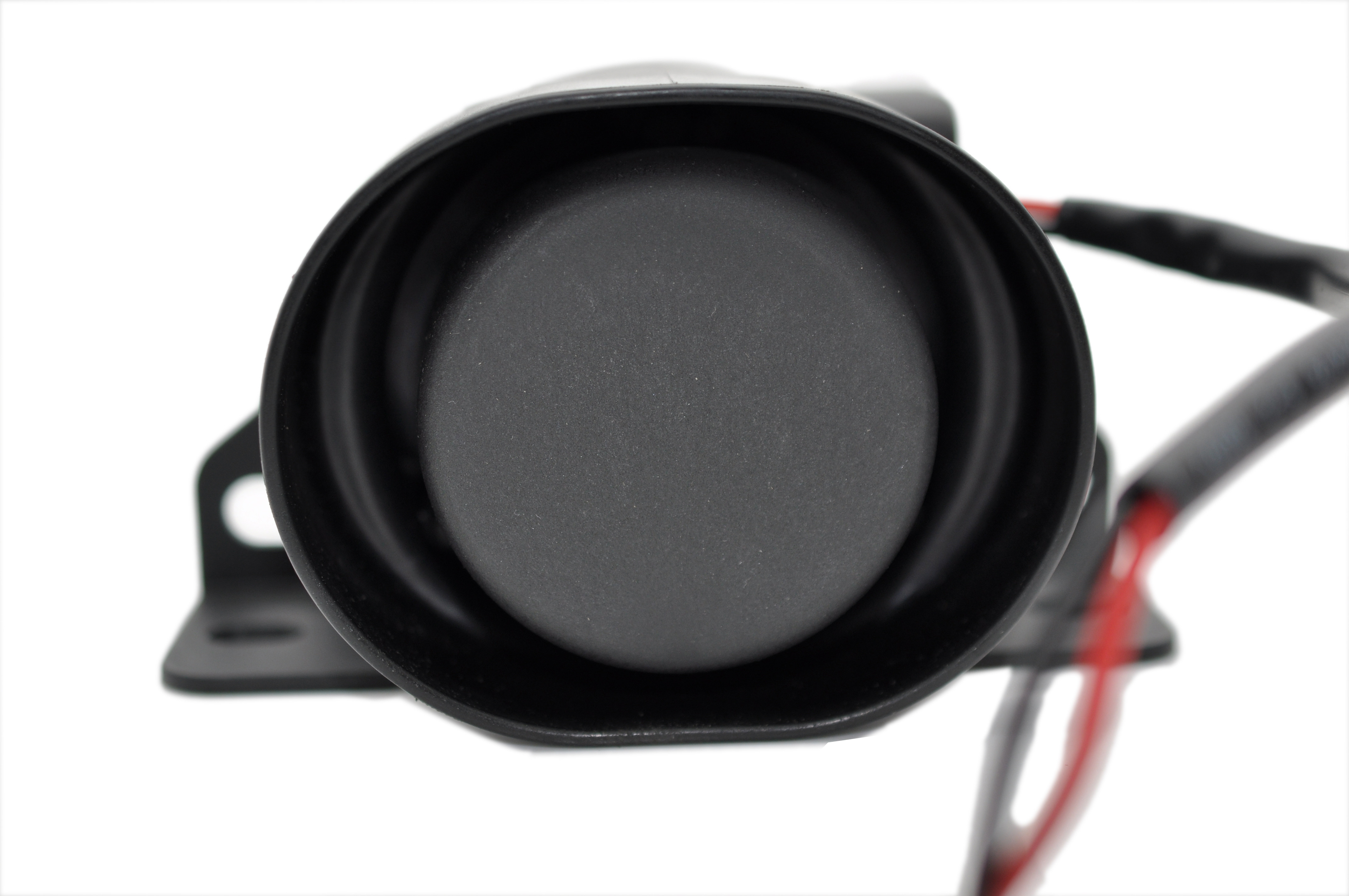

truck back up alarm reverse alarm 107dB 10-48V safety Car Reverse Horn with CE/RoHS certification
This type is made for customization, with beautiful appearance. A glass-filled nylon housing with epoxy-encapsulated electronics provide exceptional durability and protection against moisture, dust and vibration.
You could decide what the voltage and output will be, or intelligent one that measures the ambient noise level and adjust their output level.
General Specifications:
| Size | 129*69*74mm |
| Output Level | 107±4dB(A) AT 4FT |
| Voltage | 10-48 VDC |
| Max Current Drain | 0.6A |
| Temperature Range | -40℃ - 85℃ |
| Frequency | 1400Hz±10% |
| Duty Cycle | 0.85S±10% (-50% On 50% Off) |
| Weight | 355g |
| Alarm Sound | Customizable |
Advantages:
· Compact size and easy to install
· Reinforced nylon housing
· Voltage polarity protection
· RoHS compliant, CE certified
Drawing:
Product Processing:
Optional Connections:
