| Place of Origin: | CHINA |
|---|---|
| Brand Name: | YUESONIC |
| Certification: | CE |
| Model Number: | YS-B81 S |
| Minimum Order Quantity: | 30 PCs |
| Price: | USD15-USD 30/pc |
| Packaging Details: | Individual neutral box, 30 pcs per carton |
| Delivery Time: | 2-4 weeks |
| Payment Terms: | T/T, D/P, Western Union |
| Supply Ability: | 10000 Pcs/ Month |
| MATERIAL: | Glass Filled Nylon | VOLTAGE: | For 12,24 Systems |
|---|---|---|---|
| OUTPUT: | 90 To100 DB | CURRENT: | Less Than 0.6A |
| TEMPERATURE: | -40-85℃ Operation | Dimension: | 105*71.8*70 Mm |
| WEIGHT: | Around 375g | Product Name: | Vehicle Reverse Alarm |
| High Light: | back up beeper sound,reverse beeper |
||

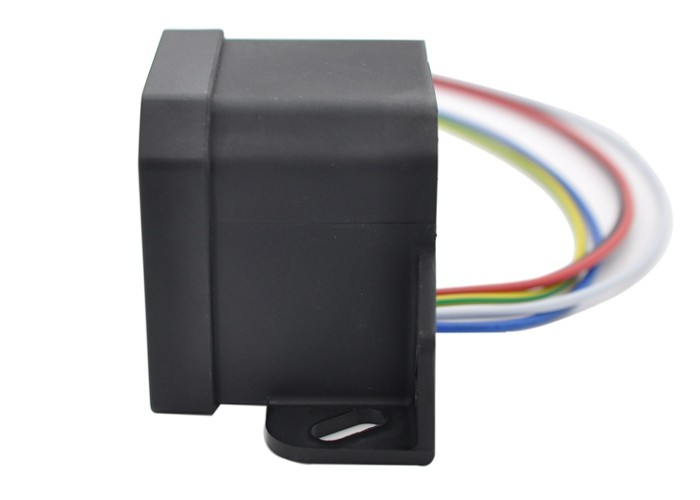

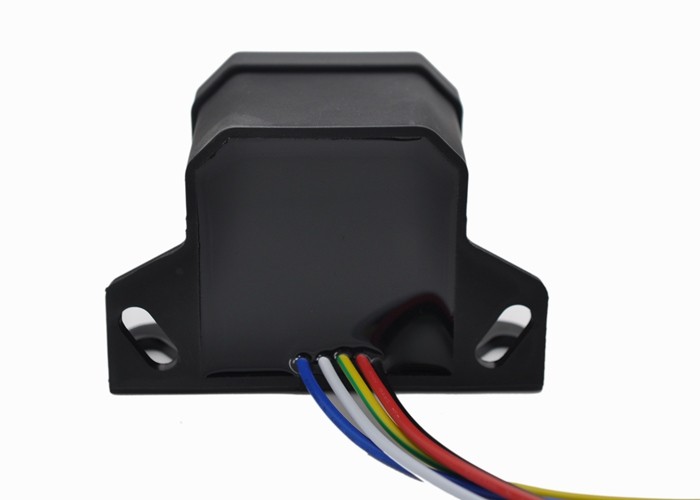

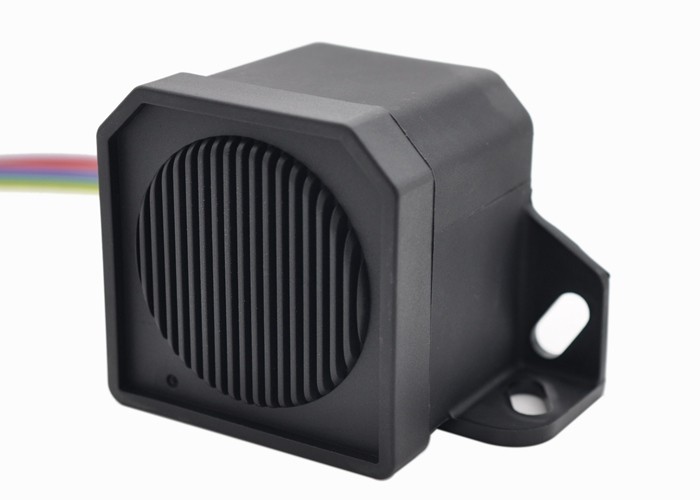

CE certificate glass filled nylon IP68 multi sounds vehicle reverse alarm
General specifications:
| Output level | 90-100dB ± 4dB at 1.2M |
| Voltage | 12-24V systems |
| Current drain | less than 0.6A |
| temperature range | -40 to 85 degree operation |
| Frequency | multi frequency |
| Duty cycle | depends |
| weight | 375g ± 10% |
| Dimensions | 105*71.8*70mm |
Applications:
For cars and trucks etc, 12v or 24v systems application, multi warning messages may be included in the same alarm unit, left turning, right turning, and reverse warning. beep sound, squawker, or bespoken voice messages..
Main features:
Many sound types optional beep sound, squawker, or bespoken voice messages,or many sounds into one alarm
Metal housing Designed to meet all hash conditions, provide splendid durability
IP68 Fully sealed with epoxy, well protected fagainst dust, moisture and vibration
Polarity protection It will not be damaged even you connect the polarity wrong
Easy to install and many connectors optional
Long warranty 24 months or longer
RoHS and CE
Similar products:
with same housing
| P/N | Voltage | Output | Remark |
| YS-B81 S | 12-24V | 97dB | squawker |
| YS-B82 S | 12-24V | 97dB | beep sound |
| YS-B83 S | 12-24V | 97dB | bespoken messages |
Alarms of different housings
More information about the alarm:
Alarm drawing, sizes in mm
alarm production line, with operation instruction for all positions
Alarm in production test, to have a better quality
Alarm Lab tests, including general specs tests, enviromental tests, reliabity tests, to make sure alarms well designed, will work well as we design it.
feel free to let me know if you want to know more about our products and factory.
