| Place of Origin: | CHINA |
|---|---|
| Brand Name: | YUESONIC |
| Certification: | CE |
| Model Number: | YS-B32W-WN |
| Minimum Order Quantity: | 40 PCs |
| Price: | USD5-USD 10/pc |
| Packaging Details: | Individual neutral box, 40 pcs per carton |
| Delivery Time: | 2-4 weeks |
| Payment Terms: | L/C, T/T, D/P, Western Union |
| Supply Ability: | 30000 PCs / Month |
| MATERIAL: | Reinforced Nylon | VOLTAGE: | 12 And 24 Dual Voltage |
|---|---|---|---|
| OUTPUT: | 102 DB | CURRENT: | MAX 0.6A |
| TEMPERATURE: | -40 To 85℃ Operation | FREQUENCY: | Multi Frequency |
| SIZE: | 103*44.5*68 Mm | TYPE: | Squawker Reverse Alarm |
| High Light: | car backup alarm,vehicle reverse beeping alarm |
||

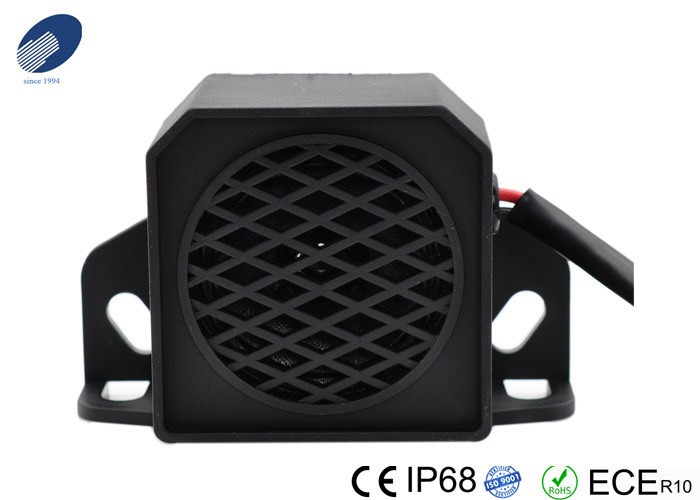

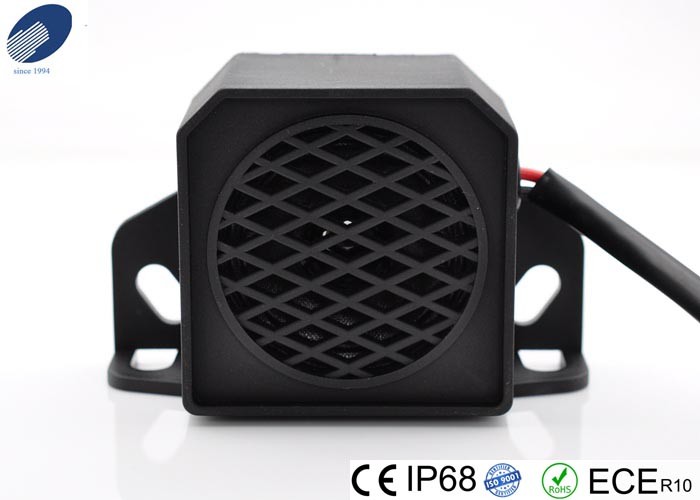

102dB output multi frequency squawker reverse alarm EMARK white noise reverse alarm IP68 waterproof reversing alarm
General specifications:
| Output level | 102dB ± 4dB at 1.2M |
| Voltage | 12-24VDC |
| Current drain | less than 0.6A |
| temperature range | -40 to 85 degree C |
| Frequency | broad band |
| Duty cycle | 0.85 pulse per second 50% ON 50% OFF |
| weight | 320g ± 10% |
| Dimensions | 103*44.5*68 mm |
Applications:
For equipments and vehicles like,cars, trucks, construction machinery, with 12V and 24V DC system, made for heavy duty applications in medium or high noise area.
You can also make it with beep sound, dual frequency or multifrequency sound,or warning messages of English or any other languages
Main features:
Squawk white noise sound dissipates much quicker than regular beeping Alarms
Multi volt ranging from 12-48 VDC
Multi broadband Volume 102db.
Compact size with universal mounting bracket maximising location options
High pressure washable
Reverse polarity protection
RoHS and CE
Similar products:
More information about the alarm:
Alarm drawing, sizes in mm
alarm production line, with operation instruction for all positions
Alarm in production test, to have a better quality
Alarm Lab tests, including general specs tests, enviromental tests, reliabity tests, to make sure alarms well designed, will work well as we design it.
feel free to let me know if you want to know more about our products and factory.
