3W 8ohm Raw Audio Speakers For TV Mobile Devices ISO2000 Certification

Basic Information
Place of Origin: China, Jiangsu, Changzhou
Brand Name: YUESEN
Certification: ISO2000, RoHS, REACH
Model Number: YDP3070-8
Minimum Order Quantity: 10kpcs
Price: $0.2/pcs~$1/pcs
Packaging Details: Carton
Delivery Time: 2-4 weeks
Payment Terms: T/T, Western Union
Supply Ability: 1-1.5million/month
Detail Information
Product Name: Raw Audio Speakers Size: 30*70mm
Power: 3W Impedance: 8ohm
Sound Pressure Level: 80±3dB Frequency Response: F0-8kHz
High Light:

raw subwoofer

,

car woofer speaker


Product Description

YDP3070-8 , commonly used accessories Raw Audio Speakers 3W,8ohm



We are a high-tech enterprise which integrates research, design, production and sales. Our products are widely used for TV, Mobile devices such as notebook, GPS, mobile DVD and so on.



General Specifications:

Dimensions 30*70mm
Rated Input Power 3W
Maximum Input Power 5W
Sound Pressure Level 80±3dB 1M/1W At 0.8,1.0, 1.5, 2.0KHz
Impedance 8Ω±15%
Frequency Response F0~8kHz(-10dB)
Operation Must be normal. Program source 3W
Noise Must be normal. Sine wave 4.9V
Heat Test Shall be normal after test. 55±2℃ 96 hours
Total Flux

Max Well

Humidity Test Shall be normal after test. 40±2℃ 90~95%RH  16 hours
Load Test

Shall be normal after test.

Input Power: 3W White Noise

Duration: 100 hours

Polarization

When a positive DC current is applied to the terminal marked(+), diaphragm shall move forward

Net Weight 20.6±1.5g

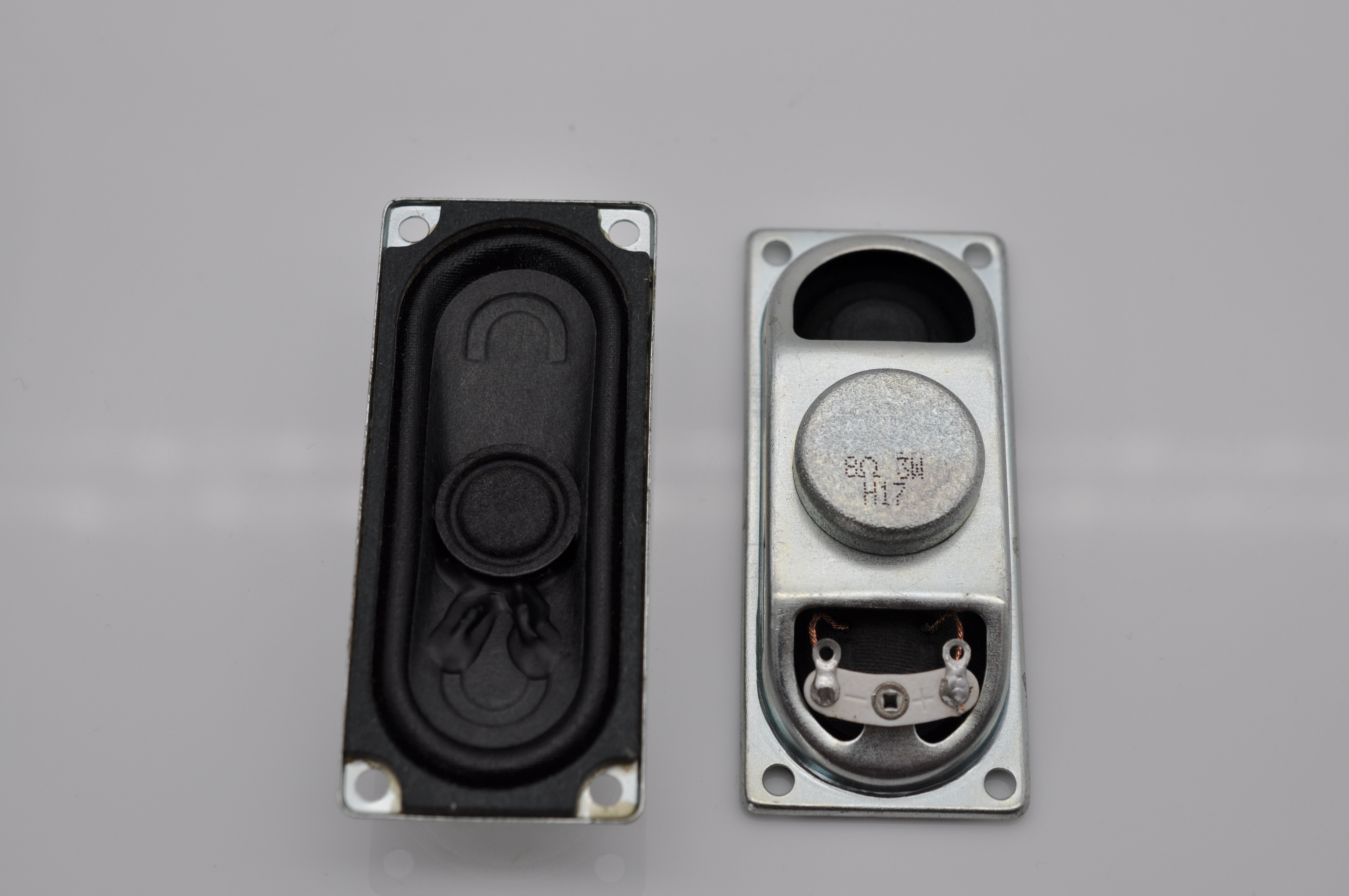

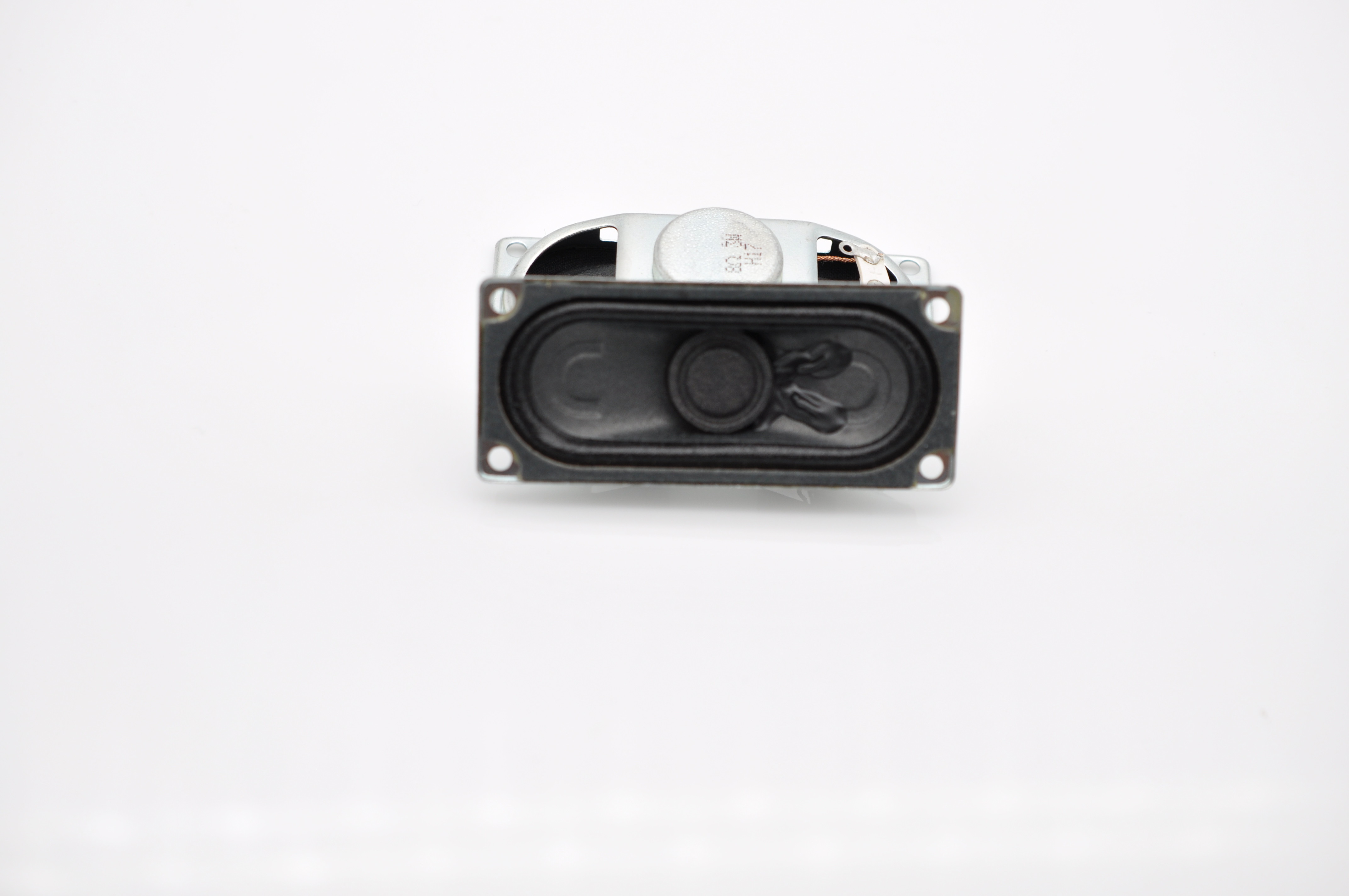

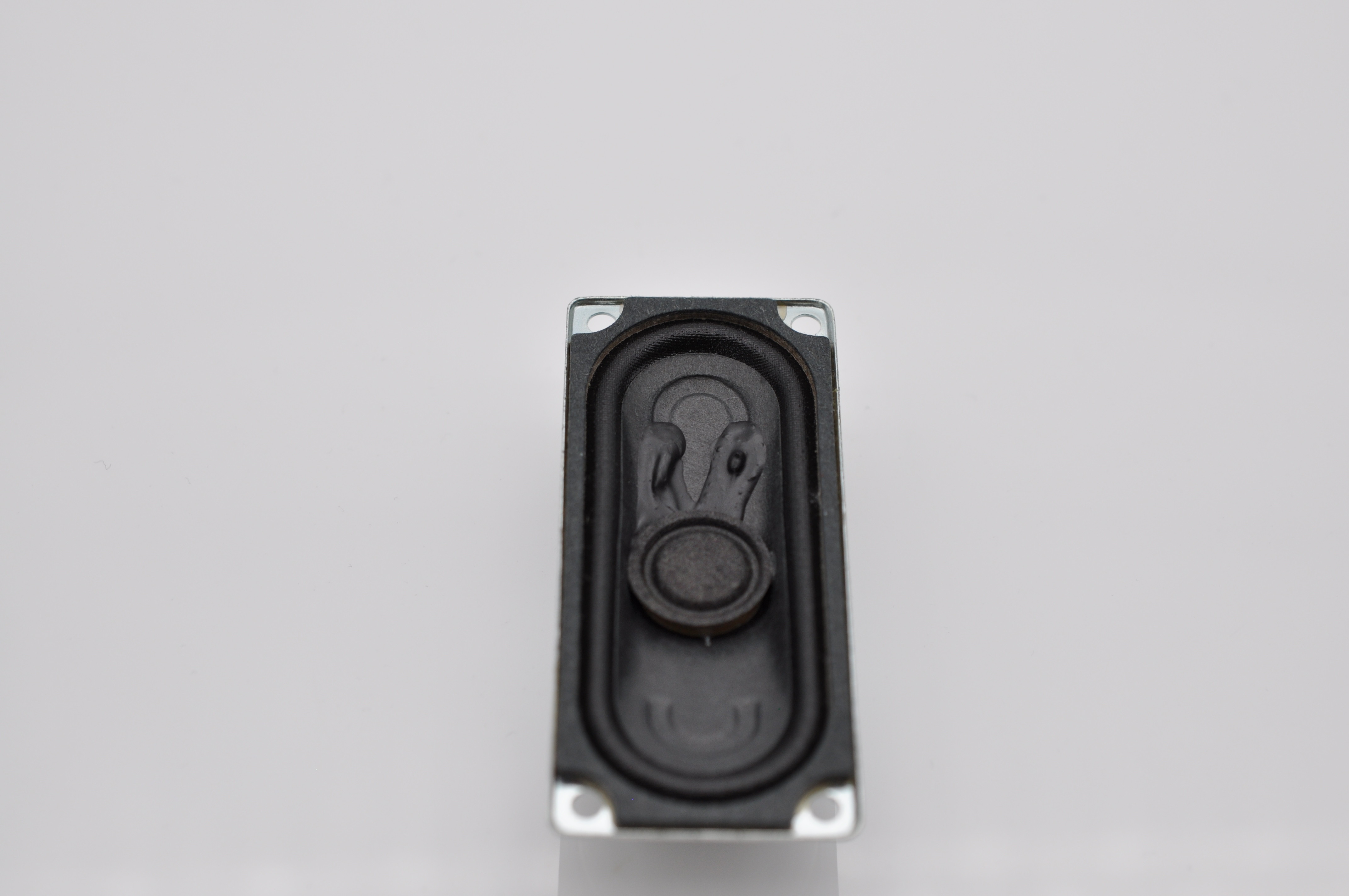

Drawing:

3W  8ohm Raw Audio Speakers For TV Mobile Devices ISO2000 Certification 0



3W  8ohm Raw Audio Speakers For TV Mobile Devices ISO2000 Certification 1

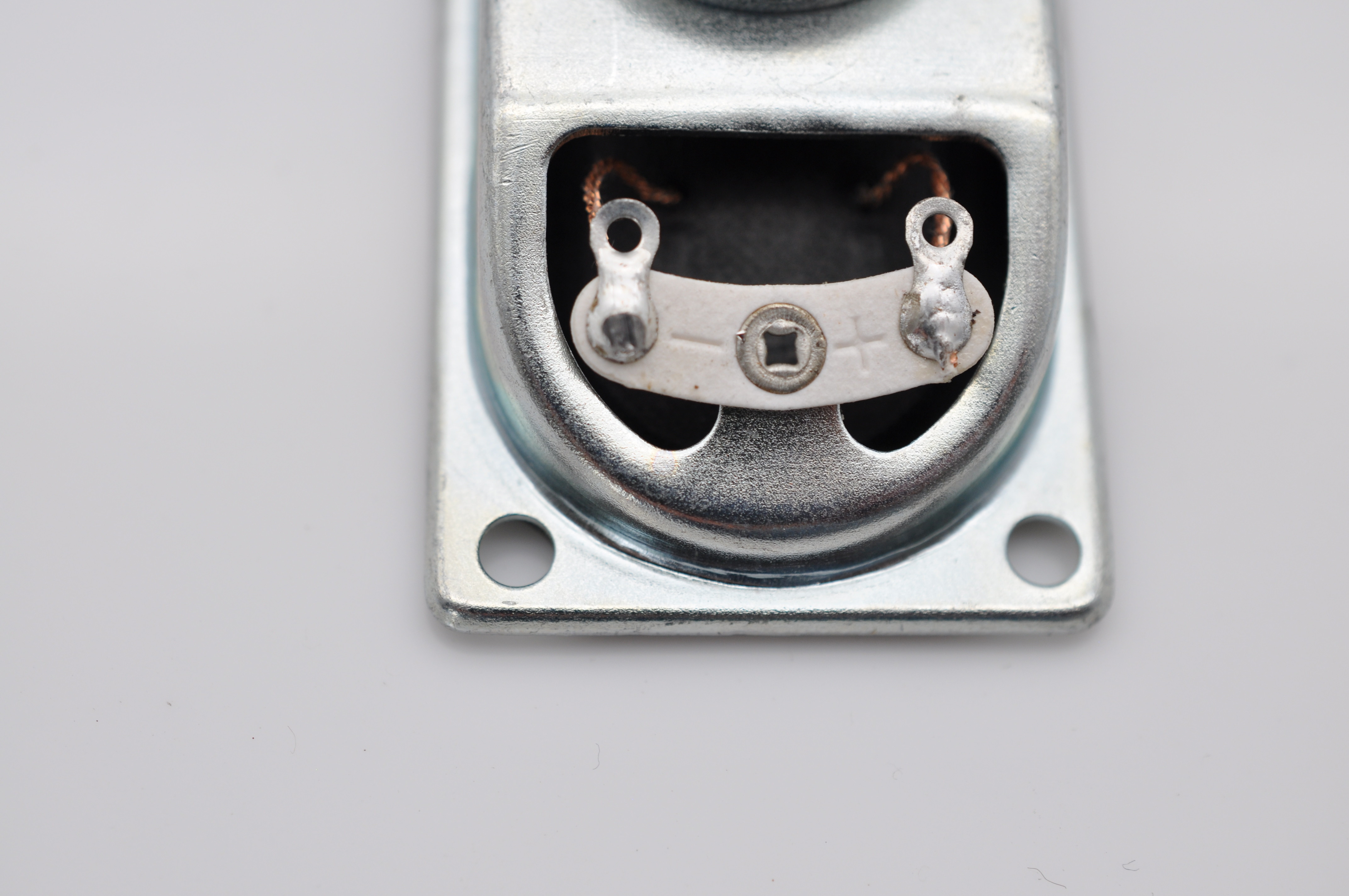

Product Processing:

3W  8ohm Raw Audio Speakers For TV Mobile Devices ISO2000 Certification 2
