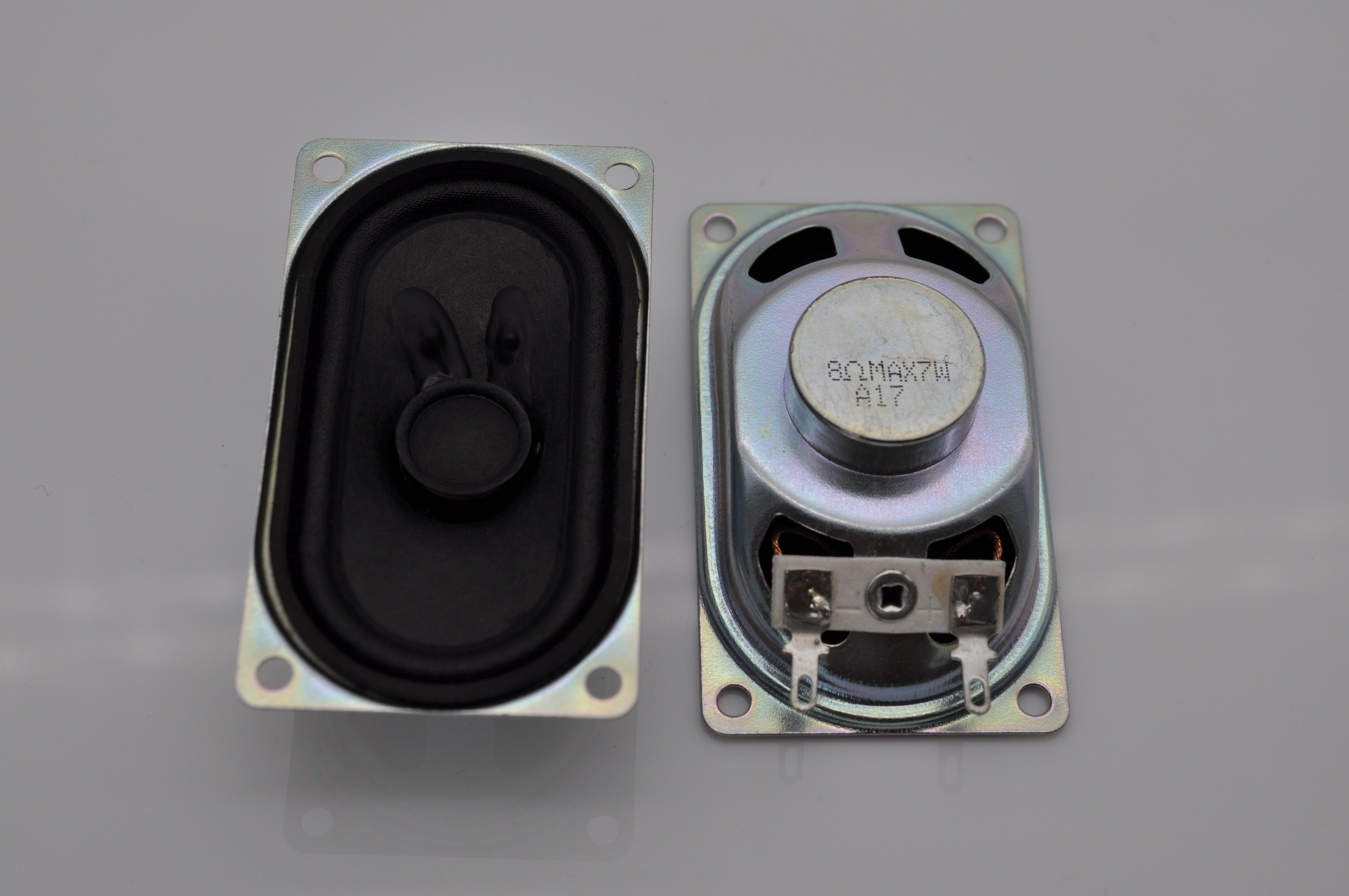

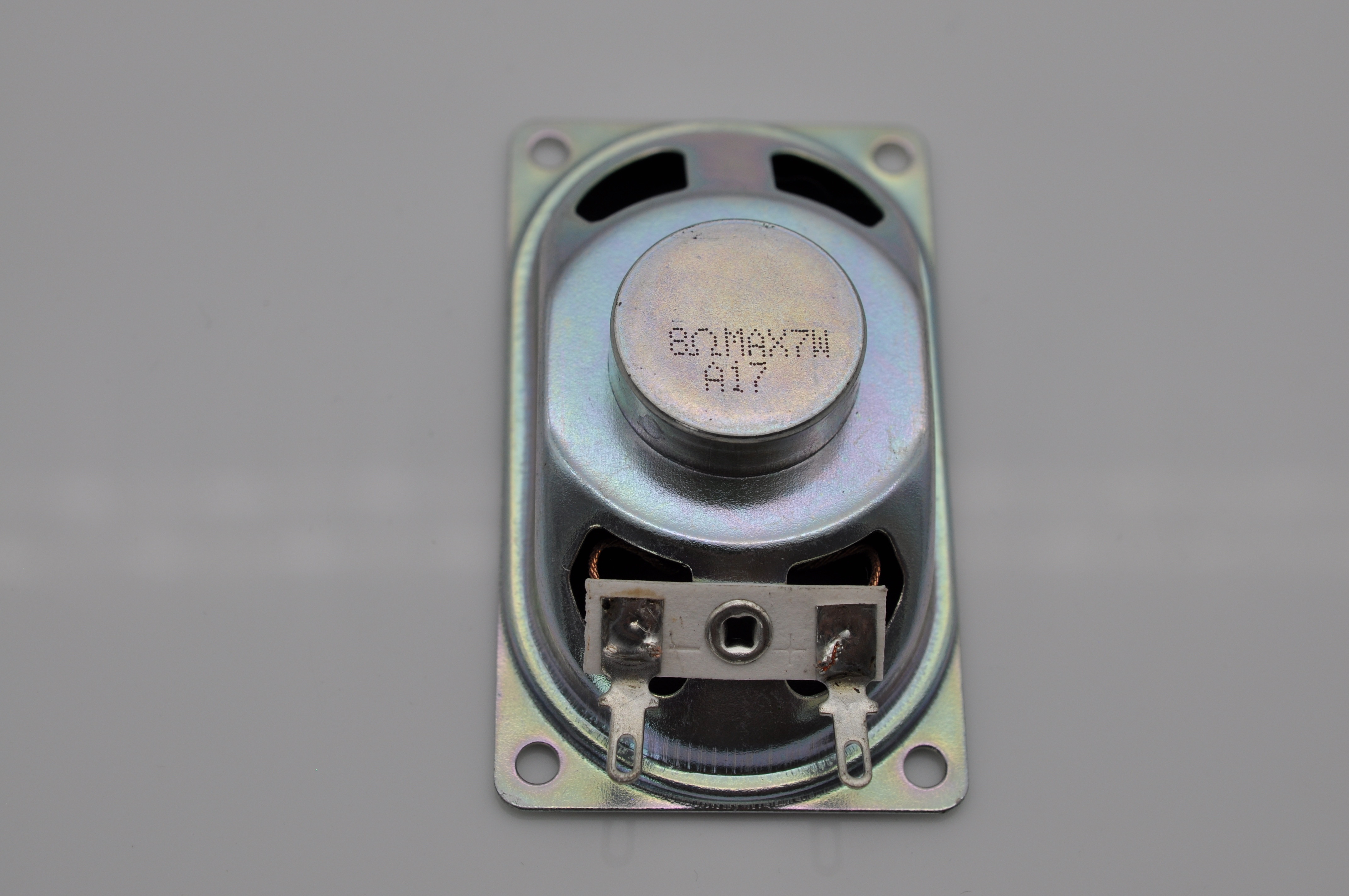

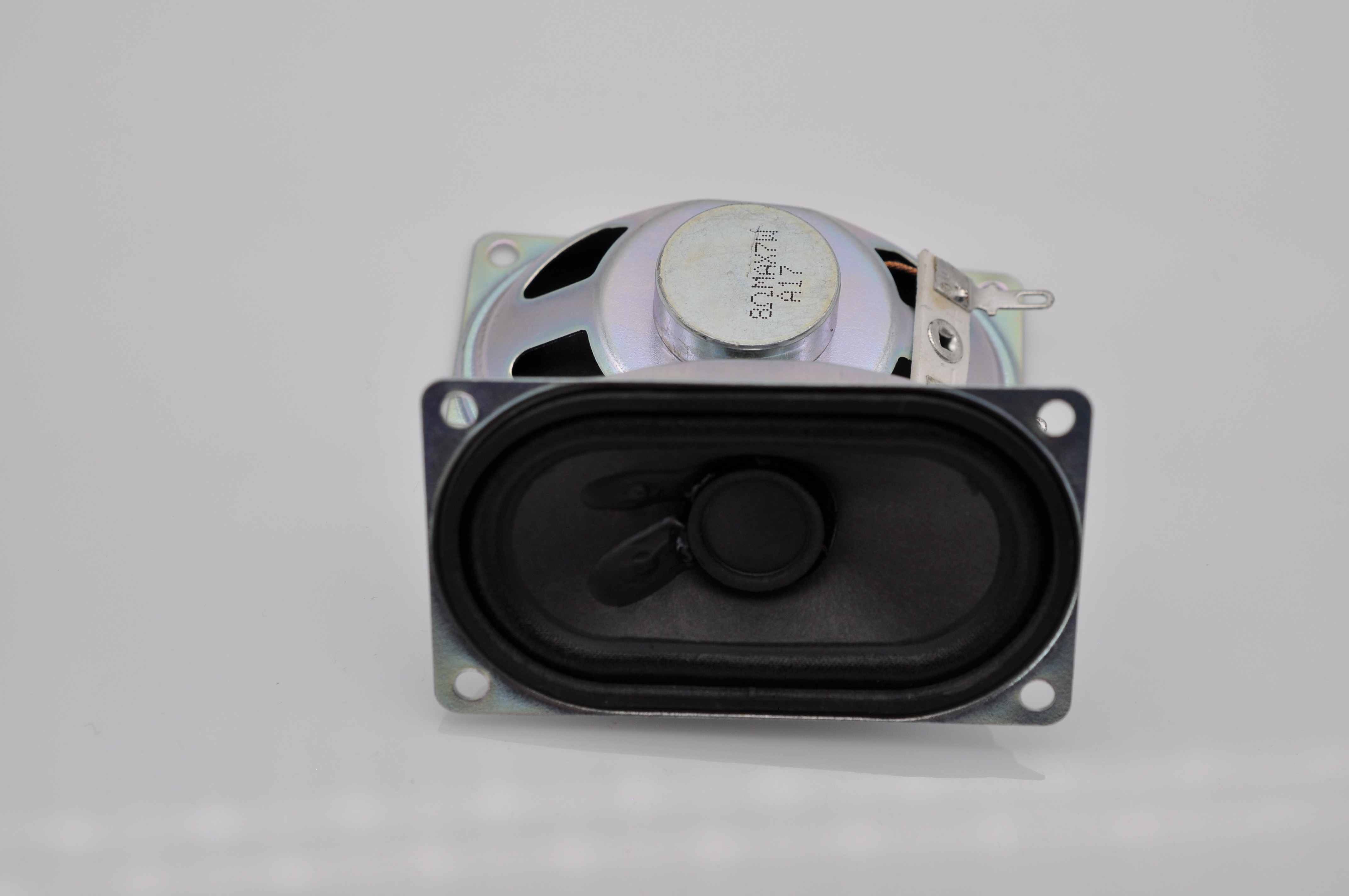

High Precision Raw Speakers 5W 8ohm high tech Commonly Used Accessories

Basic Information
Place of Origin: China, Jiangsu, Changzhou
Brand Name: YUESEN
Certification: ISO2000, RoHS, REACH
Model Number: YDP4070-20
Minimum Order Quantity: 10kpcs
Price: $0.2/pcs~$1/pcs
Packaging Details: Carton
Delivery Time: 2-4 weeks
Payment Terms: T/T, Western Union
Supply Ability: 1-1.5million/month
Detail Information
Product Name: Raw Audio Speakers Size: 41*71mm
Power: 5W Impedance: 8ohm
Sound Pressure Level: 80±2dB Frequency Response: F0-20kHz
High Light:

raw frame speakers

,

car woofer speaker


Product Description

YDP3070-8 , commonly used accessories Raw Audio Speakers 3W,8ohm



We are a high-tech enterprise which integrates research, design, production and sales. Our products are widely used for TV, Mobile devices such as notebook, GPS, mobile DVD and so on.



General Specifications:

Dimensions 41*71mm
Rated Input Power 5W
Maximum Input Power 7W
Sound Pressure Level 80±2dB 1M/1W At 0.6, 0.8,1.0, 1.5KHz
Impedance 8Ω±15%
Frequency Response F0~20kHz(-20dB)
Operation Must be normal. Program source 5W
Noise Must be normal. Sine wave 6.3V
Heat Test Shall be normal after test. 55±2℃ 16 hours
Cold Test

-10± 3℃ 1h
-25± 3℃ 2h

Humidity Test Shall be normal after test. 40±2℃ 90~95%RH  96 hours
Load Test

Shall be normal after test.

Input Power: 5W White Noise

Duration: 100 hours

Polarization

When a positive DC current is applied to the terminal marked(+), diaphragm shall move forward

Harmonic Distortion Max 7%



Drawing:

High Precision Raw Speakers 5W 8ohm high tech Commonly Used Accessories 0



High Precision Raw Speakers 5W 8ohm high tech Commonly Used Accessories 1



Product Processing:

High Precision Raw Speakers 5W 8ohm high tech Commonly Used Accessories 2
