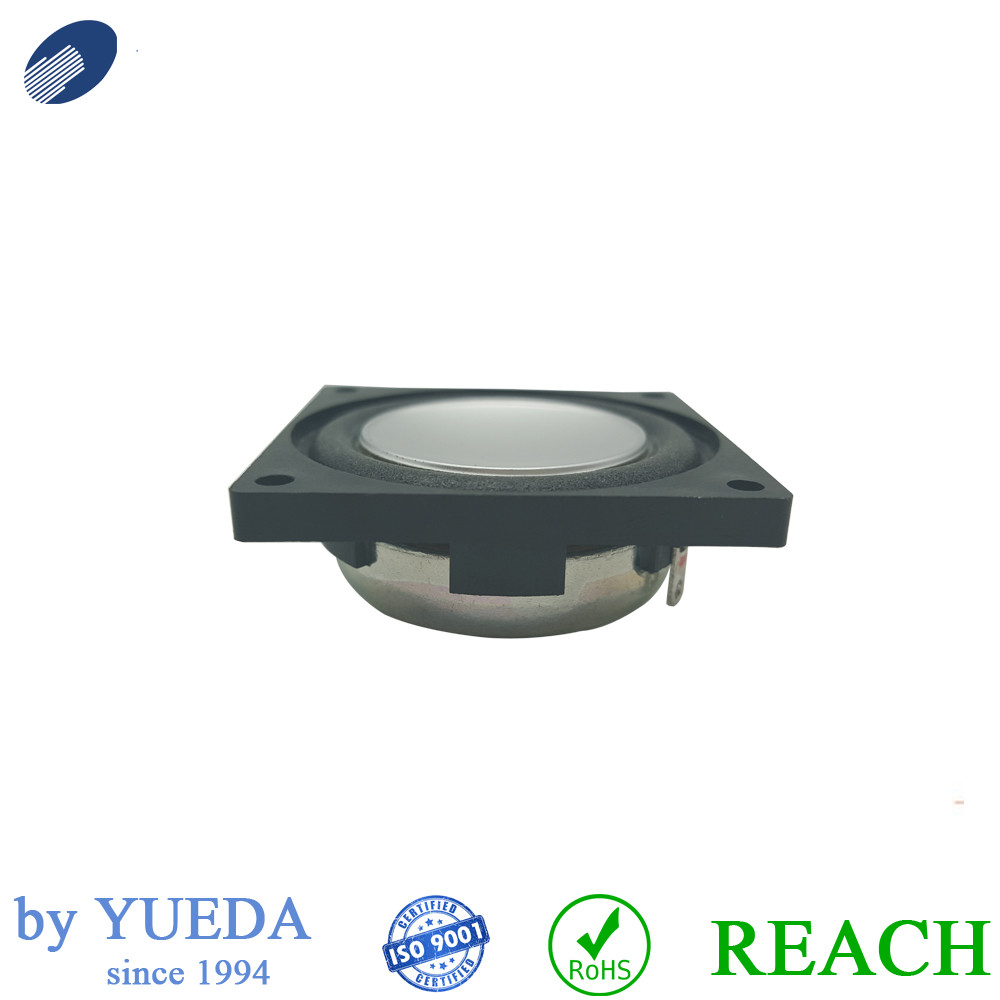

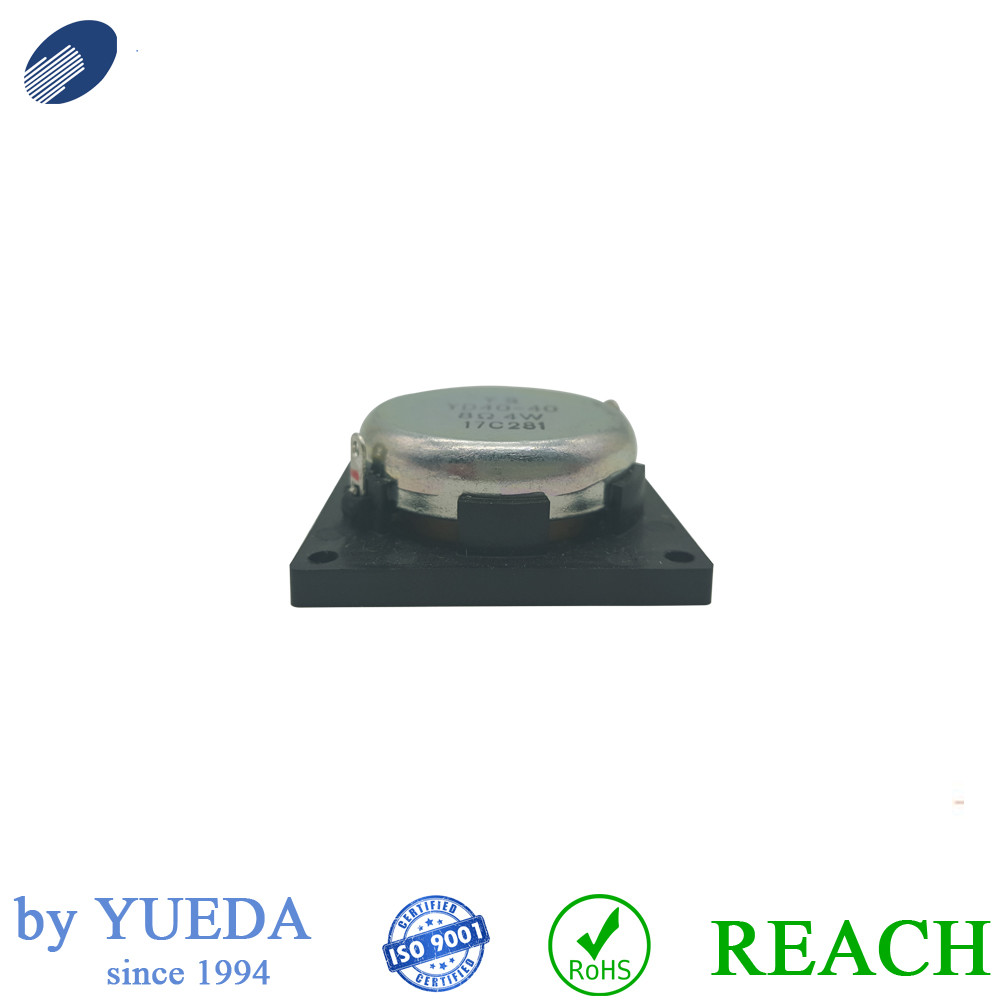

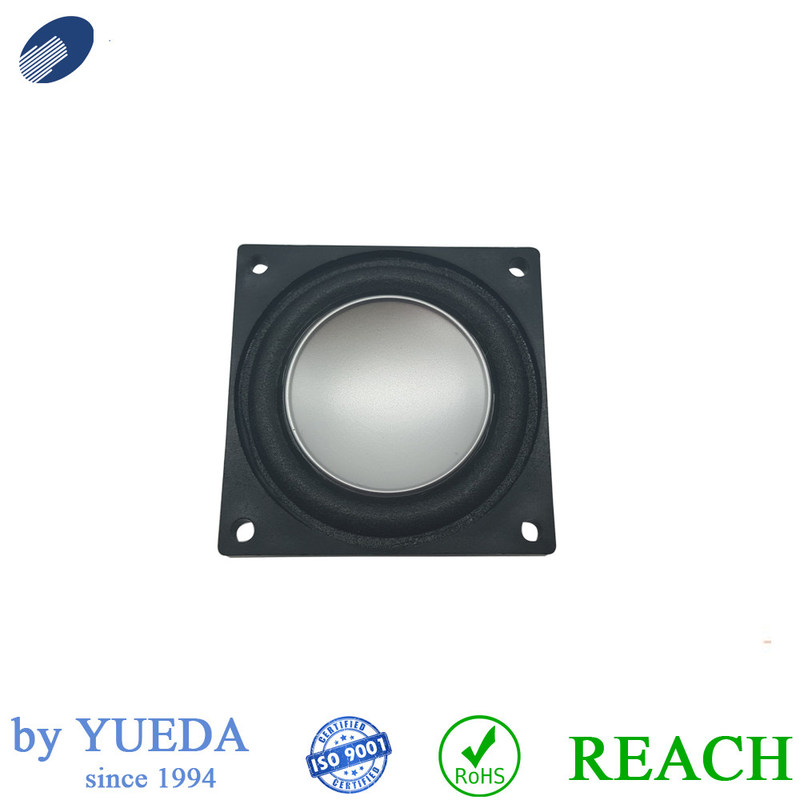

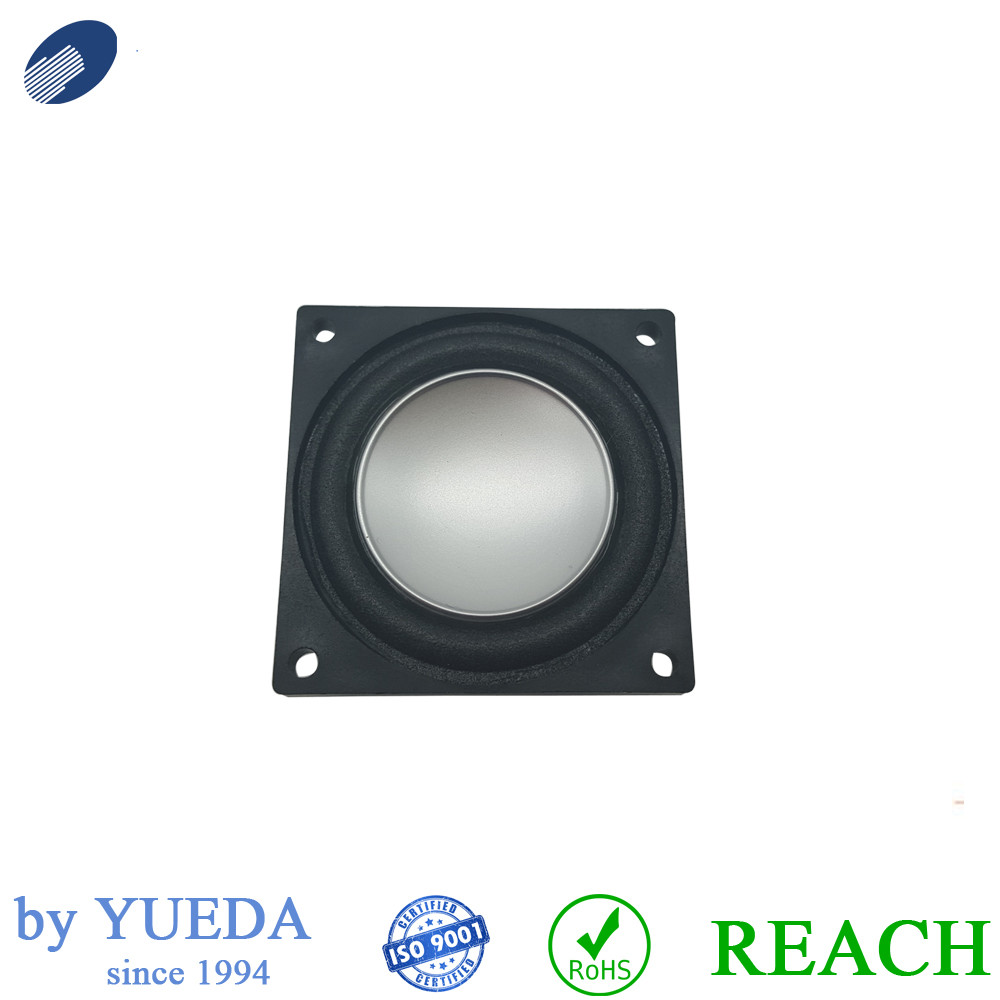

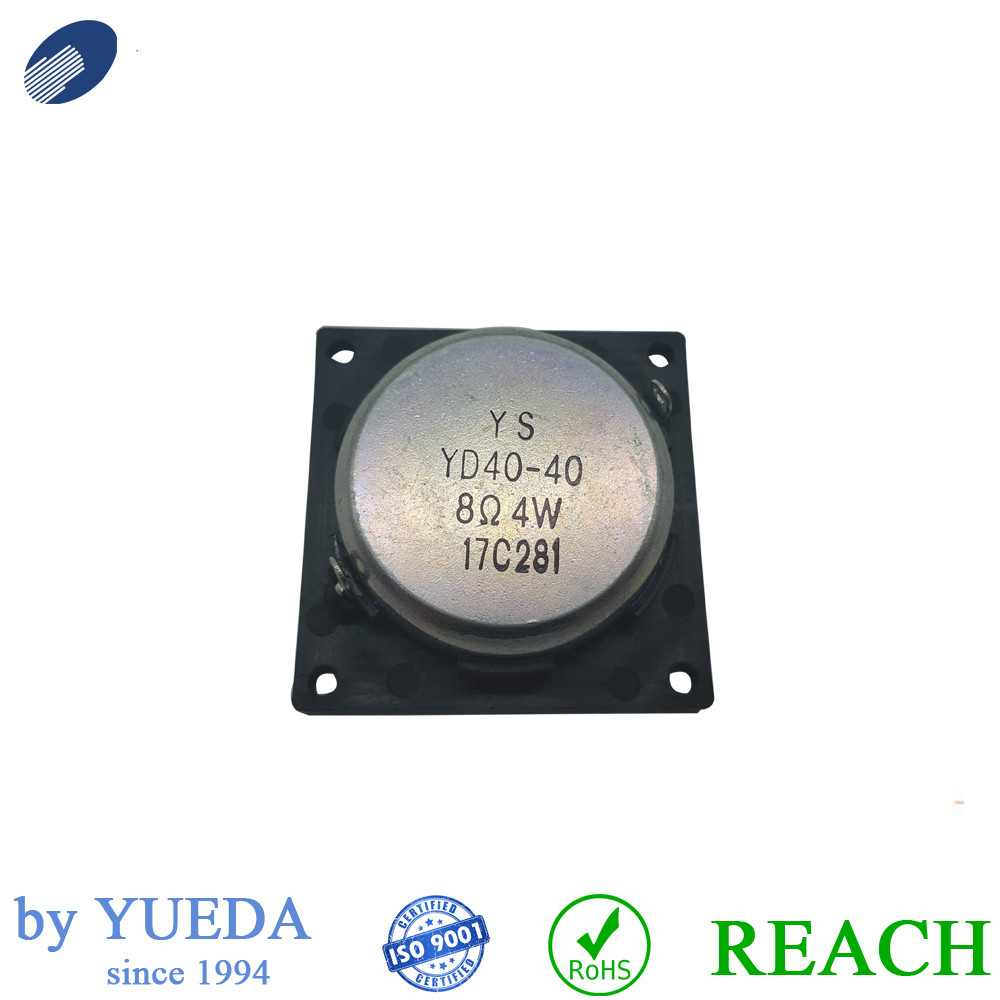

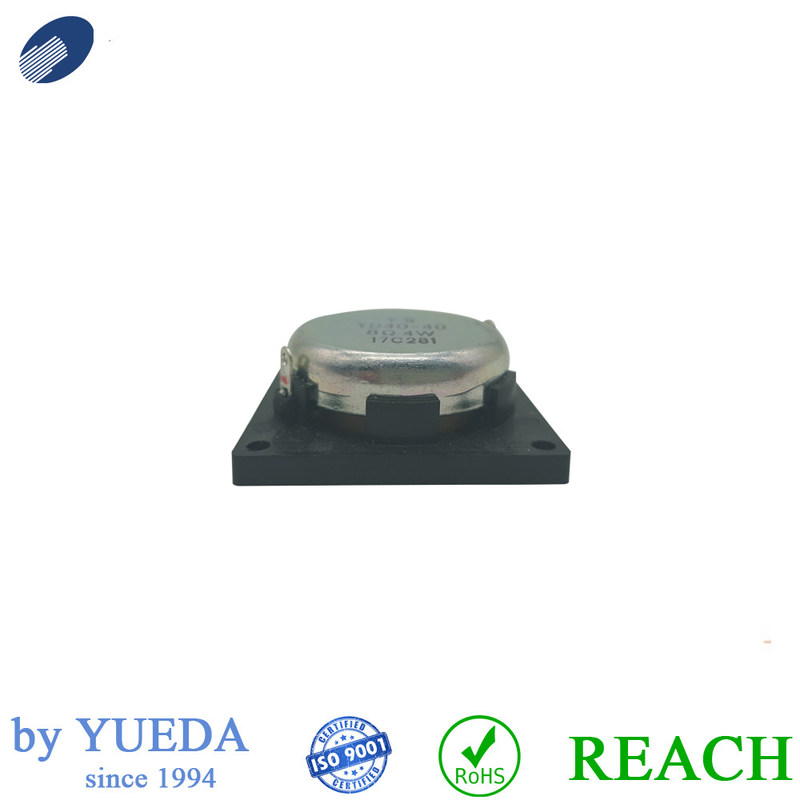

40mm Bluetooth Raw Audio Speakers Small Smart Mini Raw Driver Unit

Basic Information
Place of Origin: China
Brand Name: Yuesonic
Certification: CE ,RoHS,REACH
Model Number: YD40-40
Minimum Order Quantity: 2000pcs
Price: Basicly USD 0.1~1.5
Packaging Details: Neutral packaging/ Customise
Delivery Time: 2~4weeks
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 30000pcs per month
Detail Information
Material: Metal SPL: 84±2dB
Color: Black Plug: Customize
Function: Music Certification: CE,RoHS,REACH
Waterproof: Front Side Waterproof
High Light:

raw subwoofer

,

car woofer speaker


Product Description

40mm bluetooth speaker small smart mini high qualtity CE SGS RoHS raw driver unit



1. Specifications

Sound pressure 84±2(A)AT 1m/1w
VOICE COLL IMP
RESONANT FREQ 400±20% HZ
Temperature -25°C ~ 55°C
RATED POWER 4W
MAX POWER 6W
Weight 48g



2. Description





NO.



ITEM



SPECIFICATION



TESTING CONDITION

1



NOMINAL SIZE

40.1X40.1 MM
2



VOICE COLL IMP

8Ω ±15% AT 1.0KHz 1V
3



RESONANT FREQ

Fo 400±20% HZ AT 1.0V
4



OUTPUT S.P.L

MEAN VALUE

AT0.5, 0.6,0.8,1.0 KHz

84±2dB

AT 0.5m /1w

MEASUREMENT

5



FREQ RESPONSE

fo ~ 10 K Hz   -10dB

-10dB

6



RATED POWER

4.0 W
7



MAX POWER

6.0 W
8



OPEARTION



MUST BE NORMAL

PROGRAM SOURCE 4.0 W
9



NOISE



MUST BE NORMAL

SINE WAVE 5.66 V
10



HEAT TEST

AFTER TEST MEET ITEM 8,9 55± 2℃ 16 HOURS
11



HUMIDITY TEST

AFTER TEST MEET ITEM 8,9

40±2℃

90~95%RH 48 HOURS

12



LOAD TEST

AFTER TEST MEET ITEM 8,9 4.0 W 96 HOURS
13



MAGNET

Ф24X3.5 (N38SH) NdFeB

MATERIAL SIZE


14



TOTAL FLUX

MAX WELL
15



POLARIZATION

When a positive DC current is applied to the terminal marked(+),diaphragm shall move forward


16



NET WEIGHT

48g

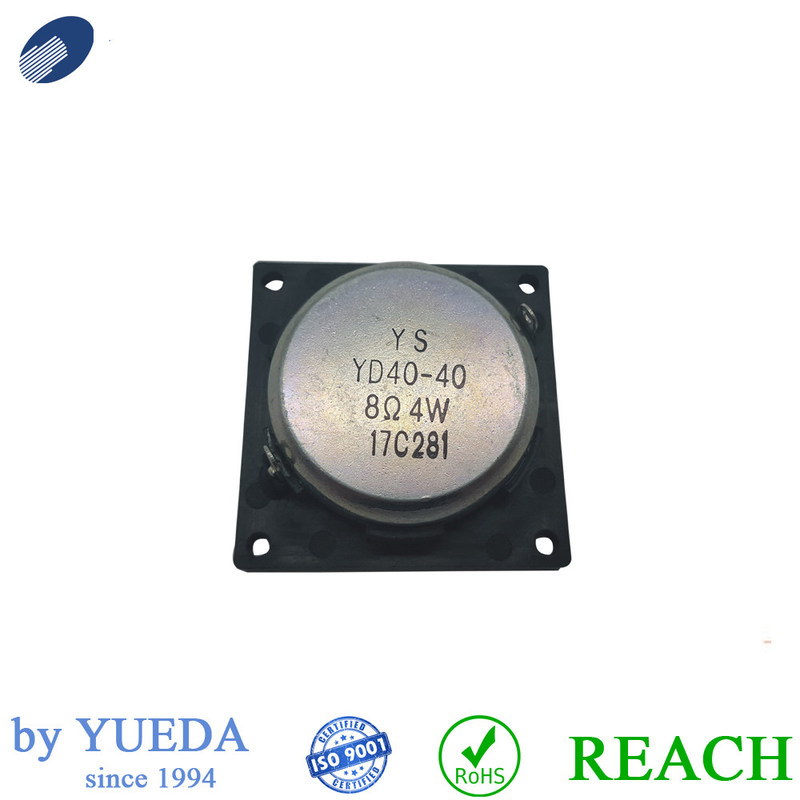

40mm Bluetooth Raw Audio Speakers Small Smart Mini Raw Driver Unit 0

40mm Bluetooth Raw Audio Speakers Small Smart Mini Raw Driver Unit 1

3.Applications

   Speakers are typically housed in a speaker enclosure or speaker cabinet which is often a rectangular square box made of several forms of wood, or sometimes plastic. The enclosure's materials and design play an important role in the quality of the sound. The enclosure generally must be as stiff and non-resonant as practically possible. Where high fidelity reproduction of sound is required, multiple loudspeaker transducers are often mounted in the same enclosure, each reproducing a part of the audible frequency range (picture at right). In this case the individual speakers are referred to as "drivers" and the entire unit is called a loudspeaker. Drivers made for reproducing high audio frequencies are called tweeters, those for middle frequencies are called mid-range drivers, and those for low frequencies are called woofers. Extremely low frequencies (16Hz-~100Hz) may be reproduced by detached subwoofers. Smaller loudspeakers are found in devices such as radios, televisions, portable audio players, computers, and electronic musical instruments. Larger loudspeaker systems are used for music, sound reinforcement in theatres and concert halls, and in public address systems.



4. Competitive Advantage

1). Reinforced nylong housing eliminates corrosion damage

2). Wire/connector/bolt mounting optional, easy to install

3). Voltage polarity protection

4). RoHS compliant, CE certified, SGS



5. Information

Place of Origin: China
Brand Name: Yuesonic
Certification: CE/RoHS/SGS
Model Number: YD40-40



6. Custom properties

Product Name: Speaker Application: Outdoor
Weight: 48g Sound: Music
Material: Metal Power: 4W
Standard: CE/ROHS/SGS Type: Parts



7. Product commercial terms

Minimum Order Quantity: 2000pcs
Price: negotiation
Packaging Details: T/T or western Union
Delivery Time: 3,0000pcs per month
Payment Terms: 14~28 working days after received your payment
Supply Ability: Packed in box firstly,and then reinforced with neutral packaging for outer packing
