| Place of Origin: | China |
|---|---|
| Brand Name: | Yuesonic |
| Certification: | CE ，RoHS，REACH |
| Model Number: | YD40-14E |
| Minimum Order Quantity: | 10000pcs |
| Price: | Basicly USD 0.1~1 |
| Packaging Details: | Neutral packaging/ Customise |
| Delivery Time: | 2~4weeks |
| Payment Terms: | T/T, Western Union,Paypal |
| Supply Ability: | 300000pcsper month |
| Material: | Metal | SPL: | 82±2dB |
|---|---|---|---|
| Color: | Black | Plug: | Customize |
| Function: | Speaker | Certification: | CE |
| Waterproof: | Front Side Waterproof | ||
| High Light: | raw subwoofer,car woofer speaker |
||

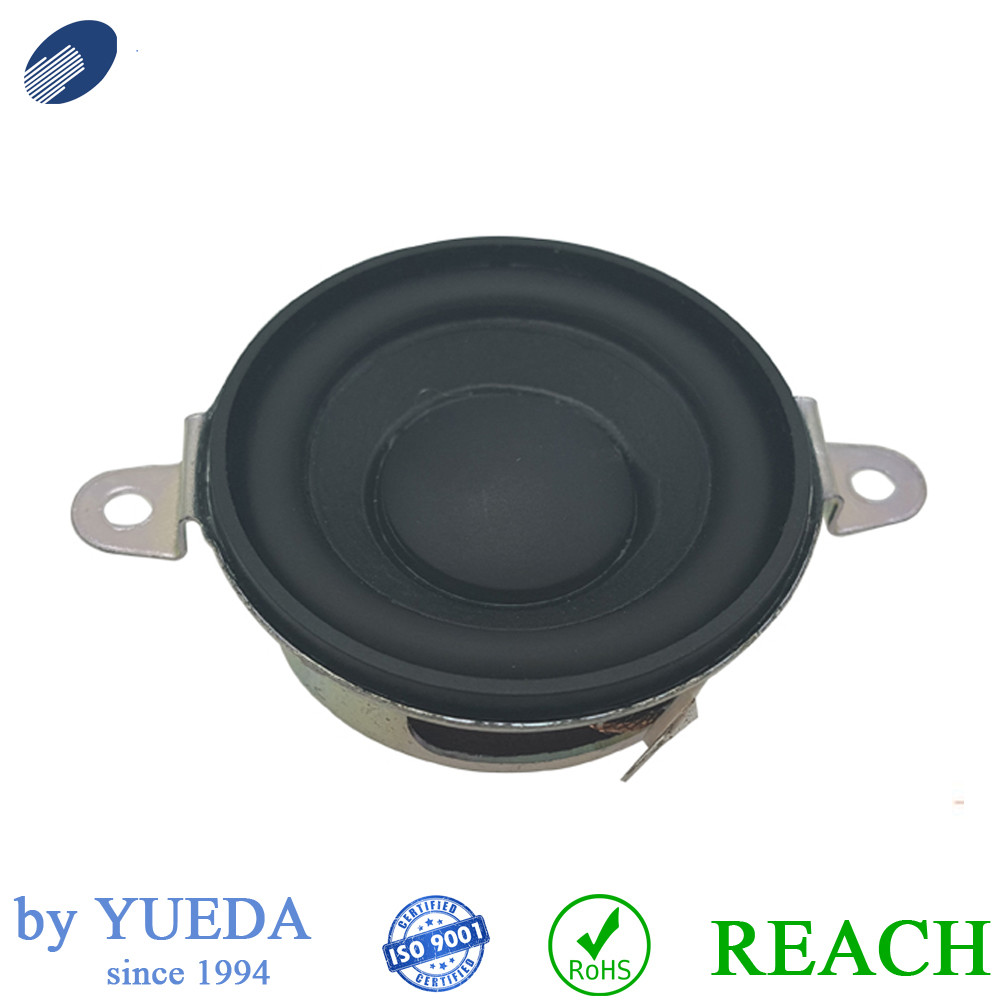

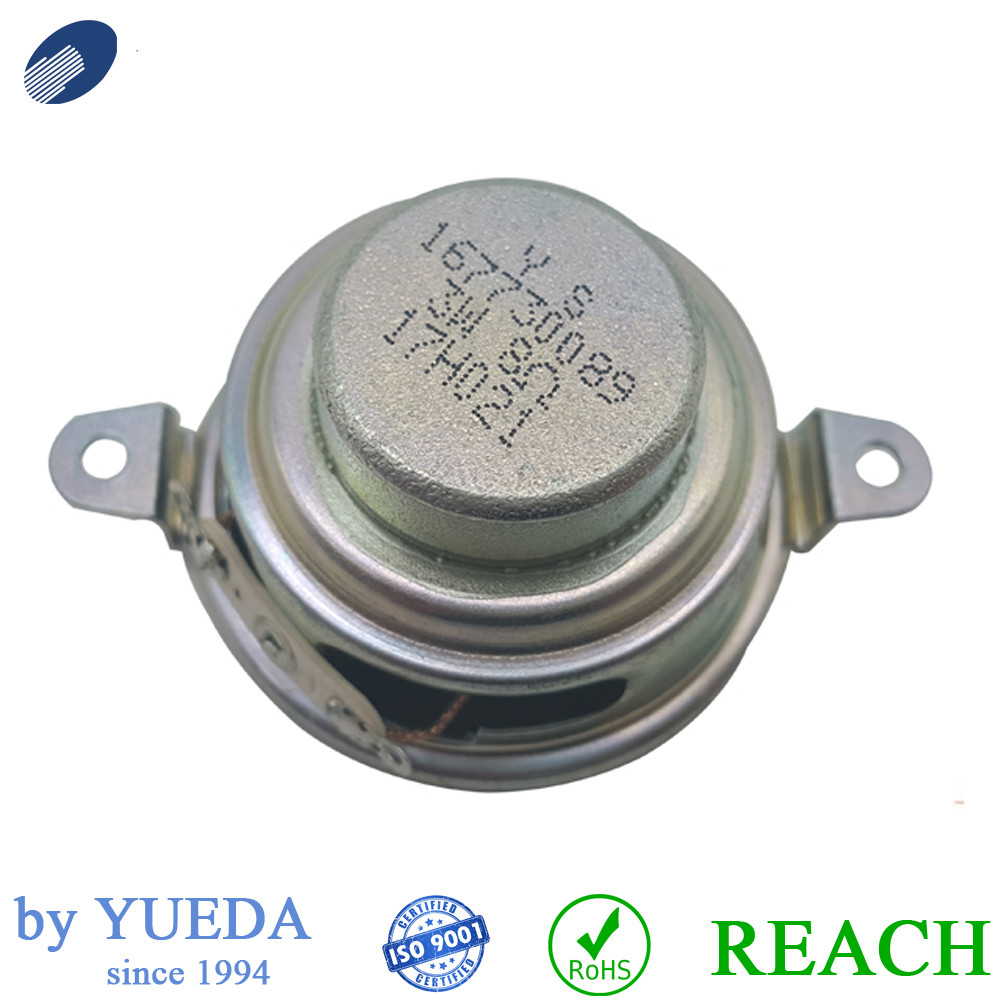

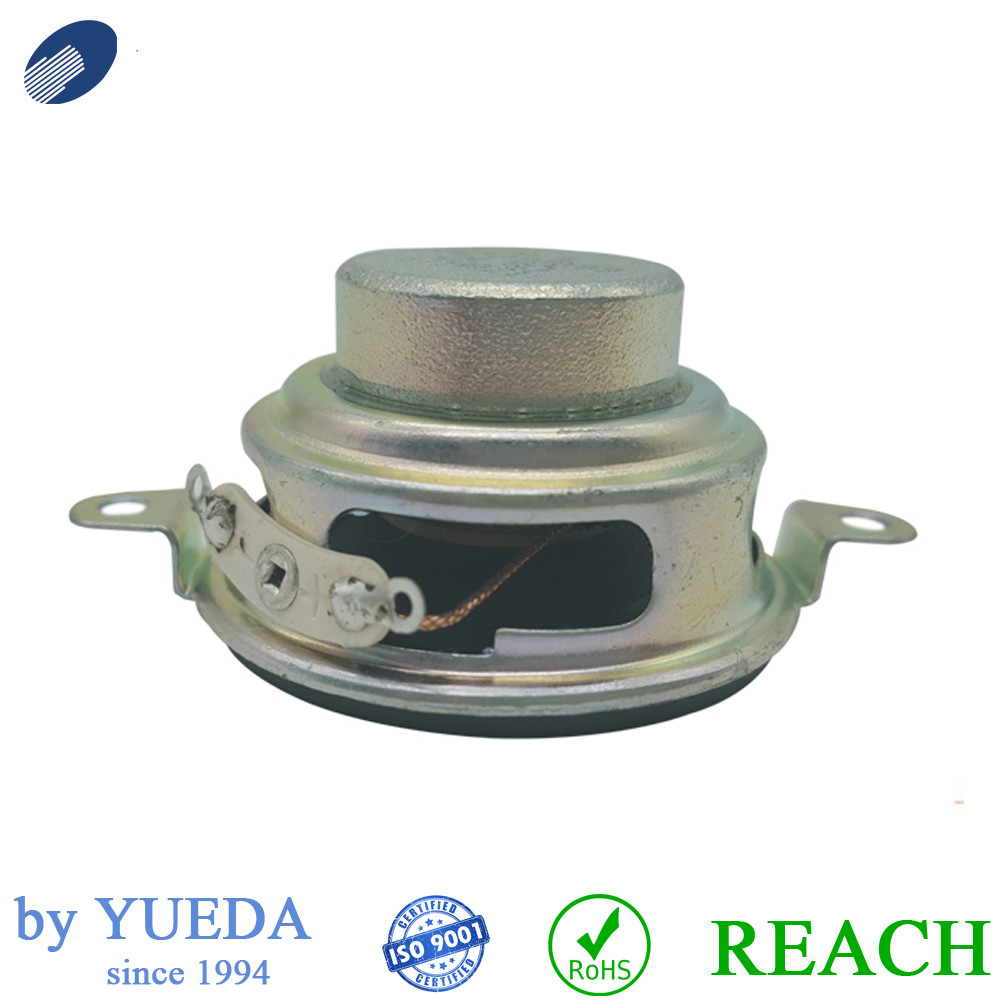

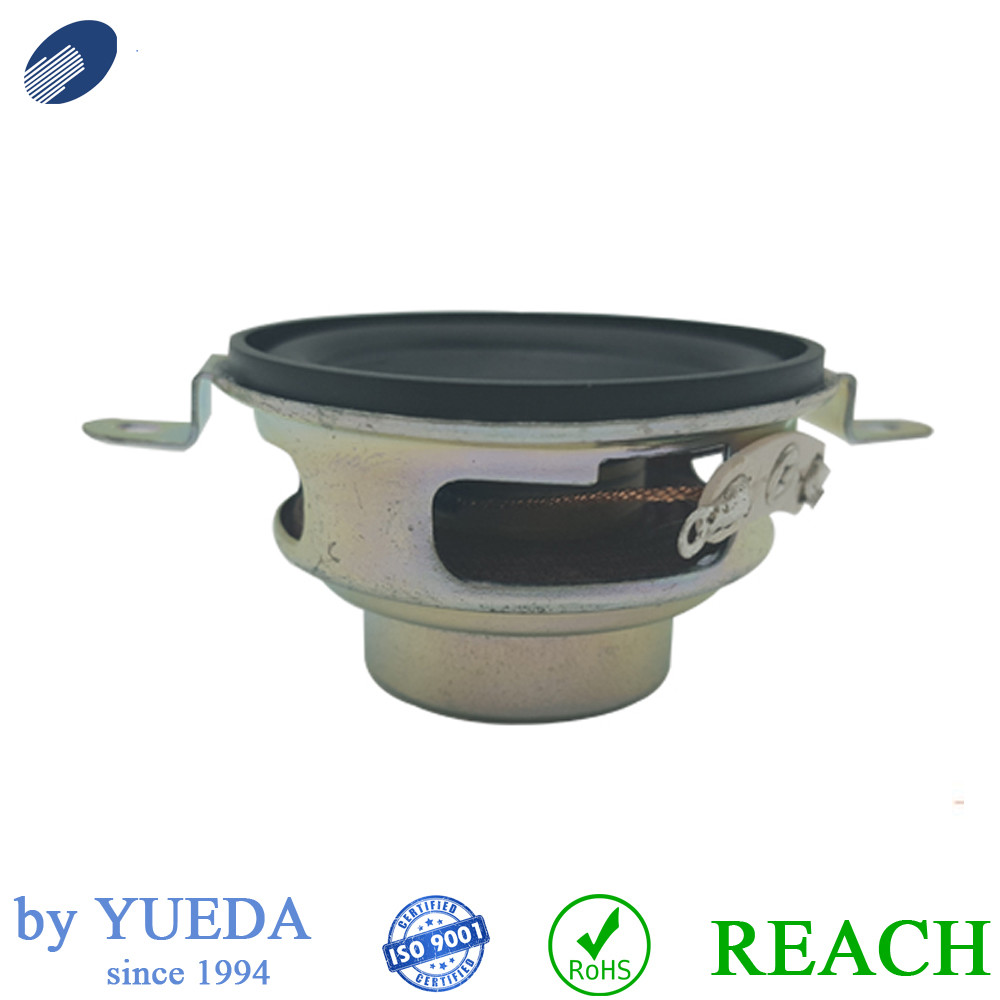

5W 8ohm Mini black music full range media audio HIFI bluetooth micro speaker REACH RoHS driver
1. Specifications
| Sound pressure | 79±2(A)AT 1m/1w |
| VOICE COLL IMP | 8Ω |
| RESONANT FREQ | 230±20% HZ |
| Temperature | -20°C ~ 60°C |
| RATED POWER | 3W |
| MAX POWER | 5W |
| Weight | 28.5g |
2. Description
|
NO. |
ITEM |
SPECIFICATION |
TESTING CONDITION |
| 1 |
NOMINAL SIZE |
φ40 MM | |
| 2 |
VOICE COLL IMP |
8 Ohm ±15% | |
| 3 |
RESONANT FREQ |
fo 230±20% HZ | |
| 4 |
OUTPUT S.P.L |
MEAN VALUE AT1.0,1.2,1.5,2.0 kHz 79±2dB |
AT 1m/1w MEASUREMENT |
| 5 |
FREQ RESPONSE |
fo～20 K Hz -10dB | -10dB |
| 6 |
RATED POWER |
3 W | |
| 7 |
MAX POWER |
5 W | |
| 8 |
OPEARTION |
MUST BE NORMAL |
PROGRAM SOURCE 3 W |
| 9 |
NOISE |
MUST BE NORMAL |
SINE WAVE 4.8 V |
| 10 |
HEAT TEST |
AFTER TEST MEET ITEM 8,9 | 55± 2 16 HOURS |
| 11 |
HUMIDITY TEST |
AFTER TEST MEET ITEM 8,9 |
40±2℃ 90～95%RH 48 HOURS |
| 12 |
LOAD TEST |
AFTER TEST MEET ITEM 8,9 | 3 W 100 HOURS |
| 13 |
POLARIZATION |
When a positive DC current is applied to the terminal marked(+),diaphragm shall move forward |
|
| 14 |
NET WEIGHT |
28.5g | |
| 15 | Stock TEMP | -25℃-+70℃ | |
| 16 | Work TEMP | -20℃-+50℃ |
3. Applications
The term "loudspeaker" may refer to individual transducers (also known as "drivers") or to complete speaker systems consisting of an enclosure including one or more drivers.
To adequately reproduce a wide range of frequencies with even coverage, most loudspeaker systems employ more than one driver, particularly for higher sound pressure level or maximum accuracy. Individual drivers are used to reproduce different frequency ranges. The drivers are named subwoofers (for very low frequencies); woofers (low frequencies); mid-range speakers (middle frequencies); tweeters (high frequencies); and sometimes supertweeters, optimized for the highest audible frequencies. The terms for different speaker drivers differ, depending on the application. In two-way systems there is no mid-range driver, so the task of reproducing the mid-range sounds is divided between the woofer and tweeter. Home stereos use the designation "tweeter" for the high frequency driver, while professional concert systems may designate them as "HF" or "highs". When multiple drivers are used in a system, a "filter network", called a crossover, separates the incoming signal into different frequency ranges and routes them to the appropriate driver. A loudspeaker system with n separate frequency bands is described as "n-way speakers": a two-way system will have a woofer and a tweeter; a three-way system employs a woofer, a mid-range, and a tweeter. Loudspeaker drivers of the type pictured are termed "dynamic" (short for electrodynamic) to distinguish them from earlier drivers (i.e., moving iron speaker), or speakers using piezoelectric or electrostatic systems, or any of several other sorts.
4. Competitive Advantage
5. Information
| Place of Origin: | China |
| Brand Name: | Yuesonic |
| Certification: | CE/RoHS/SGS |
| Model Number: | YD78-1N |
6. Custom properties
| Product Name: | Speaker | Application: | Outdoor |
| Weight: | 257g | Sound: | HIFI |
| Material: | Metal | Power: | 15W |
| Standard: | CE/ROHS/SGS | Type: | Line array |
7. Product commercial terms
| Minimum Order Quantity: | 2000pcs |
| Price: | negotiation |
| Packaging Details: | T/T or western Union |
| Delivery Time: | 3,0000pcs per month |
| Payment Terms: | 14~28 working days after received your payment |
| Supply Ability: | Packed in box firstly,and then reinforced with neutral packaging for outer packing |
